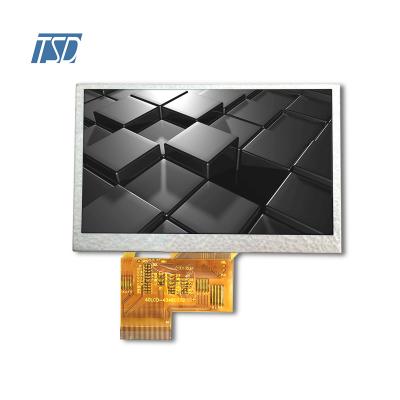

TSD 4.3 inch 480x272 resolution IPS TFT LCD with SPI interface

  • Model Name: TST043WQHS-105
  • LCD Type: 4.3 inch TFT LCD display
  • Resolution: 480x272
  • Viewing angle: All o'clock
  • Brightness: 1000 cd/m2
  • Driver IC: ST7282+LT7680B-R
  • Interface: SPI
  • Touch Screen: without
  • Operating Temperature: -30 ~ +80℃
  • Storage Temperature: -30 ~ +80℃

Description:

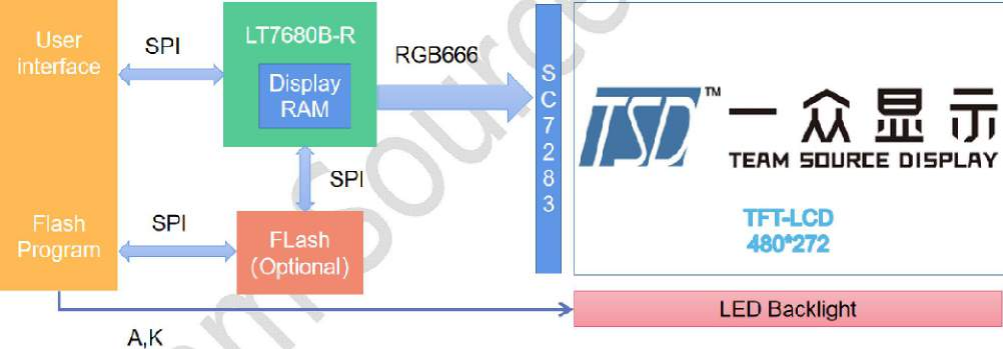

TST043WQHS-105 is 480x272 resolution 4.3 inch lcd display module, coming out with SPI interface. this lcd screen module is with a high-performance TFT-LCD graphics accelerated display chip——LT7680. Its main function is to assist MCU to display the contents of the TFT screen to the TFT Driver. It provides graphics acceleration, PIP (picture-in-picture), geometry graphics and other functions, in addition to enhance the display efficiency, also greatly reduces the MCU processing graphics display time spent. It's also with high brighntess and temperature range.

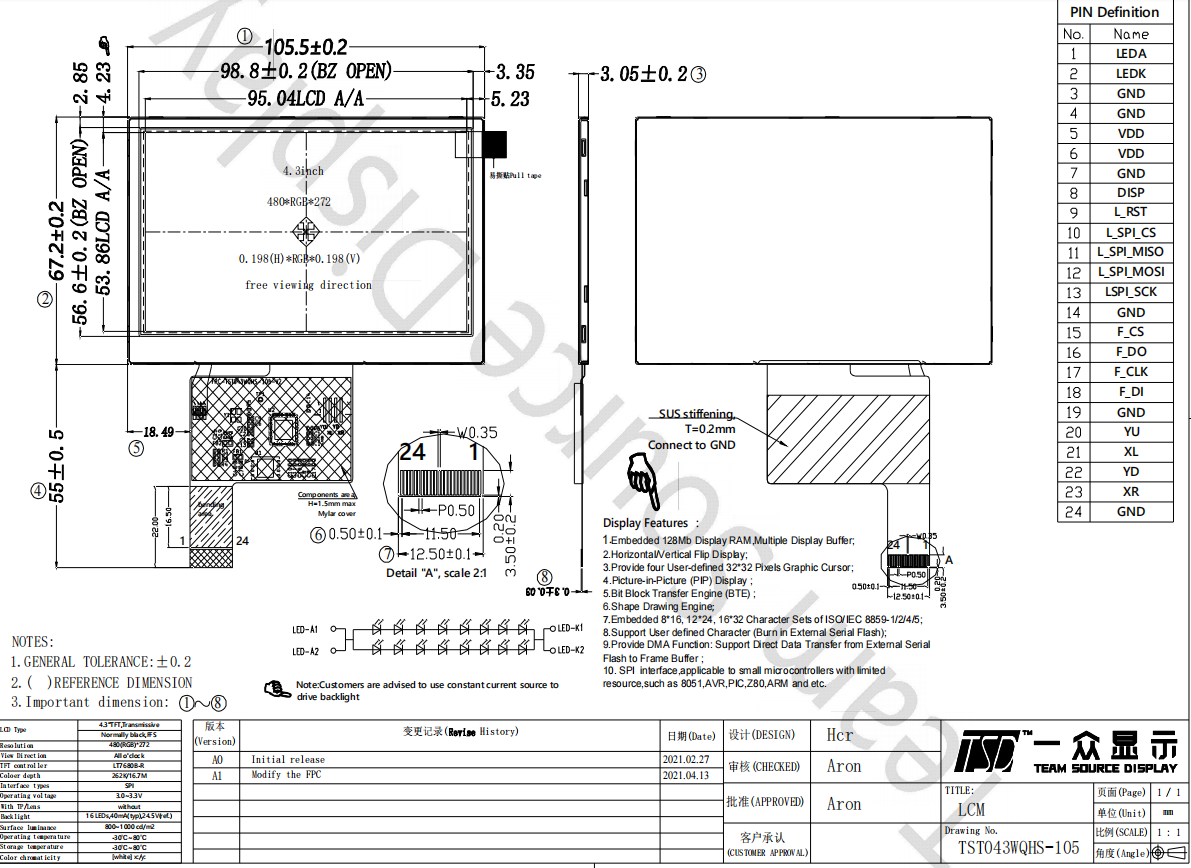

Drawing:



4.3 inch tft display module


Specifications:



General Specification
Part No.  TST043WQHS-105
Outline Dimension(mm)  105.5x67.2x3.05
Active Area(mm) 95.04x53.86
Resolution(dots) 480x272
Operating temperature(°C) -30 ~ +80°C
Storage temperature(°C) -30 ~ +80°C
Number of Pixel(pixels) 480(H)xRGBx272(V)
Touch panel  without
Driver IC ST7282+LT7680B-R
Pixel arrangement RGB-stripe
Display mode Normal black,IPS, 4.3 inch TFT
Surface treatment Antiglare
View direction  All
Weight(g) TBD
Power Consumption(w) Panel TBD(Typ.)
B/L system TBD(Typ.)
Interface SPI
Module lifetime(Hours) 30,000-40,000





Pins Description
Pin No.  Symbol Description
1 LEDA Backlight A Anode input pin
2 LEDK Backlight K Cathode input pin
3 GND Power ground
4 GND Power ground
5 VDD Power supply +3.3V
6 VDD Power supply +3.3V
7 GND Power ground
8 DISP

Standby mode control.(Normally pull high).

DISP="L", enter standby mode for power saving.

Timing controller and source driver will turn off, all outputs are Hi-Z. DISP="H", normal operation.

9 L_RST Reset Signal lnput.This is a active low Reset pin for LT7680.
10 L_SPI_CS Chip select pin for 4-wire serial l/F of the LT7680
11 L_SPI_MISO Data output pin of 4-wire SPI I/F of the LT7680.Connect to MCU's
12 L_SPIMOSI Data input pin of 4-wire SPI I/F of the LT7680.Connect to MCU's
13 L_SPI_SCK SPI Clock input.Clock of 4-wire SPI F of the LT7680
14 GND Power ground
15 F_CS SPl Chip select pin for serial Flash device.(option)
16 F_DO Data output of serial Flash device.(option)
17 F_CLK Serial clock input for serial Flash device.(option)
18 F_DI Data input of serial Flash device.(option)
19 GND System ground
20 YU

The RTP pin (option). No connect

21 XL
22 YD
23 XR
24 GND System ground




Features:



4-wire SPI,support up to 50MHz transmit ;

Ø Embedded 128Mb Display RAM,Support Multiple Display Buffer;

Ø Embedded 8*16, 12*24, 16*32 Character Sets of ISO/IEC 8859-1/2/4/5,and User-defined Characters

Support Half Size & Full Size for 8*16, 12*24 and 16*32(Need External Serial Flash );

Ø Provide DMA Function: Support Direct Data Transfer from External Serial Flash to Frame Buffer;

Ø Provide Smart Drawing Features: Line, Rectangle, Triangle, Polygon, Poly-Line, Circle, Ellipse, Arc,

Rounded-Rectangle and Circle-Rectangle;

Ø Horizontal/Vertical Flip Display , Mirror and Rotation Functions are Available for Image Data Writes;

Ø Bit Block Transfer Engine (BTE);

Ø Other function please refer to LT768x Datasheet and Application Note.







Get A Quote
If you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.
Related products
4.3 inch IPS TFT

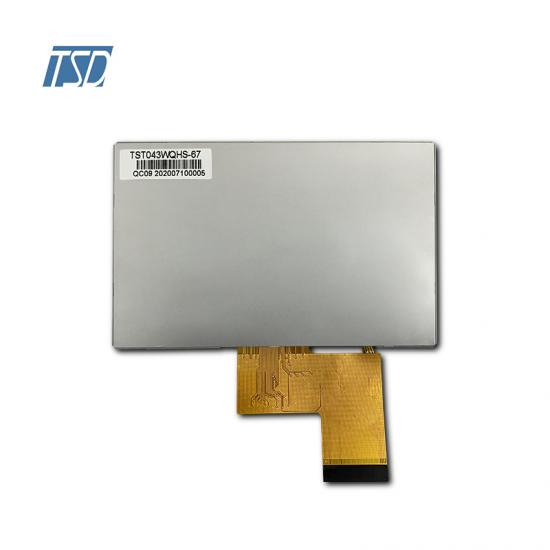

TSD 480x272 resolution 4.3 inch tft lcd module with high brightness
