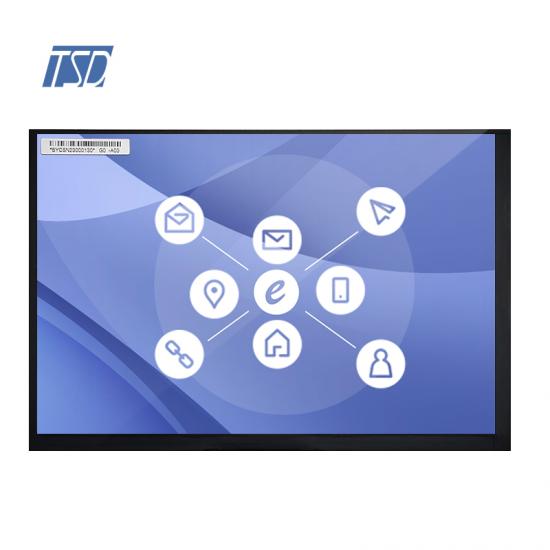

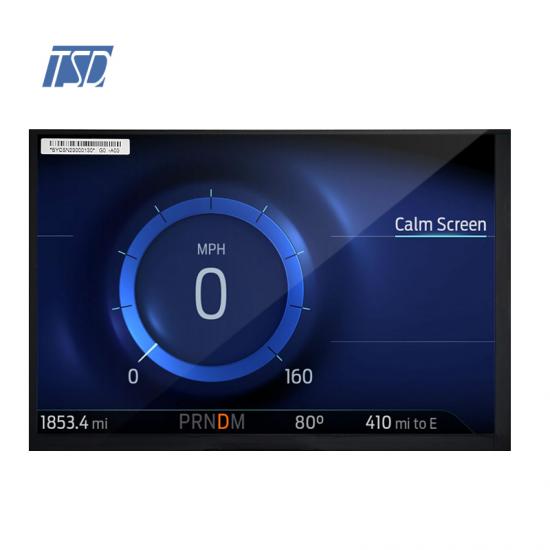

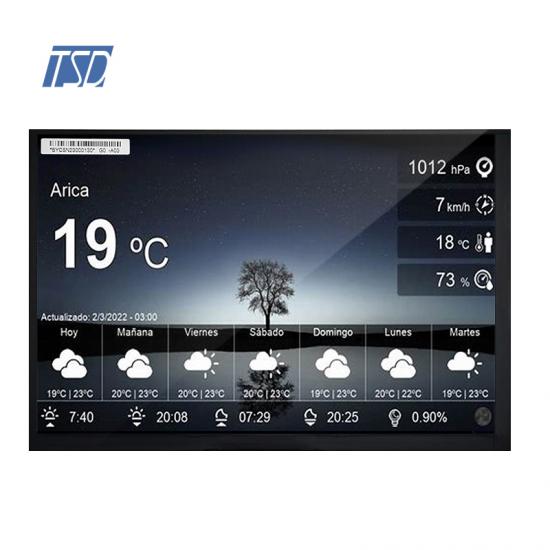

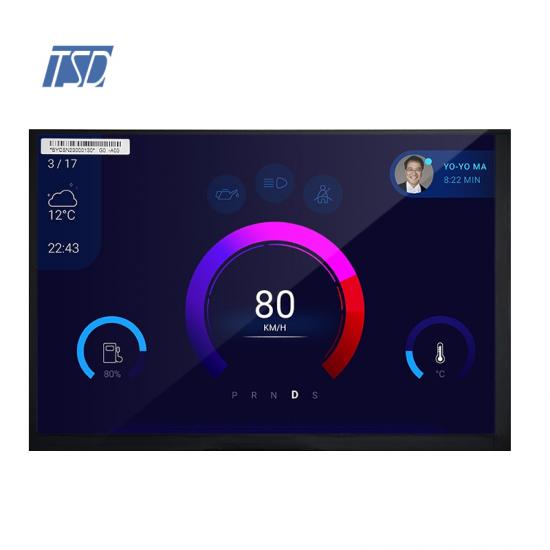

TSD 7 inch TFT LCD 800X480 Screen with LVDS interface for Automotive

  • Model Name: TSM070WVHN-117
  • LCD Type: 7 inch TFT LCD display
  • Resolution: 800x480
  • Viewing angle: All o'clock
  • Brightness: 500 cd/m2
  • Control board: Built-in
  • Interface: LVDS
  • Touch Screen: without, available to add
  • Operating Temperature: -30 ~ +85℃
  • Storage Temperature: -40 ~ +90℃





Description:



TSM070WVHN-117 is 7 inch 800x480 resolution IPS tft lcd display, coming out with 20 pins LVDS interface, VCC common voltage is 3.3V. Color depth is 16.7M. It's IPS display with free viewing angle. Surface luminance is 500 cd/m2, this model is without touch, but available to add our standard touch screen, customized designs are welcome. Operating temperage is -30 to 85 degree, storage temperate is -40 to 90 degree.

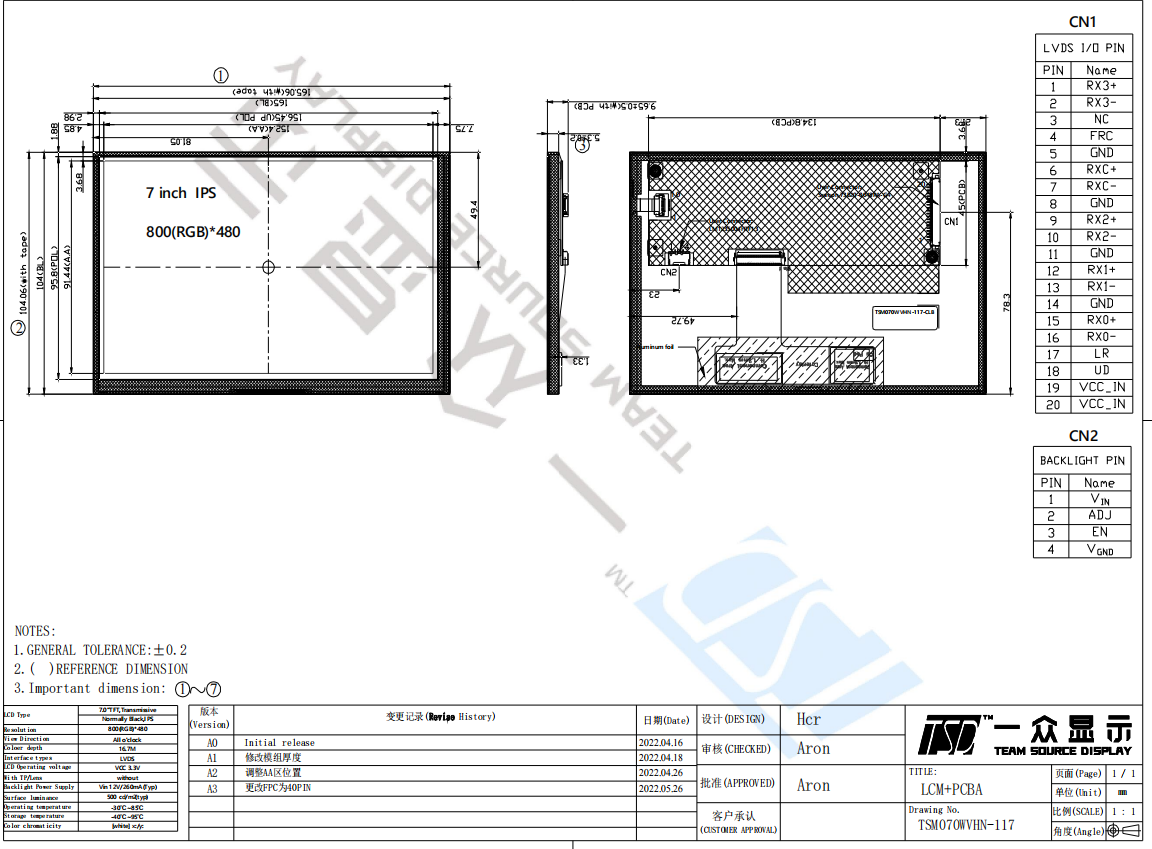

Drawing:



lcd display


Specifications:



General Specification
Part No.  TST070WVHN-117
Outline Dimension(mm)  171x110x9.65
Active Area(mm) 152.4x91.44
Resolution(dots) 800x480
Operating temperature(°C) -30 ~ +85°C
Storage temperature(°C) -40 ~ +90°C
Number of Pixel(pixels) 800(H)xRGBx480(V)
Touch panel  without
Brightness 500 cd/m2
Pixel arrangement RGB-stripe
Display mode Normal black,IPS, 7 inch TFT
Surface treatment Antiglare
View direction  All
Weight(g) TBD
Power Consumption(w) Panel TBD(Typ.)
B/L system TBD(Typ.)
Interface RGB
Module lifetime(Hours) 30,000-40,000





Pins Description
Pin No.  Symbol Description
1 RX3+ LVDS differential data input Pair 3
2 RX3- LVDS differential data input Pair 3
3 NC No connection
4 FRC No connection
5 GND Power ground

6

RXC+ LVDS differential clock input Pair
7 RXC- LVDS differential clock input Pair
8 GND Power ground
9 RX2+ LVDS differential data input Pair 2
10 RX2- LVDS differential data input Pair 2
11 GND Power ground
12 RX1+ LVDS differential data input Pair 1
13 RX1- LVDS differential data input Pair 1
14 GND Power ground
15 RX0+ LVDS differential data input Pair 0
16 RX0- LVDS differential data input Pair 0
17 LR No connection
18 UD No connection
19 VCC_IN Digital power supply (+3.3V)
20 VCC_IN Digital power supply (+3.3V)





Backlight Pins Description
Pin No.  Symbol Description
1 VIN Converter input voltage
2 ADJ Backlight adjustment
3 EN Enable pin
4 VGND Converter ground






Features:



TSD is committed to becoming a leader in smart vehicle displays and solutions. TSD's automotive displays cover products from 3.5 inches to 15 inches, including car center controls, instruments, rearview mirrors, audio-visual entertainment, head-up displays and other series. They feature high contrast, high color gamut, high integration (TDDI), narrow borders, and high Reliability and other characteristics. It has established project cooperation with dozens of domestic and foreign car manufacturers to provide customers with diversified, convenient and fast one-stop services, and is committed to becoming customers' closest partner.

  •
