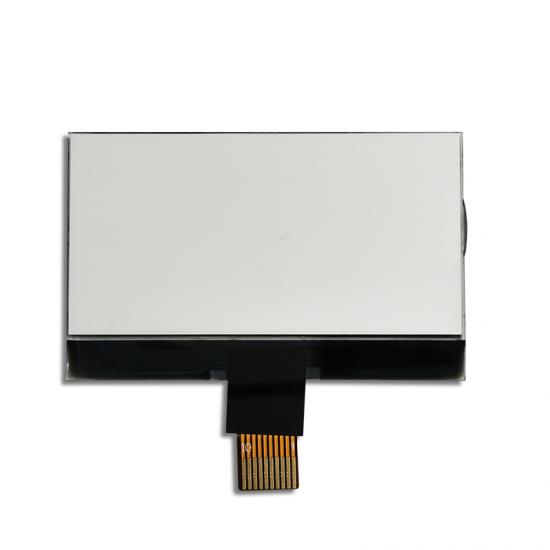

TSD 128x48 dots LCD display with ST7567A controller

  • LCD Type:  FSTN
  • Polarizer type: Reflective
  • Connector Type: Metal Pins
  • Display Mode: Positive
  • The range of operating Temperature: -20~70°C
  • Custom Service Support: LCD Type, Interface, Size, Display Mode



Description:



TSD is a professional LCD manufacturer in China, specializing in TFT LCD, Mono LCD, Touch Panel, OLED Display and E-ink for many years. TSD has developed thousands of OEM&ODM LCD Modules for various fields, including Smart Home Appliances, Industrial, Automotive, Medical, etc.

TSD 128x48 dots LCD display with ST7567A controller:

Custom Process:

Confirm specific requirements  Pay tooling charge → Provide drawing → Confirm drawing → Make tooling & samples → Samples finished → Delivery via freight or sea collect



Lead time for custom LCD:

drawing making:2-5days

tooling and samples: around 3wks

OEM and customization are welcome!




Drawing:


Specifications:



General Specification
Part No.  TSG12848-004A
Outline Dimension(mm)

36x23x2.05mm

Active Area(mm) 32 x 13.9mm
Resolution(dots)  128X48
Operating temperature(°C) -20 ~ +70°C
Storage temperature(°C) -30 ~ +80°C
Number of Pixel(pixels) 128X48
Touch panel  Without
Driver IC ST7567A
Display mode Positive
Surface treatment No
View direction  All
Weight(g) TBD
Power Consumption(w) Panel TBD(Typ.)
B/L system TBD(Typ.)
Interface PIN
Module lifetime(Hours) 50,000-100,000




Applications:



The energy meter, digital meter, oiling machine, crane, and air conditioner are customized for your device.




Product Features:

    1. LCD Type:  FSTN
    2. Polarizer type: Reflective
    3. Connector Type: Metal Pins
    4. Display Mode: Positive
    5. The range of operating Temperature: -20~70°C
    6. Custom Service Support: LCD Type, Interface, Size, Display Mode
