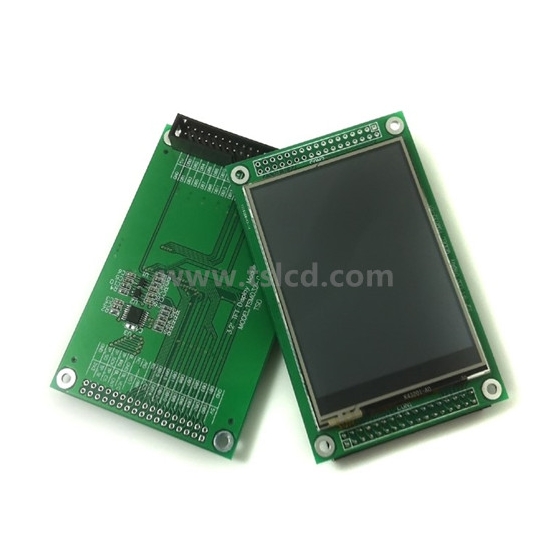

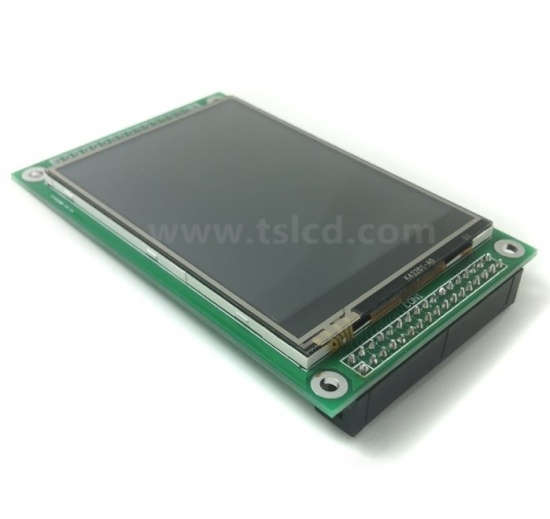

- 3.2 inch, 240 * 320 resolution with TFT touch screen, with a touch controller in it.
- TFT driver is ILI9341, touch panel driver is XPT2046;
- 16bit/ 8bit parallel MCU interface.
- Touch panel with SPI interface. Touch interface included in the 34 pins.
- Compatible with 5V and 3.3V power supply;
- TFT with extremely wide view angle. Support horizontal and vertical display.
- Support 65K-color.
- SMT production machines, the hardware is stable and reliable;
- TFT driver is ILI9341, touch panel driver is XPT2046;
- 16bit/ 8bit parallel MCU interface.
- Touch panel with SPI interface. Touch interface included in the 34 pins.
- Compatible with 5V and 3.3V power supply;
- TFT with extremely wide view angle. Support horizontal and vertical display.
- Support 65K-color.
- SMT production machines, the hardware is stable and reliable;
| Specification | |
| LCD type | 3.2 inch TFT,Transmissive |
| Display type | 3.2 inch TFT, 262k color, normal white |
| Description | 3.2 inch tft lcd ili9341 with touch panel |
| Driver element | a-si TFT Active matrix |
| Outline Dimension(mm) | 55.04x77.7x4.45 (with touch panel) |
| A.A.(mm) | 48.6x64.8 |
| Driver IC | ILI9341 |
| Resolution | QVGA 240*RGB*320 |
| Viewing Direction | 12H |
| Operating temperature(°C) | -20-70 |
| Storage temperature(°C) | -30-80 |
| Operating Voltage | 2.8v |
| Pixel arrangement | RGB Vertical Stripe |
| Display mode | Normally white |
| Surface treatment | Antiglare, Hard-Coating(3H) |
| Weight(g) | TBD |
| Backlight | 5 LEDs, White |
| Weight(g) | TBD |
