| Specification | |

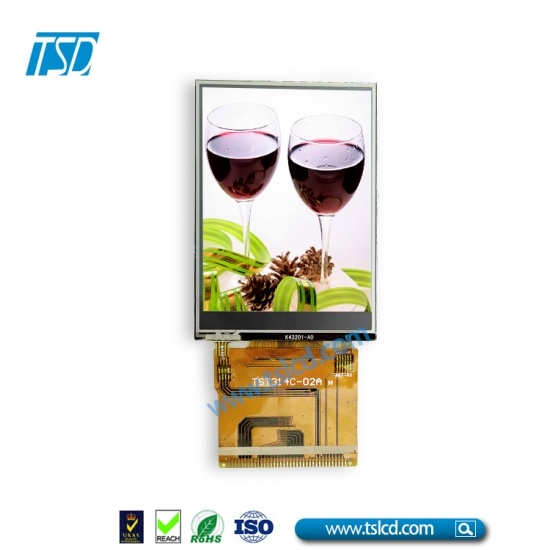

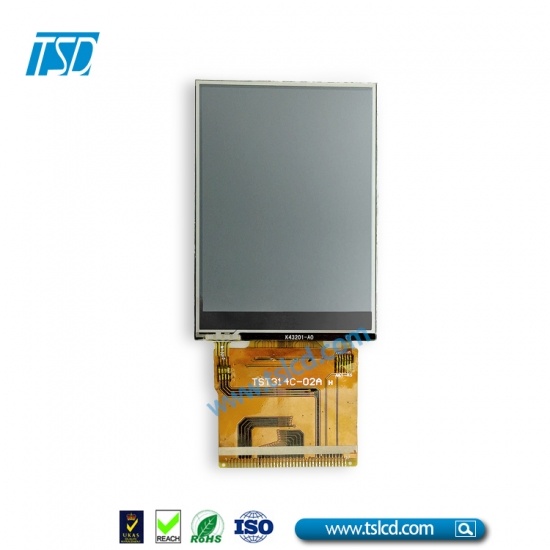

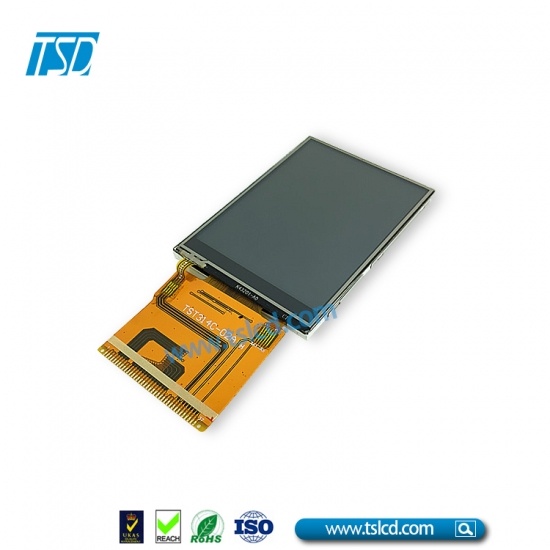

| LCD type | 3.2 inch TFT,Transmissive |
| Display type | 3.2 inch TFT, 262k color, normal white |
| Description |
3.2 inch tft lcd |
| Driver element | a-si TFT Active matrix |
| Outline Dimension(mm) | 55.04x77.7x3.65 |
| A.A.(mm) | 47.87*63.84 |
| Driver IC | ST7789V |
| Resolution | QVGA 240*RGB*320 |
| Viewing Direction | 6H |
| Operating temperature(°C) | -20-70 |
| Storage temperature(°C) | -30-80 |
| Operating Voltage | 2.8v |
| Pixel arrangement | RGB Vertical Stripe |
| Display mode | Normally white |
| Surface treatment | Antiglare, Hard-Coating(3H) |
| Weight(g) | TBD |
| Backlight | 6 LEDs, White |
| Weight(g) | TBD |
| Interface |
MCU 16 bits |
| Touch panel |
without |
| Module lifetime(Hours) | 50,000-100,000 |
