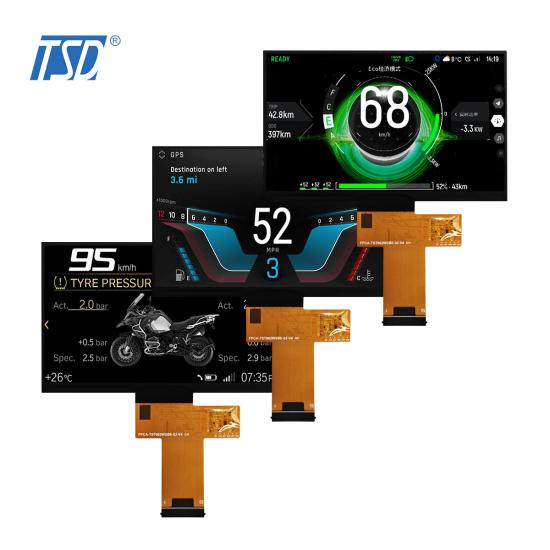

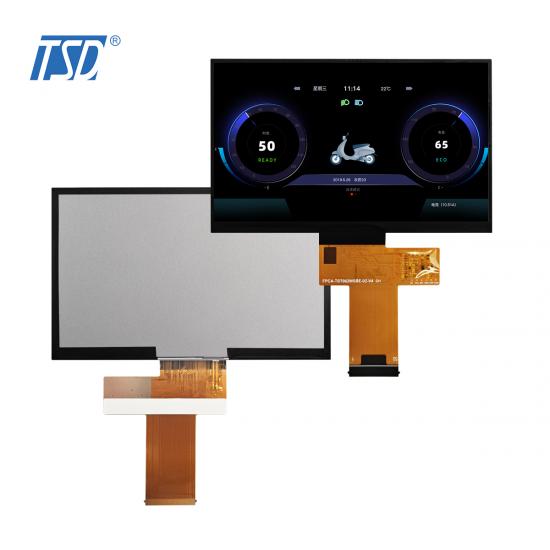

TSD 6.2 inch 1024x600 resolution tft lcd display module with RGB interface

  • Model Name: TST062WSBE-02
  • LCD Type: 6.2 inch TFT LCD display
  • Resolution: 1024x600
  • Viewing angle: All o'clock
  • Brightness: 1100 cd/m2
  • Display color: 262K
  • Interface: RGB
  • Touch Screen: customization is supported
  • Operating Temperature: -30 ~ +80℃
  • Storage Temperature: -30 ~ +80℃





Description:



TST062WSBE-02 model is a 6.2 inch TFT LCD display module with RGB interface. This module supports 1024x600 resolution and displays 262K colors, it's IPS display with full o'clock viewing angle. Power voltage is 3.3V typically. Operating temperature is -30 to 80°C, storage temperature is -30 to 80°C, it's widely using for automotive applications.




Drawing:



6.2 inch LCD


Specifications:



General Specification
Part No.  TST062WSBE-02
Outline Dimension(mm)  144.27x88.1x4.93
Active Area(mm) 137.47x77.23
Resolution(dots) 1024x600
Operating temperature(°C) -30 ~ +80°C
Storage temperature(°C) -30 ~ +80°C
Number of Pixel(pixels) 1024(H)xRGBx600(V)
Touch panel  without
Display color 262K
Pixel arrangement RGB-stripe
Display mode Normal black,IPS 6.2 inch TFT
Surface treatment Antiglare
View direction  All
Weight(g) TBD
Power Consumption(w) Panel TBD(Typ.)
B/L system TBD(Typ.)
Interface RGB
Module lifetime(Hours) 30,000-40,000





Pins Description
Pin No.  Symbol Description
1 VLED+ Power for LED backlight (Anode)
2 VLED+ Power for LED backlight (Anode)
3 VLED- Power for LED backlight (Cathode)
4 VLED- Power for LED backlight (Cathode)
5 GND Power ground

6

VCOM Common voltage
7 DVDD Power for Digital Circuit
8 MODE DE/SYNC model select
9 DE Data input enable
10 VS Vertical Sync input
11 HS Horizaontal Sync Input
12~19 B7~B0 Blue Data
20~27 G7~G0 Green Data
28~35 R7~R0 Red Data
36 GND Power ground
37 DCLK Sample clock
38 GND Power ground
39 L/R Left / right selection
40 U/D Up / down selection
41 VGH Gate ON voltage
42 VGL Gate OFF voltage
43 AVDD Power for Analog Circuit
44 RESET Global reset pin
45 NC No connection
46 VCOM Common voltage
47 DITHB Dithering function
48 GND Power ground
49 NC No connection
50 NC No connection




Features:



  • - High contrast ratio
  • - Fast response time
  • - 1024x 600 resolution
  • - Wide operating temperature
  • - DE(Data Enable) mode and DE+SYNC mode
  • - RGB interface
  • - Reversible scan direction
  • - RoHS Compliance
