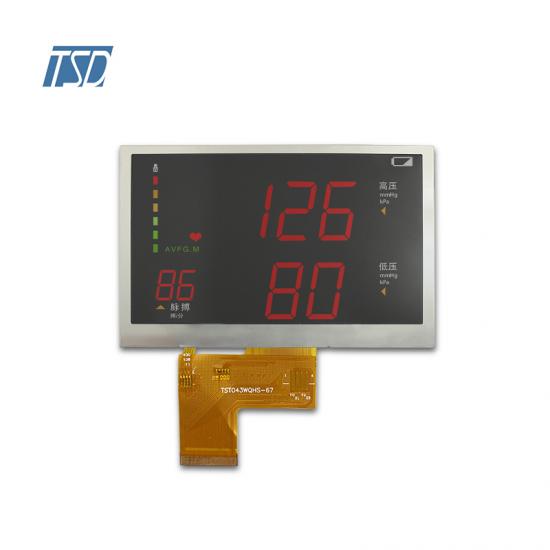

TSD 480x272 resolution 4.3 inch tft lcd module with high brightness

  • Model Name: TST043WQHS-67B
  • LCD Type: 4.3 inch TFT LCD display
  • Resolution: 480x272
  • Viewing angle: All o'clock
  • Brightness: 1000 cd/m2
  • Driver IC: ST7282
  • Interface: RGB
  • Touch Screen: without
  • Operating Temperature: -30 ~ +80℃
  • Storage Temperature: -30 ~ +80℃

Description:



TST043WQHS-67B is 480x272 resolution IPS LCD display with automotive grade, LCD size is 4.3 inch TFT LCD, outline dimension is 105.5x67.2x3.05mm, bezel opening size is 97.34x56.16mm, LCD active area is 95.04x53.86mm. It's IPS glass with free viewing direction, driver IC is SC7283, backlight LEDs is 16pcs, white color. Surface luminance is max 1000 cd/m2, suitable for outdoor applications and control panel vehicles.

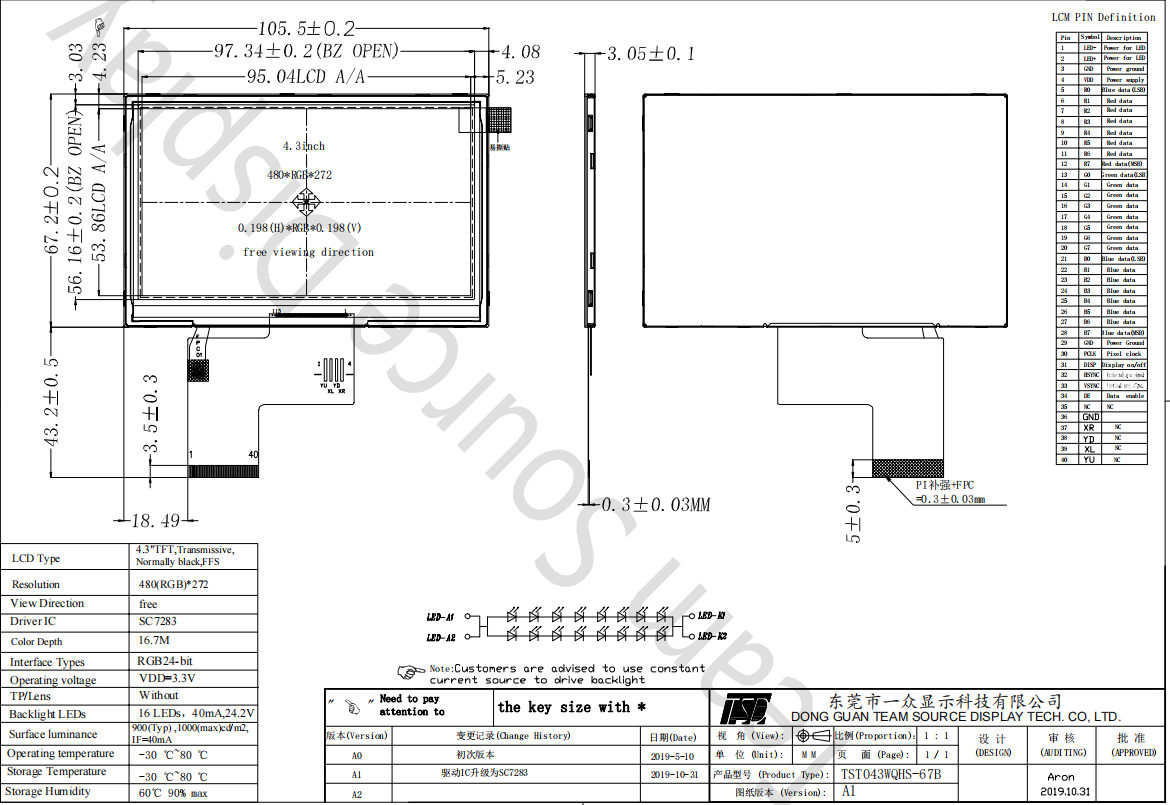

Drawing:



4.3 inch lcd display


Specifications:



General Specification
Part No.  TST043WQHS-67B
Outline Dimension(mm)  105.5x67.2x3.05
Active Area(mm) 95.04x53.86
Resolution(dots) 480x272
Operating temperature(°C) -30 ~ +80°C
Storage temperature(°C) -30 ~ +80°C
Number of Pixel(pixels) 480(H)xRGBx272(V)
Touch panel  without
Driver IC SC7283
Pixel arrangement RGB-stripe
Display mode Normal black,IPS, 4.3 inch TFT
Surface treatment Antiglare
View direction  All
Weight(g) TBD
Power Consumption(w) Panel TBD(Typ.)
B/L system TBD(Typ.)
Interface RGB
Module lifetime(Hours) 30,000-40,000





Pins Description
Pin No.  Symbol Description
1 LED- Cathode of LED backlight
2 LED+ Aothod of LED backlight
3 GND Power ground
4 VDD Power voltage
5~12 R0~R7 Red data
13~20 G0~G7 Green data
21~28 B0~B7 Blue data
29 GND Power ground
30 DCLK Pixel clock
31 DISP Display on/off
32 HSYN Horizontal sync signal
33 VSYNC Vertical sync signal
34 DE Data enable
35 NC No connect
36 GND Power ground
37 NC No connect
38 NC No connect
39 NC No connect
40 NC No connect




Applications:
