Description:

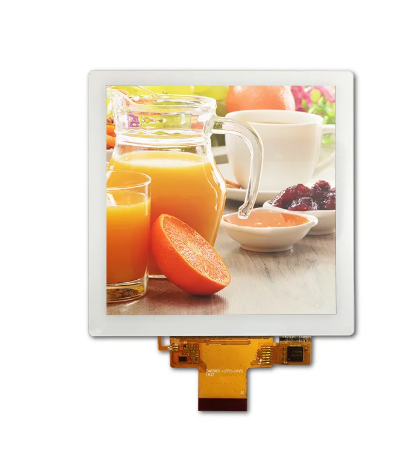

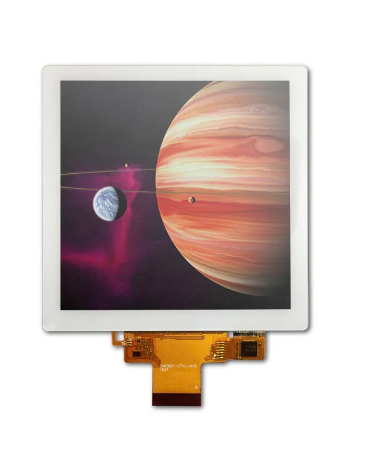

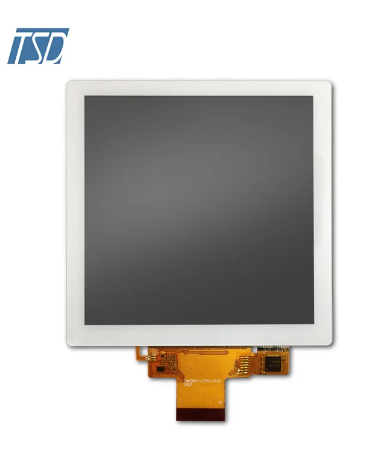

This display module is a transmissive type color active matrix TFT(Thin Film Transistor) liquid crystal display (LCD) . This module is composed of a TFT LCD module, a driver circuit, and a back-light unit.The resolution of a 4.0”contains 720*720 dots and the Active area is 71.93x71.93

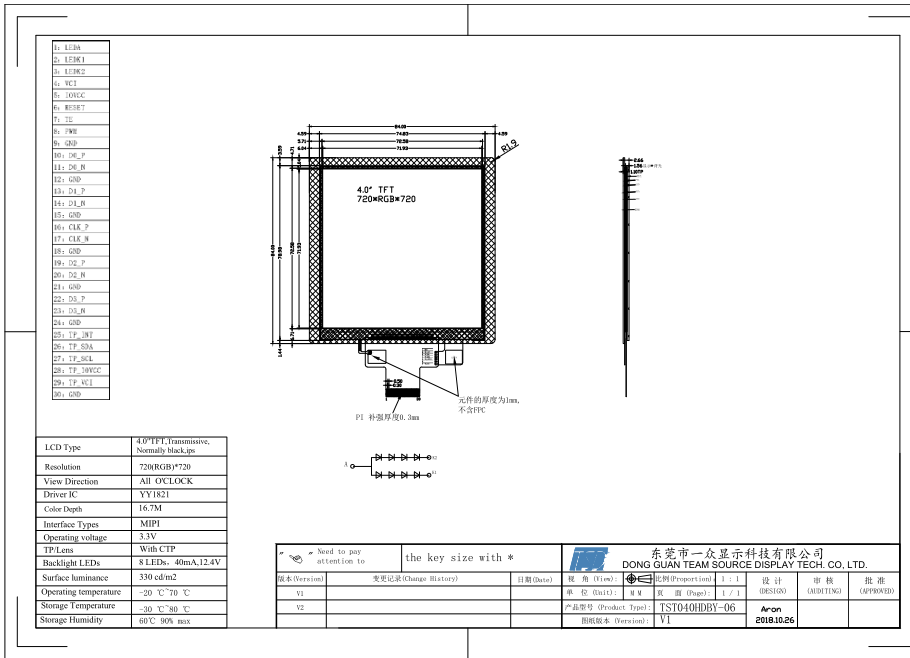

Drawing:
Specification
|
General Specification |
||
|
Part No. |
TST040HDBY-06C |
|
|
Display Size(Diagonal) |
4.0 inch |
|
|
LCD type |
IPS / Transmissive / Normally Black |
|
|
Resolution |
720RGB x 720 |
|
|
View Direction |
All |
|
|
Module Outline |
84.0(H) ×84.0(V)×2.6(T) |
|
|
Active Area |
35.04 (L) x28.03 (W) |
|
|
Viewing Area |
6 o’clock |
|
|
TP Active Area |
34.57(H)x81.6(V) |
|
|
Display Colors |
262K |
|
|
Interface |
4-LINE MIPI |
|
|
Weight(g) |
TBD |
|
|
Power Consumption(w) |
Panel |
TBD(Typ.) |
|
B/L system |
TBD(Typ.) |
|
|
Operating Temperature |
-20～70 |
|
|
Storage Temperature |
-30～80 |
|
|
Pins Description |
||
|
Pin No. |
Symbol |
Description |
|
1 |
LEDA |
LED ANODE |
|
2 |
LED K1 |
LED CATHODE |
|
3 |
LED K2 |
LED CATHODE |
|
4 |
VCI |
Power supply |
|
5 |
IOVCC |
Logic power supply |
|
6 |
RESET |
This signal will reset the device and it must be applied to properly initialize the chip. |
|
7 |
TE |
Tearing effect |
|
8 |
PWM |
LCD backlight control PWM |
|
9 |
GND |
Ground |
|
10 |
D0P |
MIPI DSI differential data pair(lane 0) |
|
11 |
D0N |
MIPI DSI differential data pair(lane 0) |
|
12 |
GND |
Ground |
|
13 |
D1P |
MIPI DSI differential data pair(lane 1) |
|
14 |
D0P |
Backlight K Cathode input pin. |
|
15 |
GND |
MIPI DSI differential data pair(lane 1) |
|
16 |
CLKP |
MIPI DSI differential clock pair |
|
17 |
CLKN |
MIPI DSI differential clock pair |
|
18 |
GND |
Ground |
|
19 |
D2P |
MIPI DSI differential data pair(lane 2) |
|
20 |
D2N |
MIPI DSI differential data pair(lane 2) |
|
21 |
GND |
Ground |
|
22 |
D3P |
MIPI DSI differential data pair(lane 3) |
|
23 |
D3N |
MIPI DSI differential data pair(lane 3) |
|
24 |
GND |
Ground |
|
25 |
TP-INT |
Touch Interrupt |
|
26 |
TP-SDA |
Touch IIC data signal |
|
27 |
TP-SCL |
Touch IIC clock signal |
|
28 |
TP-RESET |
Touch reset signal |
|
29 |
TP-VCI |
Touch power supply |
|
30 |
GND |
Ground |
Applications:
1. Office Electronic Equipment: money counting machine, office phone set, copying mechine.
2. Household Appliances: refrigerator, air conditioner, induction cooker, microwave ovens.
3. Instruments: clinical thermometer, wire tester, digital watches, electronic weight scale.
4. Medical Devices: sphygmomanometer, ECG machine
5. Sports Equipment: Running machine.
6. Industrial Control Equipment: remote control, punched-card machine.
7. Information Terminal Display: POS, PDA, Handheld devices.
