Description:

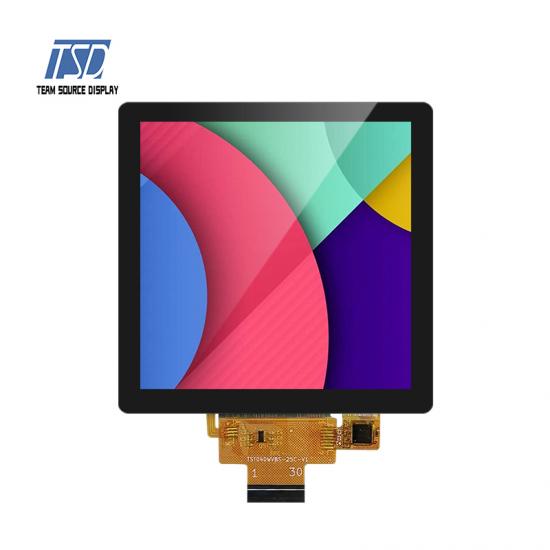

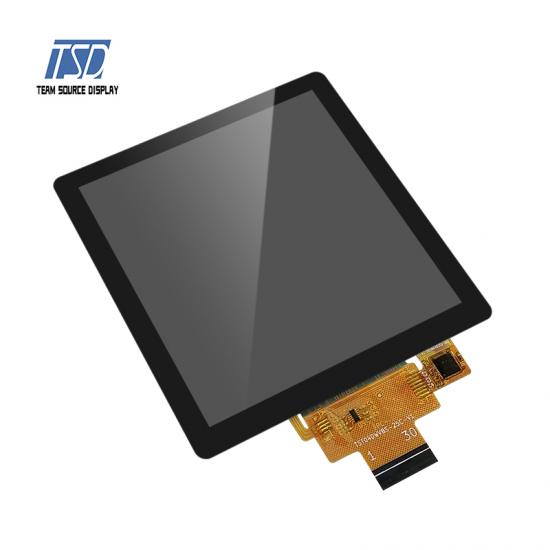

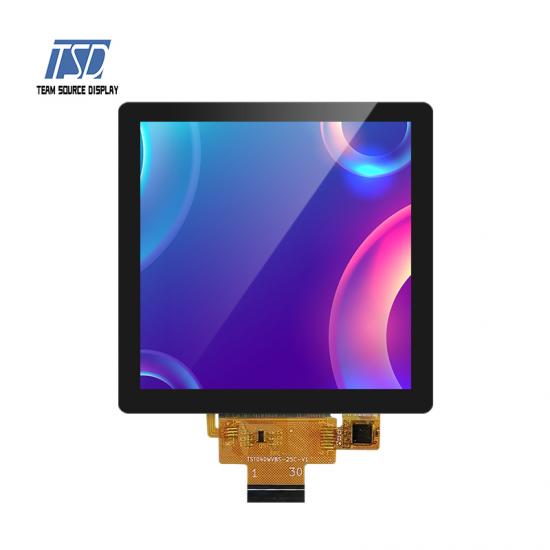

TST040WVBS-34C is a color active matrix TFT-LCD Panel using amorphous silicon TFT's as an active switching devices. this model is composed of a TFT-LCD Panel, a driving circuit and a back light system. It is a transmissive type display operating in the normal black. This TFT-LCD has a 71.93 (W) x 71.93 (H) mm diagonally measured active area with 720 x (RGB) × 720 resolutions.

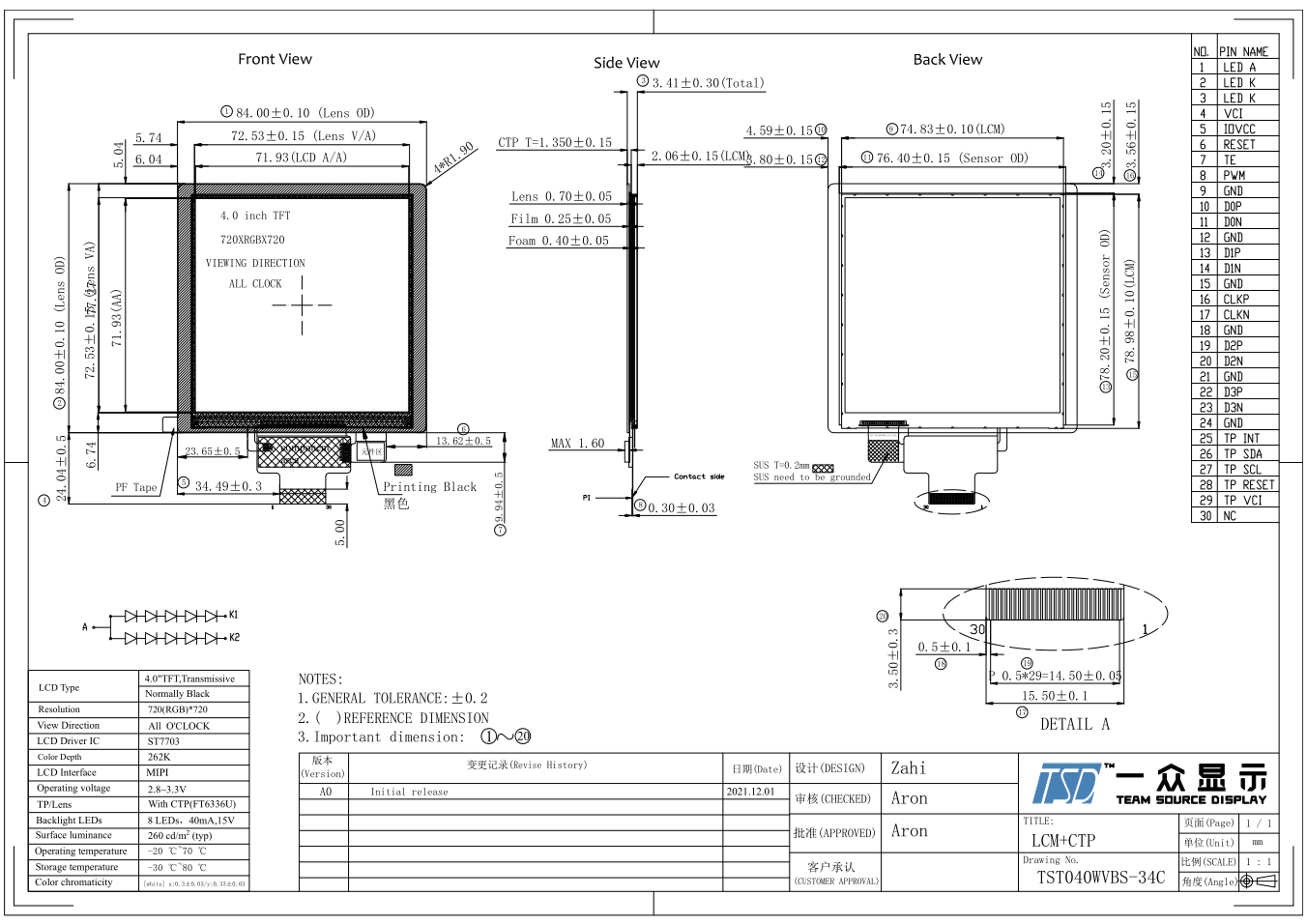

Drawing:
Specification
|
General Specification |
||
|
Part No. |
TST040WVBS-34C |
|
|
Outline Dimension(mm) |
74.83(W) x 78.98(H) x 2.06(D) |
|
|
Active Area(mm) |
71.93 (W) x 71.93 (H) |
|
|
Resolution(dots) |
720 x (RGB) × 720 |
|
|
Operating temperature(°C) |
-20 ~ +70°C |
|
|
Storage temperature(°C) |
-30 ~ +80°C |
|
|
Brightness |
10 LEDs |
|
|
Touch panel |
without |
|
|
Pixel arrangement |
RGB Vertical stripe |
|
|
Display mode |

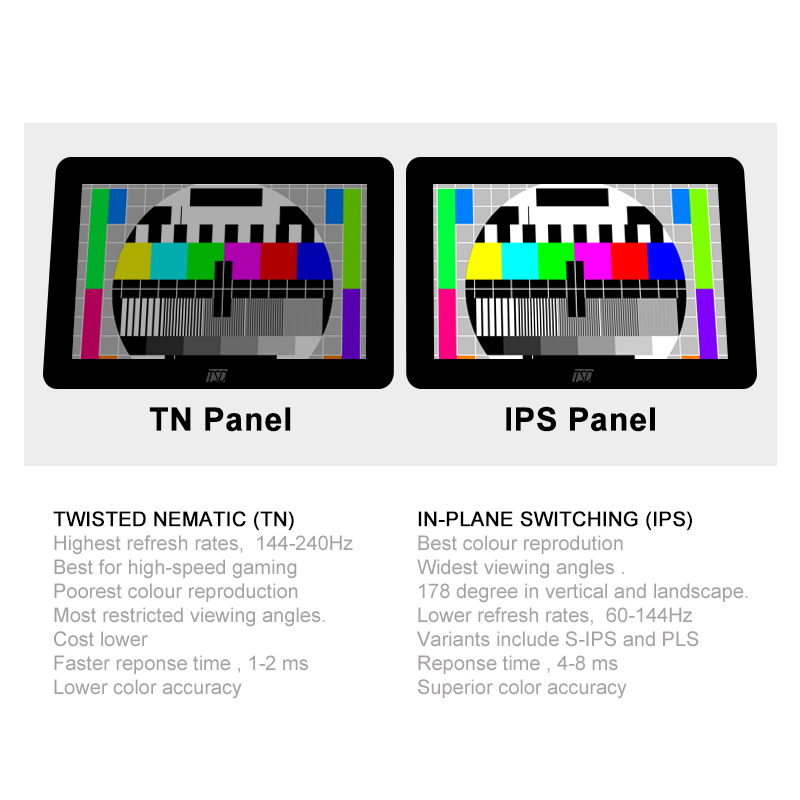

Normal black, IPS |
|
|
Surface treatment |
Antiglare |
|
|
View direction |
All o'clock |
|
|
Weight(g) |
TBD |
|
|
Power Consumption(w) |
Panel |
TBD(Typ.) |
|
B/L system |
TBD(Typ.) |
|
|
Interface |
MIPI |
|
|
Ic |
ST7703 |
|
|
Pins Description |
||
|
Pin No. |
Symbol |
Description |
|
1 |
LED A |
Backlight A Aothod input pin. |
|
2 |
LEDK |
Backlight K Cathode input pin. |
|
3 |
LEDK |
Backlight K Cathode input pin. |
|
4 |
VCI |
Power supply +2.8V t |
|
5 |
IOVCC |
Voltage input pin for logic I/O +1.8V |
|
6 |
RESET |
Reset input signal |
|
7 |
TE |
Tearing Effect output signal |
|
8 |
PWM |
Control signal for brightness of LED backlight . |
|
9 |
GND |
System Ground. (0V) |
|
10 |
D0P |
MIPI data aothod input pin |
|
11 |
D0N |
MIPI data c athode input pin |
|
12 |
GND |
System Ground. (0V) |
|
13 |
D1P |
MIPI data aothod input pin |
|
14 |
D1N |
MIPI data c athode input pin |
|
15 |
GND |
System Ground. (0V) |
|
16 |
CLKP |
MIPI clock aothod input pin |
|
17 |
CLKN |
MIPI clock c athode input pin |
|
18 |
GND |
System Ground. (0V) |
|
19 |
D2P |
MIPI data aothod input pin |
|
20 |
D2N |
MIPI data c athode input pin |
|
21 |
GND |
System Ground. (0V) |
|
22 |
D3P |
MIPI data aothod input pin |
|
23 |
D3N |
No Connect |
|
24 |
GND |
System Ground. (0V) |
|
25 |
TP INT |
CTP interrupt signal output pin/NC |
|
26 |
TP SDA |
CTP I 2 C data input/output/NC |
|
27 |
TP SCL |
CTP I 2 C clock input/NC |
|
28 |
TP RESET |
CTP reset signal input pin/NC |
|
29 |
TP VCI |
CTP Power supply +/NC |
|
30 |
NC |
No connect |
Applications:
1. Office Electronic Equipment: money counting machine, office phone set, copying mechine.
2. Household Appliances: refrigerator, air conditioner, induction cooker, microwave ovens.
3. Instruments: clinical thermometer, wire tester, digital watches, electronic weight scale.
4. Medical Devices: sphygmomanometer, ECG machine
5. Sports Equipment: Running machine.
6. Industrial Control Equipment: remote control, punched-card machine.
7. Information Terminal Display: POS, PDA, Handheld devices.
