Description:
Drawing:
Specification
|
General Specification |
||
|
Part No. |

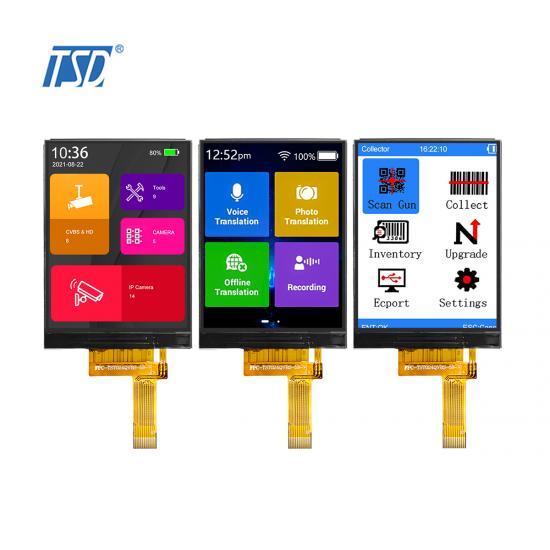

TST024QVBS-59 |
|
|
Display Size(Diagonal) |
2.4inch |
|
|
LCD type |
Normally Black, /IPS |
|
|
Resolution |
240x 320 |
|
|
View Direction |
All o’clock |
|
|
Module Outline |
40.44(H) x 57.00(V) x2.26(T)
|
|
|
Active Area |
36.72 (H) x 48.96 (V)
|
|
|
Touch |
Without , can add resistive touch panel / capacitive touch panel |
|
|
Backlight |
6 LEDS , 120mA, 3V |
|
|
Interface |
4 wire SPI |
|
|
Weight(g) |
TBD |
|
|
Power Consumption(w) |
Panel |
TBD(Typ.) |
|
B/L system |
TBD(Typ.) |
|
|
Operating Temperature |
-20～70 |
|
|
Storage Temperature |
-30～80 |
|
|
PIN NO. |
Symbol |
Description |
|
1 |
LEDK |
Backlight K Cathode input pin.
|
|
2 |
LEDA |
Backlight A Cathode input pin.
|
|
3 |
GND |
System Ground. (0V)
|
|
4 |
VDD (3.3V) |
power supply |
|
5 |
VDDIO_(1.8/3.3V)
|
power supply |
|
6 |
RS |
Display data/command selection pin in parallel interface.
|
|
7 |
SCL |
SPI interface clock pin.
|
|
8 |
CSX |
Chip selection pin
|
|
9 |
RESET |
Reset pin. Setting either pin low initializes the LSI. Must be reset after power is supplied.
|
|
10 |
SDA |
SPI interface input pin
|
|
11 |
TE |
Tearing effect signal is used to synchronize MCU to frame memory
|
|
12 |
GND |
System Ground. (0V)
|
Applications:
1. Office Electronic Equipment: money counting machine, office phone set, copying mechine.
2. Household Appliances: refrigerator, air conditioner, induction cooker, microwave ovens.
3. Instruments: clinical thermometer, wire tester, digital watches, electronic weight scale.
4. Medical Devices: sphygmomanometer, ECG machine
5. Sports Equipment: Running machine.
6. Industrial Control Equipment: remote control, punched-card machine.
7. Information Terminal Display: POS, PDA, Handheld devices.
