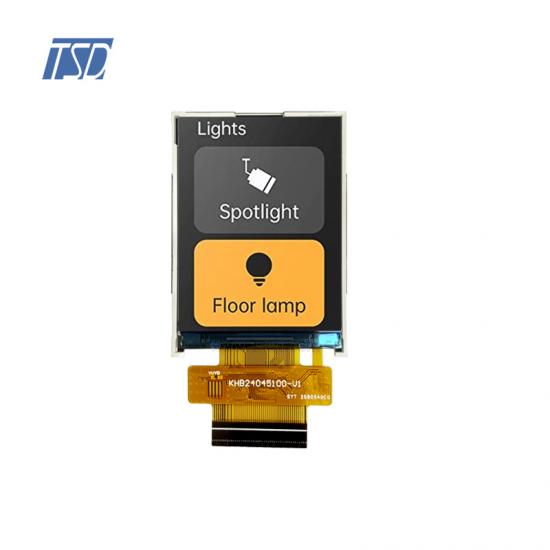

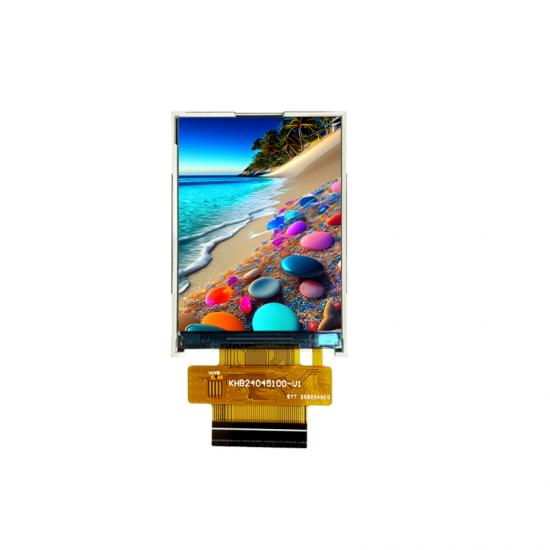

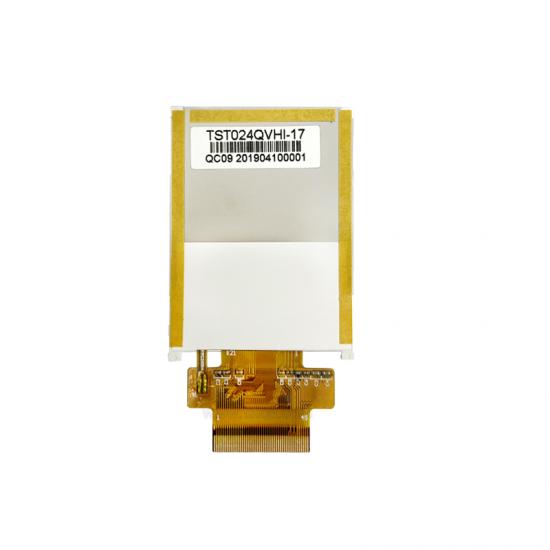

TSD Custom 2.4 Inch TFT LCD TST024QVHI-17

Model Name: TST024QVHI-17

LCD Type: 2.4"TFT, Transmissive,Normally black,IPS

Resolution: TST024QVHI-17

Viewing angle:  Free

Brightness: 400 cd/m

Driver IC: ILI9341V

Interface:MCU/SPI/SRI+RGB

Touch Screen:/

Operating Temperature: -20~-70

Storage Temperature: -30~-80

Description:



TST024QVHI-17 is a transmission type color active matrix liquid crystal display (LCD), using amorphous thin film transistor (TFT) as a switching device. This product is composed of TFTLCD panel, driver IC, FPC, PCB board, backlight and. The active display area is a 36.72x48.96 measurement on the diagonal, with an active resolution of 240xRGBx320. This 2.4 inch LCD can be used to display pictures and text, and it's without standard Capacitive touch screen.

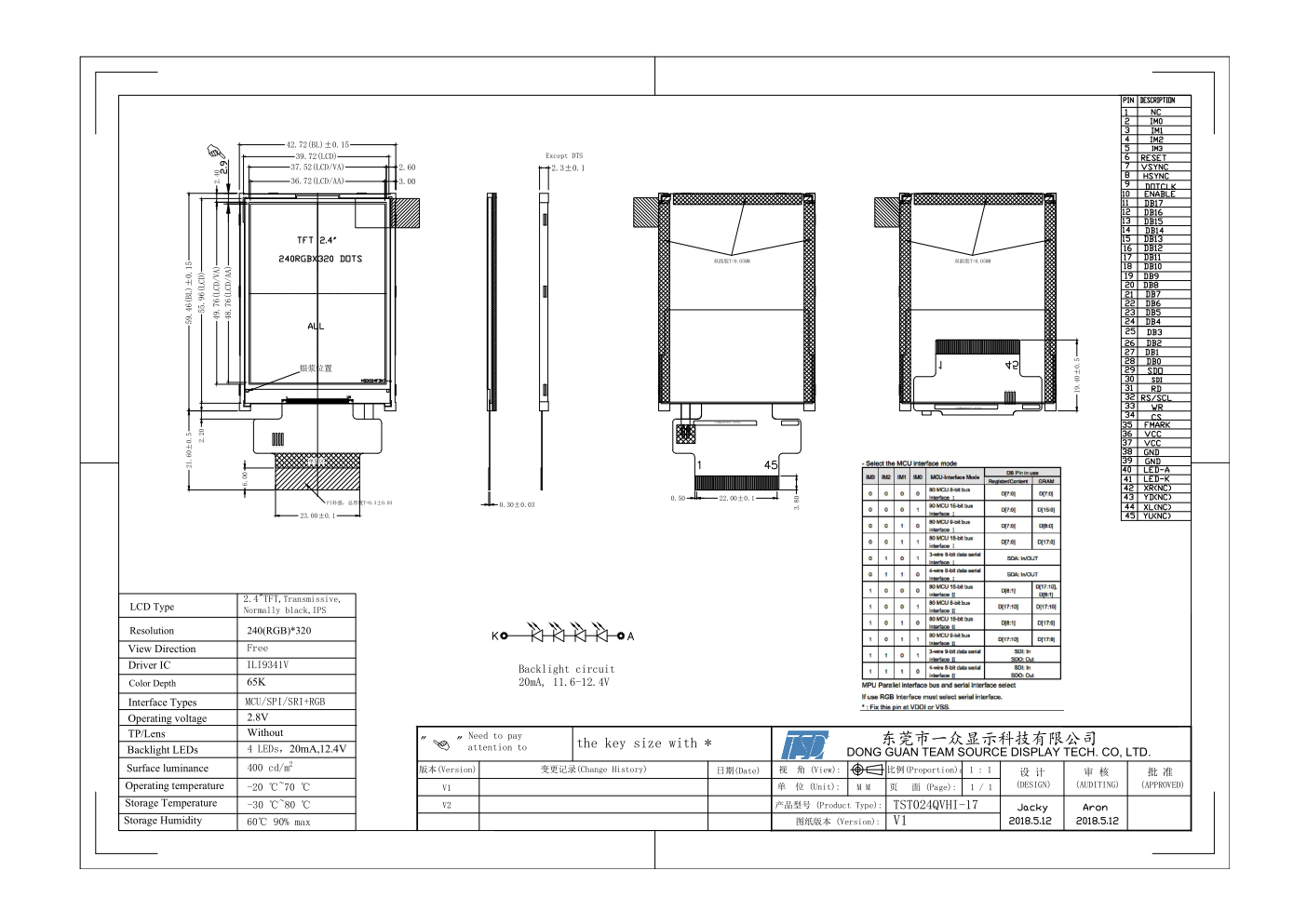

Drawing:





Specifications:





General Specification

Part No.

TST024QVHI-17

Outline Dimension(mm)

42.72x59.46x2.30

Active Area(mm)

36.72x48.96

Resolution(dots)

240xRGBx320

Operating temperature(°C)

-20 ~ +70°C

Storage temperature(°C)

-30 ~ +80°C

Touch panel

 No

Driver IC

ILI9341V

Pixel arrangement

RGB-stripe

Display mode

2.4"TFT, Transmissive, Normally black,IPS

View direction

All o'clock

Weight(g)

TBD

Power Consumption(w)

Panel

TBD(Typ.)

B/L system

TBD(Typ.)

Interface

SPI+RGB

Module lifetime(Hours)

50,000-100,000



PIN NO.

Symbol

Description

1

NC

No Connect

2-5

IMO-IM3

Interface select

6

RESET

Reset input signal

7

VSYNC

Vertical sync signal

8

HSYNC

Horizontal sync signal

9

DOTCLK

Pixel clock

10

ENABLE

Data enable

11-28

DB17-DB0

Data BUS

29

SDO

Serial data output

30

SDI

Serial data input

31

RD

Read signal

32

RS/SCL

Data/Command selection pin: This pin is used serial interface clock in
3-wire 9-bit/4-wire 8-bit serial data interface.

33

WR/RS

Write signal, This pin is used Data/Command selection pin select.in
4-wire 8-bit serial data interface.

34

CS

Chip select signal

35

FMARK

Tearing effect output signal

36-37

VCC

Power supply +2.8V

38-39

GND

System Ground

40

LED-A

Backlight A Anode input pin

41

LED-K

Backlight K Cathode input pin

42

XR/NC

No Connect

43

YD/NC

No Connect

44

XL/NC

No Connect

45

YU/NC

No Connect



Applications:



1. Office Electronic Equipment: money counting machine, office phone set, copying mechine.

2. Household Appliances: refrigerator, air conditioner, induction cooker, microwave ovens.

3. Instruments: clinical thermometer, wire tester, digital watches, electronic weight scale.

4. Medical Devices: sphygmomanometer, ECG machine

5. Sports Equipment: Running machine.

6. Industrial Control Equipment: remote control, punched-card machine.

7. Information Terminal Display: POS, PDA, Handheld devices.

Security Products: elevator controller, electronic indicator.
