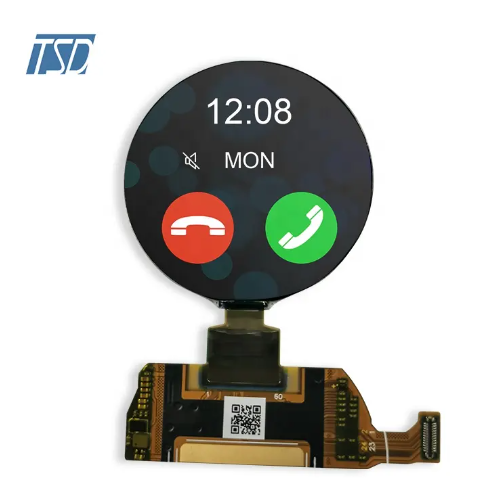

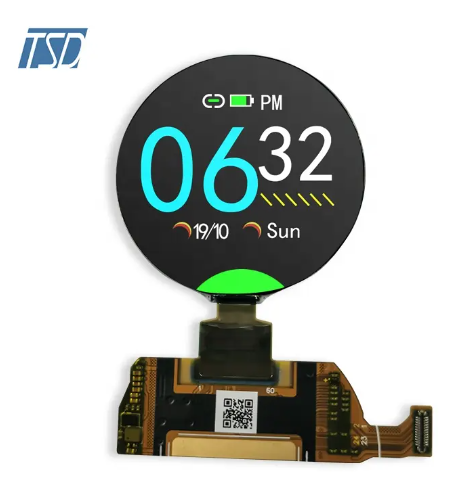

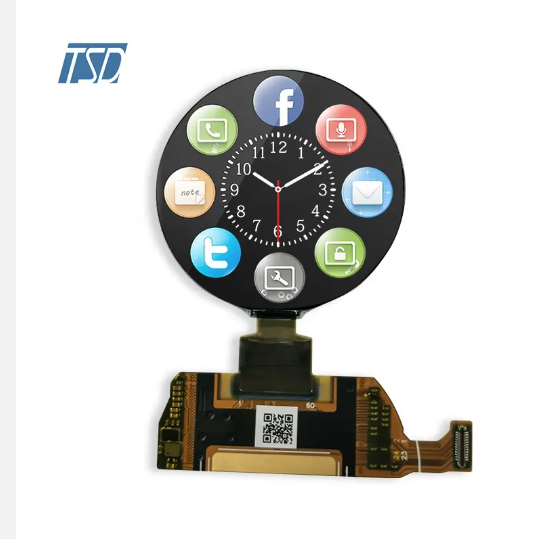

TSD round Amoled LCD Customization lcd panel 454 x (RGB) × 454 resolution

Display color16.7M (RGB x 8bits)

Display format1.4”(454RGBx454)

Pixel arrangementReal RGB arrangement

InterfaceMIPI/SPI

Driver IC: RM69330

Description:



This display module is a 1.4” (454X454) AMOLED liquid crystal display (LCD), The interface of it is  MIPI/SPI, The resolution of this 1.4 oled is 454(W) x RGB x 454(H) dots and can display up to 16.7M  colors. and the driver ic is RM69330.

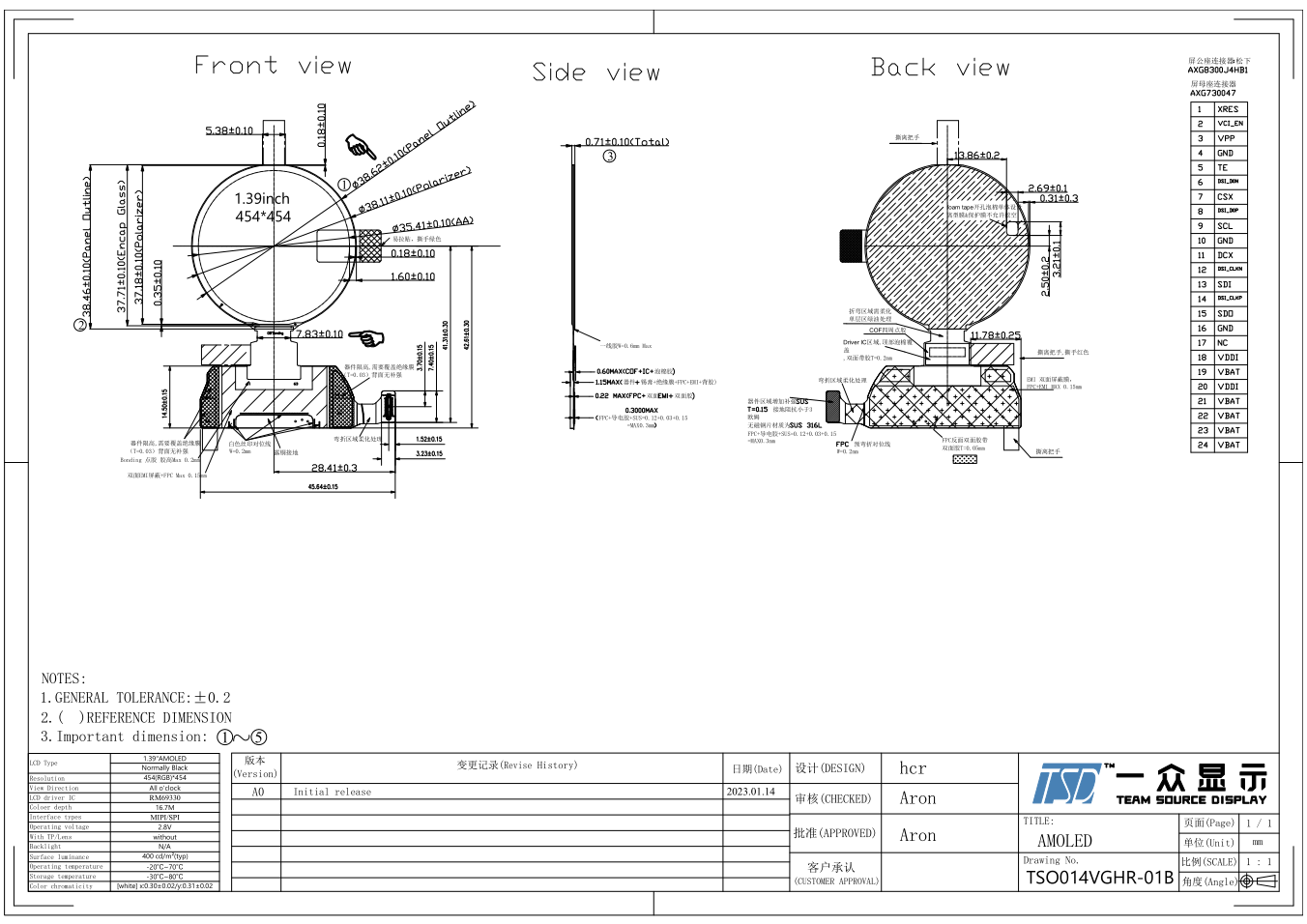

Drawing:





Specification

General Specification

Part No.

TSO014VGHR-01

Display Size(Diagonal)

1.4 inch

LCD type

Aoled

Resolution

454*RGB *454

View Direction

All

Module Outline

31.28(H) ×30.3(V)×1.45(T) (Note 1 )

Active Area

27.58 (H)×24.13(V)

Viewing Area

ALL

Display Colors

65K

Interface

MIPI/SPI

Driver IC

RM69330

Weight(g)

TBD

Power Consumption(w)

Panel

TBD(Typ.)

B/L system

TBD(Typ.)

Operating Temperature

-2060

Storage Temperature

-3070







Pins Description

Pin No.

Symbol

Description

1

Reset

This signal will reset the device and must be applied to

properly initialize the chip. Active low.

2

VCI_EN

This signal enables Power IC`s Driver IC analog supply

3

NC

-

4

GND

The power ground

5

TE

Tear effect output

6

DSI_D0N

MIPI DSI data0-

7

CSX

SPI Chip select input pin (“Low” enable)

8

DSI_D0P

MIPI DSI data0+

9

SCL

SPI Serial clock

10

GND

The power ground

11

DCX

SPI CMD/Data selection signal

12

DSI_CLKN

MIPI DSI clock-

13

SDI

SPI input signal

14

DSI_CLKP

MIPI DSI clock+

15

SDO

SPI Output signal

16

GND

The power ground

17

NC

-

18

VDDI

Driver IC digital I/O supply

19

VBAT

Power IC supply

20

VDDI

Power Driver IC digital I/O supply

21

VBAT

Power IC supply

22

VBAT

Power Power IC supply

23

VBAT

Power IC supply

24

VBAT

Power Power IC supply





 Applications:



1. Office Electronic Equipment: money counting machine, office phone set, copying mechine.

2. Household Appliances: refrigerator, air conditioner, induction cooker, microwave ovens.

3. Instruments: clinical thermometer, wire tester, digital watches, electronic weight scale.

4. Medical Devices: sphygmomanometer, ECG machine

5. Sports Equipment: Running machine.

6. Industrial Control Equipment: remote control, punched-card machine.

7. Information Terminal Display: POS, PDA, Handheld devices.
