TSD 7 inch TFT LCD MCU interface with SSD1963 board and RTP

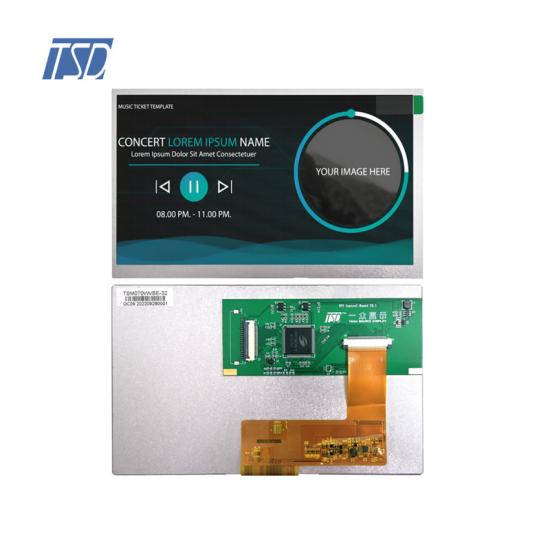

  • Model Name: TSM070WVBE-32
  • LCD Type: 7 inch TFT display
  • Resolution: 800x480
  • Viewing angle: 12 o'clock
  • Brightness: 500 cd/m2
  • Driver IC: SSD1963
  • Interface: MCU
  • Touch Screen: without
  • Operating Temperature: -20 ~ +70℃
  • Storage Temperature: -30 ~ +80℃

Description:



TST070WVBE-32 is a 7 inch 800x480 resolution lcd display with MCU interface, support 8 bits and 16 bits parallel. Driver IC is SSD1963, lcd type is 7 inch TFT, transmissive, normally white, TN display. Viewing direction is 12 o'clock. Color depth is 16.7M. This model is without touch screen, but available to add our standard PCAP design. Backlight is 21pcs LEDs, current is 60mA, backlight voltage is 21V. Brightness is around 500 cd/m2.


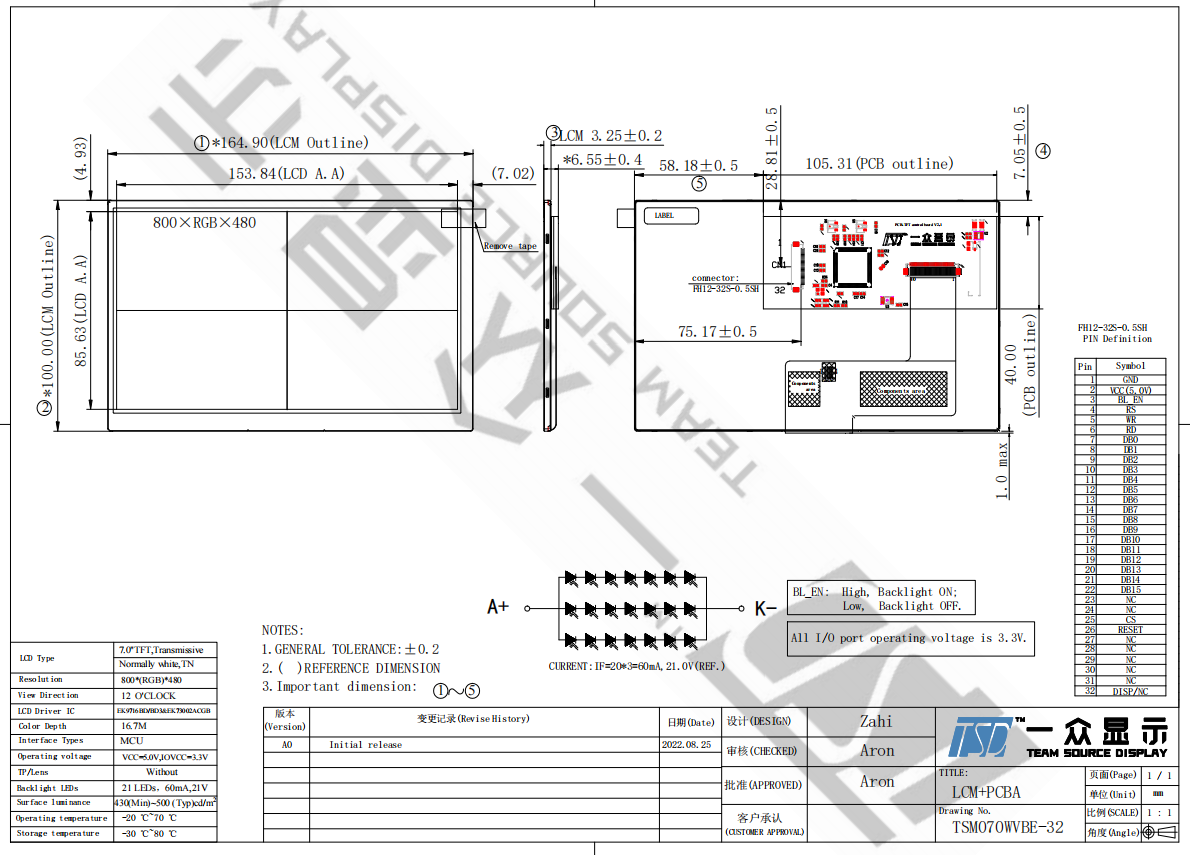

Drawing:




Specifications:



General Specification
Part No.  TSM070WVBE-32
Outline Dimension(mm)

164.9(W)x100(H)x3.25(D)

Active Area(mm) 153.84(W) x 85.63(H)
Resolution(dots) 800x (RGB) ×480
Operating temperature(°C) -20 ~ +70°C
Storage temperature(°C) -30 ~ +80°C
Number of Pixel(pixels) 800RGB(H)xRGBx480(V)
Touch panel  without
Driver IC SSD1963
Pixel arrangement RGB-stripe
Display mode Normal white, TN, 7 inch TFT
Surface treatment Antiglare
View direction  12 o'clock
Weight(g) TBD
Power Consumption(w) Panel TBD(Typ.)
B/L system TBD(Typ.)
Interface MCU
Module lifetime(Hours) 30,000-50,000





Pins Description for LCD (CN1)
Pin No.  Symbol Description
1 Ground System Ground.(OV)
2 VCC (5V) Power supply +5.5V
3 BL_EN High, Backlight ON; Low, Backlight OFF
4 RS Data/Command Selection pin
5 WR Write signal
6 RD Read signal
7~22 DB0~DB15 MCU16-bit Data Bus
23 NC Not connection
24 NC Not connection
25 CS Chip select signal
26 RESET Reset input signal
27 NC Not connection
28 NC/XR Not connection/The touch panel × right
29 NC/YD Not connection/The touch panel Y down
30 NC/XL Not connection/The touch panel X left
31 NC/YU Not connection/The touch panel Y up
32 DISP

Standby mode control.(Normally pull high)

DISP="L", enter standby mode for power saving. Timingcontroller and source driver will turn off, all outputs are Hi-Z.DISP=H", normal operation.




Applications:



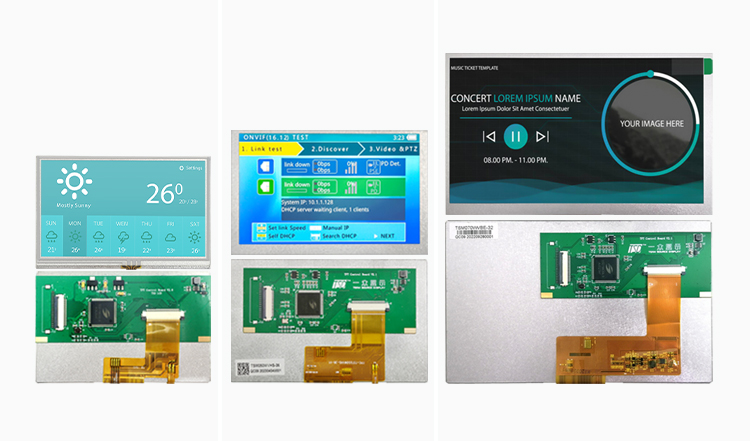

TSD is offering all kinds of TFT LCD with SSD1963 control board designs, including 4.3 inch, 5 inch and 7 inch. Non-touch, resisitive touch, capacitive touch screen are all available. Except for those standard designs, we could also make the customized designs basing on your needs.
