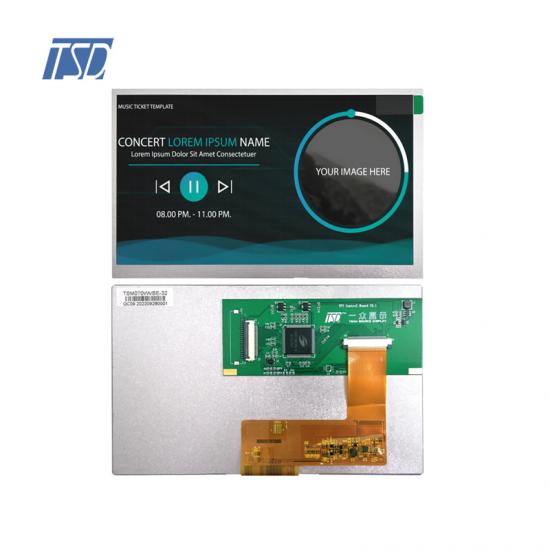

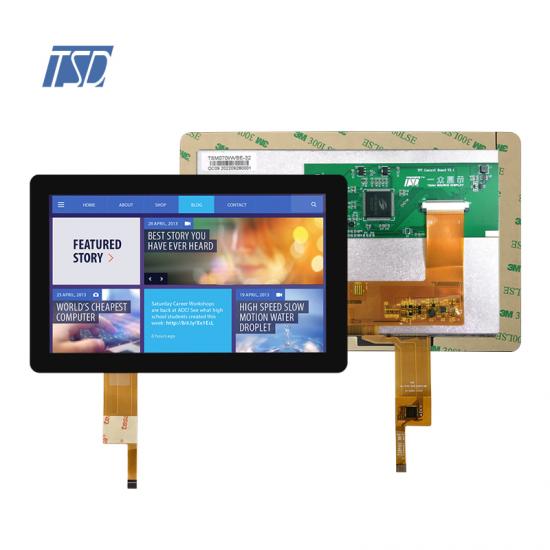

TSD 7 inch TFT LCD display MCU interface with SSD1963 driver

  • Model Name: TSM070WVBE-32P
  • LCD Type: 7 inch TFT display
  • Resolution: 800x480
  • Viewing angle: 12 o'clock
  • Brightness: 500 cd/m2
  • Driver IC: SSD1963
  • Interface: MCU
  • Touch Screen: with RTP
  • Operating Temperature: -20 ~ +70℃
  • Storage Temperature: -30 ~ +80℃

Description:



TSM070WVBE-32P is a 7 inch 800x480 resolution TFT LCD module with Resistive touch panel. Interface type is MCU 8 bits or 16 bits, driver IC is SSD1963. It's TN display with 12 o'clock viewing angle. LCM outline size is 164.9x100x3.25mm, RTP outline is 164.4x99.5mm. The PCB is 32 pins, connector is FH12-32S-0.5SH, pin pitch is 0.5mm.

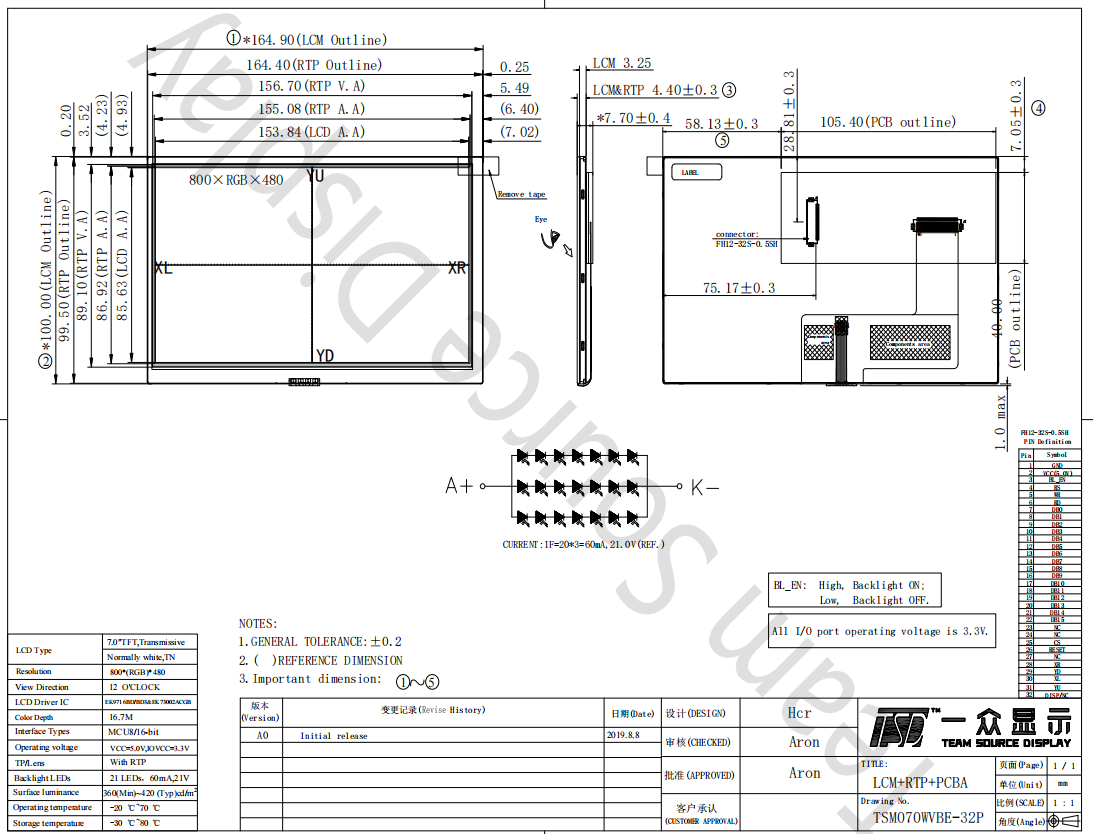

Drawing:




Specifications:



General Specification
Part No.  TSM070WVBE-32P
Outline Dimension(mm)

164.9(W)x100(H)x3.25(D)

Active Area(mm) 153.84(W) x 85.63(H)
Resolution(dots) 800x (RGB) ×480
Operating temperature(°C) -20 ~ +70°C
Storage temperature(°C) -30 ~ +80°C
Number of Pixel(pixels) 800RGB(H)xRGBx480(V)
Touch panel  with RTP
Driver IC SSD1963
Pixel arrangement RGB-stripe
Display mode Normal white, TN, 7 inch TFT
Surface treatment Antiglare
View direction  12 o'clock
Weight(g) TBD
Power Consumption(w) Panel TBD(Typ.)
B/L system TBD(Typ.)
Interface MCU
Module lifetime(Hours) 30,000-50,000





Pins Description for LCD (CN1)
Pin No.  Symbol Description
1 Ground System Ground.(OV)
2 VCC (5V) Power supply +5.5V
3 BL_EN High, Backlight ON; Low, Backlight OFF
4 RS Data/Command Selection pin
5 WR Write signal
6 RD Read signal
7~22 DB0~DB15 MCU16-bit Data Bus
23 NC Not connection
24 NC Not connection
25 CS Chip select signal
26 RESET Reset input signal
27 NC Not connection
28 NC/XR Not connection/The touch panel × right
29 NC/YD Not connection/The touch panel Y down
30 NC/XL Not connection/The touch panel X left
31 NC/YU Not connection/The touch panel Y up
32 DISP

Standby mode control.(Normally pull high)

DISP="L", enter standby mode for power saving. Timingcontroller and source driver will turn off, all outputs are Hi-Z.DISP=H", normal operation.




Applications:



TSD is offering all kinds of TFT LCD with SSD1963 control board designs, including 4.3 inch, 5 inch and 7 inch. Widely using in Industrial automation, electric power, telecommunications, environmental protection, medical care, finance, petroleum, chemical industry, transportation, energy, geology, metallurgy, public inquiry and monitoring, smart home appliances, transportation rails, data computer rooms, charging piles, electric power medical, and national defenser, shared equipment and other industries and fields.
