TSD 800×480 resolution 7 inch TFT LCD touch screen with MCU interface

  • Model Name: TSM070WVBE-32C
  • LCD Type: 7 inch TFT display
  • Resolution: 800x480
  • Viewing angle: 12 o'clock
  • Brightness: 400 cd/m2
  • Driver IC: SSD1963
  • Interface: MCU
  • Touch Screen: with Capacitive touch panel
  • Operating Temperature: -20 ~ +70℃
  • Storage Temperature: -30 ~ +80℃





Description:

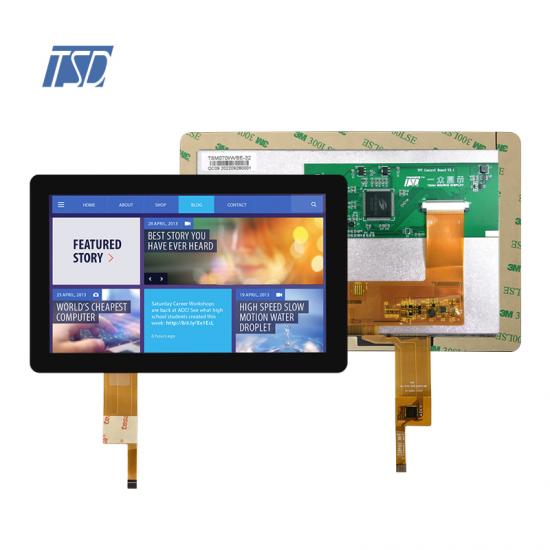

TST070WVBE-32C is a 7 inch 800x480 resolution color tft lcd module with MCU interface, integrated with SSD1963 controller board. This 7 inch LCD is with our standard capacitive touch panel, TSD could also make all kinds of customized designs. The LCD module size is 190.08x121.92mm, Lens VA is 154.84x86.63mm, LCD active area is 153.84x85.63mm. There is 3M9495LE adhesive tape on the back side of cover glass, we could also change to use other VHB tape for better water-proof function.

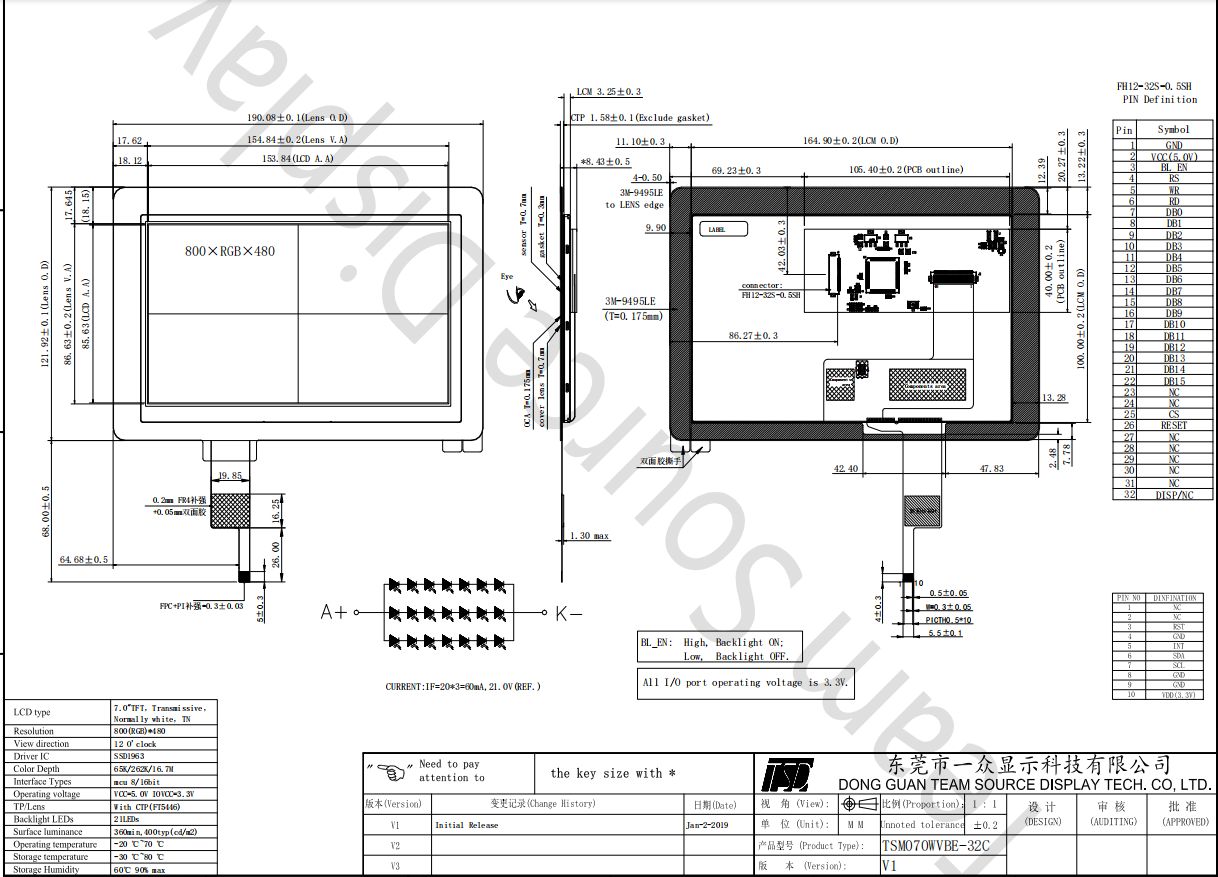

Drawing:




Specifications:



General Specification
Part No.  TSM070WVBE-32C
Outline Dimension(mm)

190.08(W)x121.92(H)x3.25(D)

Active Area(mm) 153.84(W) x 85.63(H)
Resolution(dots) 800x (RGB) ×480
Operating temperature(°C) -20 ~ +70°C
Storage temperature(°C) -30 ~ +80°C
Number of Pixel(pixels) 800RGB(H)xRGBx480(V)
Touch panel  with CTP
Driver IC SSD1963
Pixel arrangement RGB-stripe
Display mode Normal white, TN, 7 inch TFT
Surface treatment Antiglare
View direction  12 o'clock
Weight(g) TBD
Power Consumption(w) Panel TBD(Typ.)
B/L system TBD(Typ.)
Interface MCU
Module lifetime(Hours) 30,000-50,000





Pins Description for LCD (CN1)
Pin No.  Symbol Description
1 Ground System Ground.(OV)
2 VCC (5V) Power supply +5.5V
3 BL_EN High, Backlight ON; Low, Backlight OFF
4 RS Data/Command Selection pin
5 WR Write signal
6 RD Read signal
7~22 DB0~DB15 MCU16-bit Data Bus
23 NC Not connection
24 NC Not connection
25 CS Chip select signal
26 RESET Reset input signal
27 NC Not connection
28 NC/XR Not connection/The touch panel × right
29 NC/YD Not connection/The touch panel Y down
30 NC/XL Not connection/The touch panel X left
31 NC/YU Not connection/The touch panel Y up
32 DISP

Standby mode control.(Normally pull high)

DISP="L", enter standby mode for power saving. Timingcontroller and source driver will turn off, all outputs are Hi-Z.DISP=H", normal operation.





CTP interface Description  (CN2)
Pin No.  Symbol Description
1 NC No connection
2 NC No connection
3 RST External Reset, Low is active
4 GND Ground
5 INT Interrupt request to the host
6 SDA I2C data input and output
7 SCL I2C clock input
8 GND Ground
9 GND Ground
10 VDD Power supply +3.3V




Applications:



TSD is offering all kinds of TFT LCD with SSD1963 control board that are ideal for different applications including:



Embedded systems

Industrial instrustment

Security equipment

Hand-held terminals

Medical devices

Smart home & White goods

EV Chargers etc
