TSD 20*4 small size Mono LCD module 1/16Duty, 1/5 Bias Driving Method

Part number:TSM2004A-20-YG

Resolution: 20*4

Display Mode: STN,POSITIVE,Y/G

Polarizer Mode: TRANSFLECTIVE

Driving Method: 1/16Duty, 1/5 Bias

Backlight: LEDColor Y&G

Weight: TBD

Operating temperature: -20℃~70℃

Storage temperature: -30℃~80℃

Description:



TSM2004A-20-YG is 20.*4 dots resolution LCD display with 8-Bit Parallel Interface, Active Area is 70.4(W) × 20.80(H), which is suitable for indoor and outdoor application. For this 20*4 inch lcd module, driver IC is ST7066-0A , viewing direction is 6 o’clock , this lcd module is without standard Capacitive touch panel, customized design are also welcome.





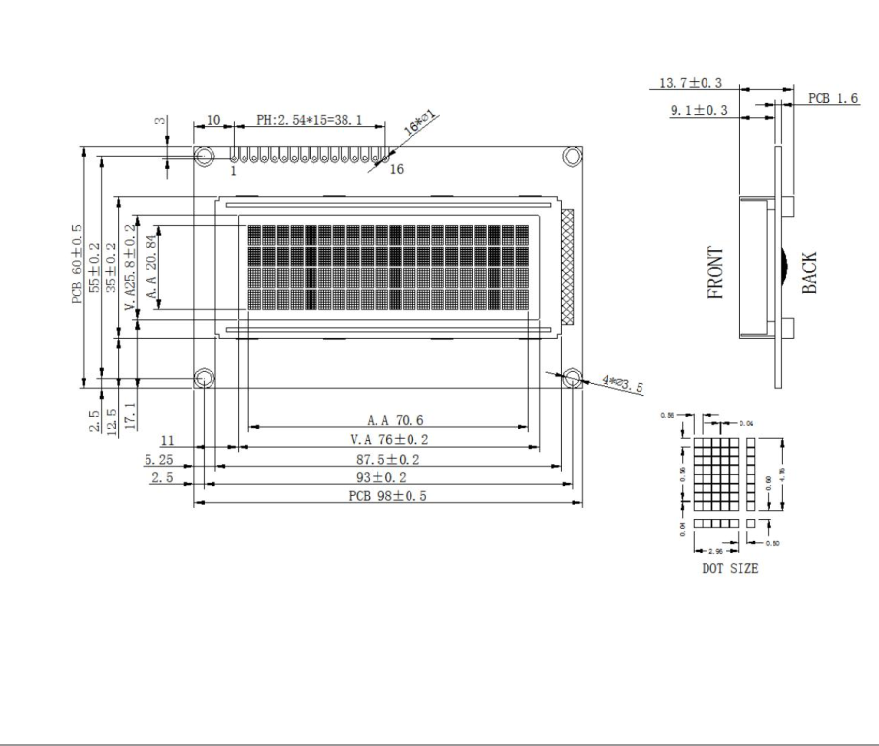

Drawing:

Specification



General Specification

Part No.

TSM2004A-20-YG

Display Size(Diagonal)

20*4

LCD type

STN,POSITIVE,Y/G

Resolution

20*4

View Direction

6H

Module Outline

98.0(W) × 60.0(H) × 13.5

Active Area

70.4(W) × 20.80(H)

Backlight

LEDColor Y&G

Driver IC

ST7066-0A or Equivalent

Interface

8-Bit Parallel Interface

Weight(g)

TBD

Power Consumption(w)

Panel

TBD(Typ.)

B/L system

TBD(Typ.)

Operating Temperature

-2070

Storage Temperature

-3080



Pins Description

Pin No.

Symbol

Description

1

V SS

Ground

2

V DD

Power supply for logic(+5.0V)

3

V0

Power supply for LCD

4

RS

Register selection

H: Display data L: Instruction code

5

R/W

Read/Write selection

H: Read operation L: Instruction code

6

E

L Enable signal

7

D0

Data Bit0

8

D1

Data Bit1

9

D2

Data Bit2

10

D3

Data Bit3

11

D4

Data Bit4

12

D5

Data Bit5

13

D6

Data Bit6

14

D7

Data Bit7

15

A

Power Supply for LED B/L(5.0V)

16

K

Power Supply for LED B/L(GND)



 Applications:



1. Office Electronic Equipment: money counting machine, office phone set, copying mechine.

2. Household Appliances: refrigerator, air conditioner, induction cooker, microwave ovens.

3. Instruments: clinical thermometer, wire tester, digital watches, electronic weight scale.

4. Medical Devices: sphygmomanometer, ECG machine

5. Sports Equipment: Running machine.

6. Industrial Control Equipment: remote control, punched-card machine.

7. Information Terminal Display: POS, PDA, Handheld devices.

Get A Quote
If you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.
