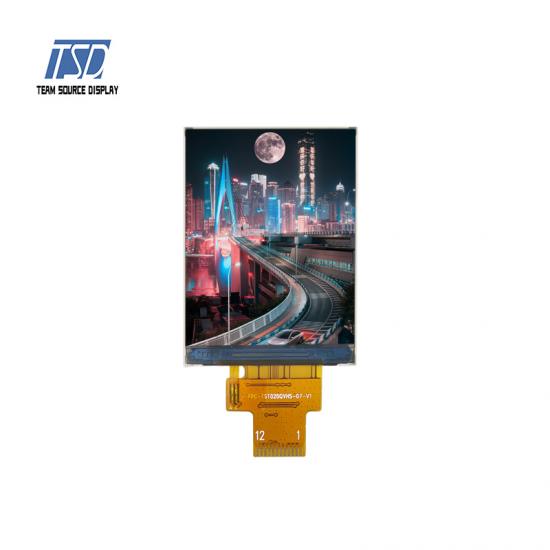

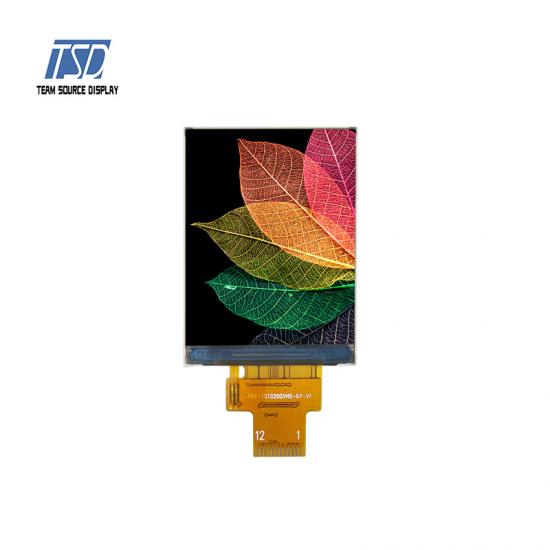

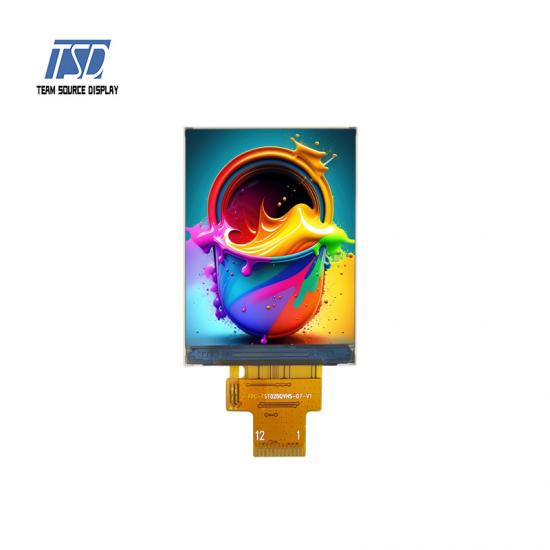

TSD 2.0 Inch TFT LCD 240*320 Resolution Ips interface

Model Name:TST020QVHS-07

LCD Type: TFT,Transmissive,Normally black,IPS

Resolution: 240 x (RGB) × 320

Viewing angle: ALL o’clock

Brightness:300~350

Driver IC: ST7789V

Interface: SPI

Touch Screen:Without

Operating Temperature: -20 ℃~70 ℃

Storage Temperature: -30 ℃~80 ℃

 Description:



TST020QVHS-07 is a transmission type color active matrix liquid crystal display (LCD), using amorphous thin film transistor (TFT) as a switching device. This product is composed of TFTLCD panel, driver IC, FPC, PCB board, backlight . The active display area is a 30.60x40.80 measurement on the diagonal, with an active resolution of 240xRGBx320. This 2.0 inch LCD can be used to display pictures and text, and it's without standard Capacitive touch screen.

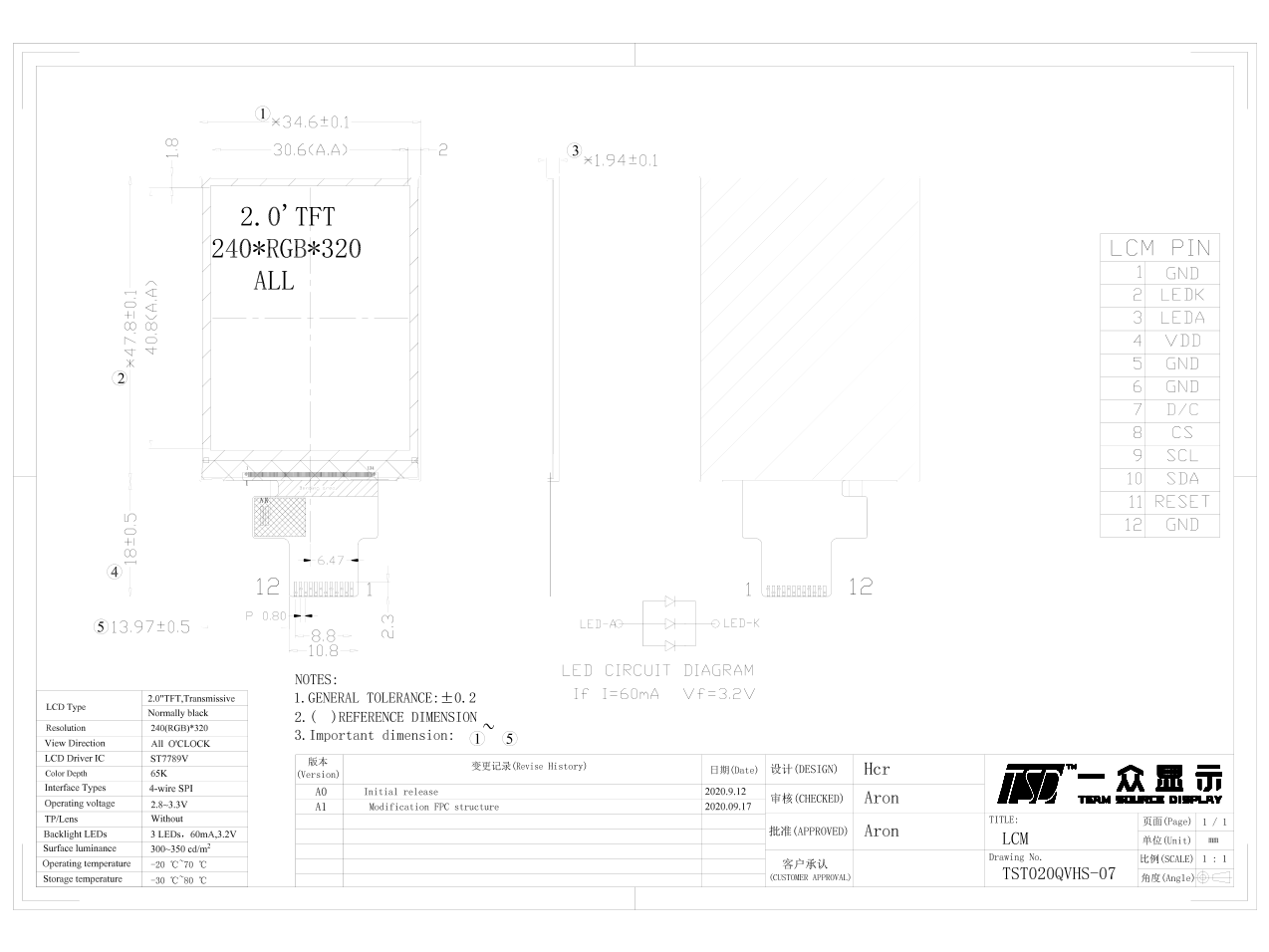

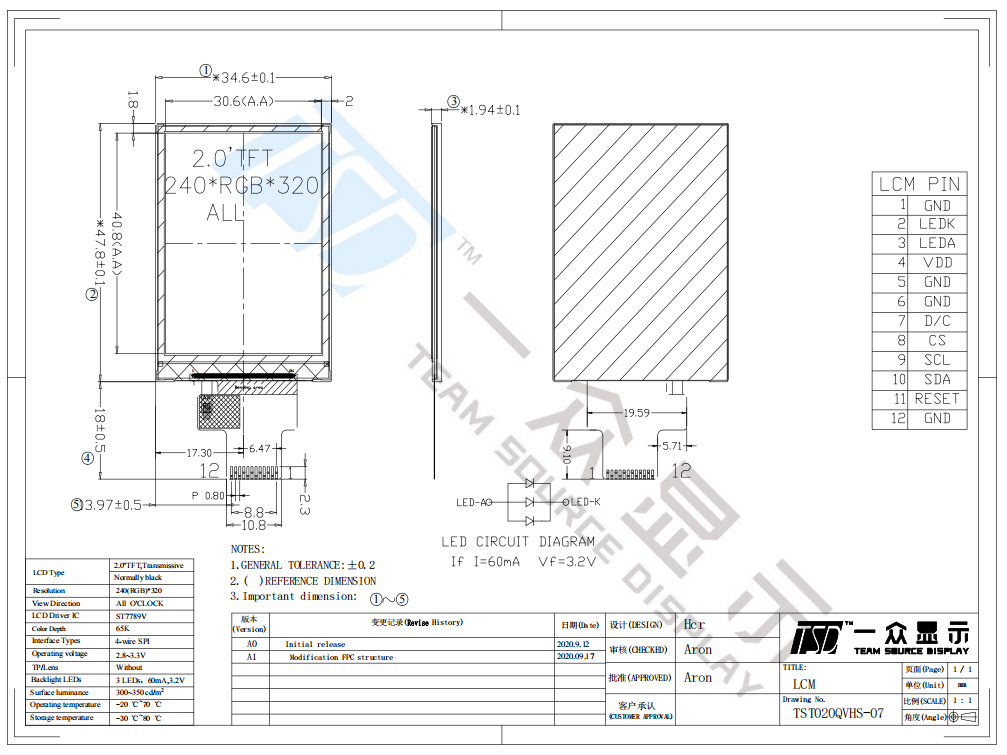

Drawing:


Specifications:

General Specification

Part No.

TST020QVHS-07

Outline Dimension(mm)

25.8(W) x 49.72(H) x 1.48(D)

Active Area(mm)

22.70 (W) x 42.72 (H)

Resolution(dots)

280 x (RGB) × 320

Operating temperature(°C)

-20 ~ +70°C

Storage temperature(°C)

-30 ~ +80°C

Color Depth

65K/262K

Touch panel

Without

Driver IC

ST7789V

Pixel arrangement

RGB

Display mode

a-Si TFT,Transmissive,Normally black

Surface treatment

Antiglare

View direction

6 o'clock

Weight(g)

TBD

Power Consumption(w)

Panel

TBD(Typ.)

B/L system

TBD(Typ.)

Interface

SPI

Module lifetime(Hours)

50,000-100,000



PIN NO.

Symbol

Description

1

GND

System Ground.(OV)

2

LEDK

Backlight K Cathode input pin.

3

LEDA

Backlight A Aothod input pin.

4

VDD

Power supply +2.8~3.3V

5

GND

System Ground.(OV)

6

GND

System Ground.(OV)

7

D/C

Data/Command selection pin

8

CS

Chip selection pin

9

SCL

SPI clock pin

10

SDA

SPI data input/output pin

11

RESET

Reset input signal

12

GND

System Ground.(OV)



Applications:



1. Office Electronic Equipment: money counting machine, office phone set, copying mechine.

2. Household Appliances: refrigerator, air conditioner, induction cooker, microwave ovens.

3. Instruments: clinical thermometer, wire tester, digital watches, electronic weight scale.

4. Medical Devices: sphygmomanometer, ECG machine

5. Sports Equipment: Running machine.

6. Industrial Control Equipment: remote control, punched-card machine.

7. Information Terminal Display: POS, PDA, Handheld devices.

Security Products: elevator controller, electronic indicator.
