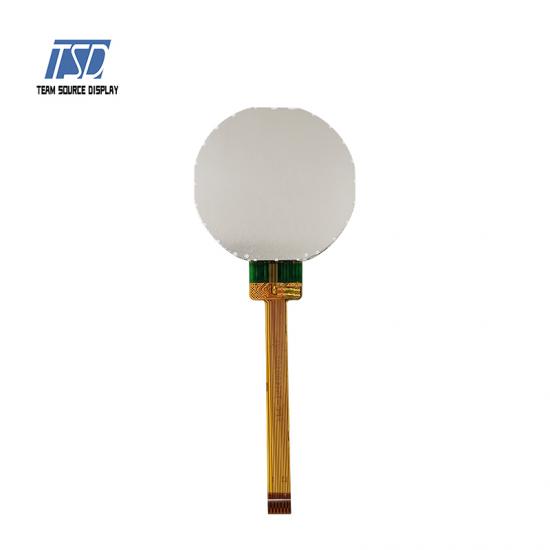

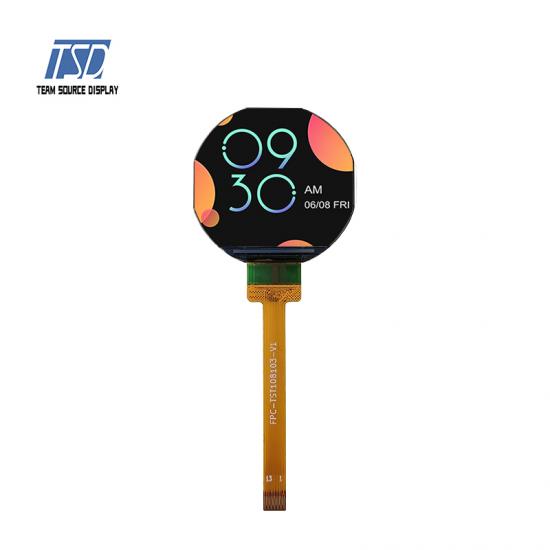

TSD 0.99 inch 1 inch 128x115 resolution round tft lcd display



  • Model Name: TST010QQBG-05
  • LCD Type: 0.99 inch IPS TFT display
  • Resolution: 128x115
  • Viewing angle: All o'clock
  • Brightness: 350 cd/m2
  • Driver IC: GC9107
  • Interface: 4 wire SPI
  • Touch Screen: without
  • Operating Temperature: -10 ~ +60℃
  • Storage Temperature: -20 ~ +70℃



Description:



TST010QQBG-05 is 0.99 inch 128x115 resolution round TFT LCD display with 4 wire SPI interface. This small LCD is color TFT with 262K color depth. Outline size of LCM is 26.71x26.22x1.86mm, tolerance is ±0.1mm. AA of LCD is 24.36x21.89mm. Driver IC is GC9107, surface luminance is 350 cd/m2. TSD 1 inch TFT display is widely using for smart wearable devices, operating voltage is 3.3V, viewing direction is all o'clock with free viewing angle.

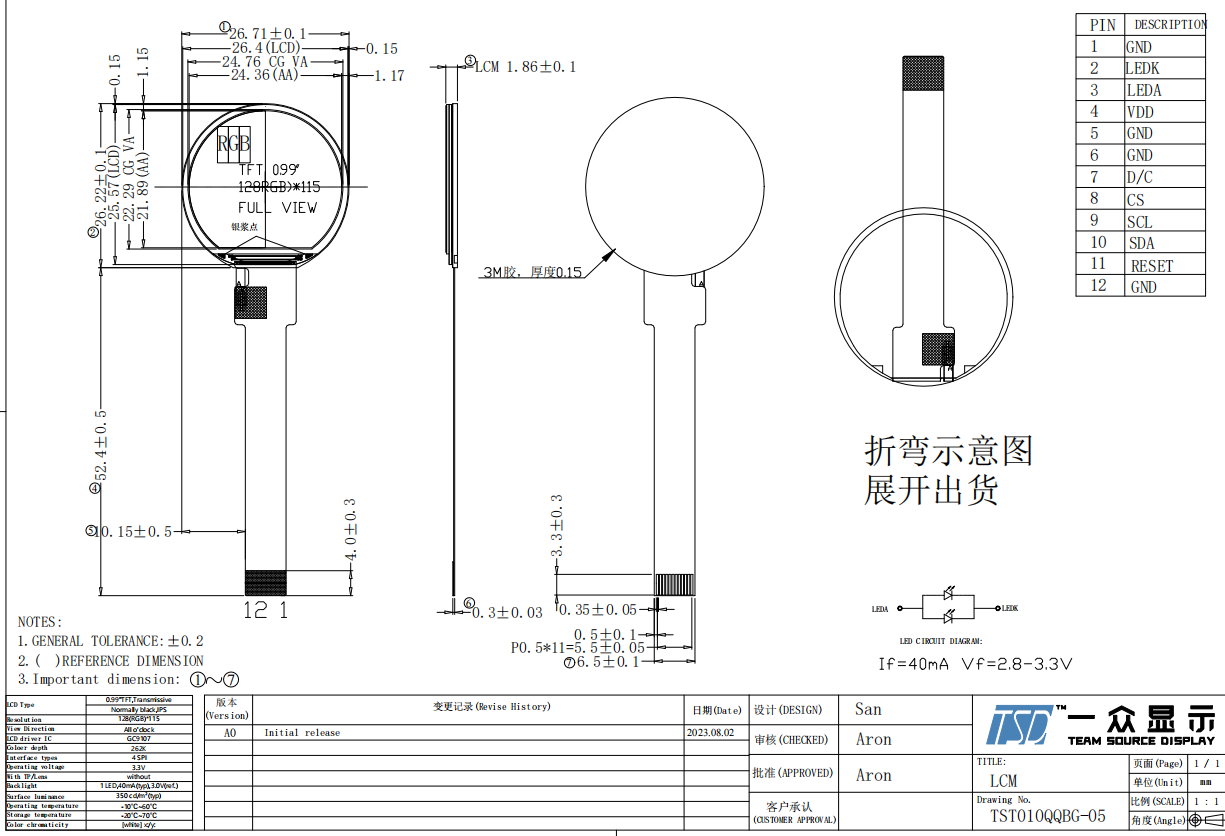

Drawing:



0.99 inch TFT


Specifications:



General Specification
Part No.  TST010QQBG-05
Outline Dimension(mm)

26.71x26.22x1.86

Active Area(mm) 24.36x21.89
Resolution(dots) 128x (RGB) × 115
Operating temperature(°C) -10 ~ +60°C
Storage temperature(°C) -20 ~ +70°C
Number of Pixel(pixels) 128RGB(H)xRGBx115(V)
Touch panel  without
Driver IC GC9107
Pixel arrangement RGB-stripe
Display mode Normal black, IPS, 0.99 inch TFT
Surface treatment Antiglare
View direction  All o'clock
Weight(g) TBD
Power Consumption(w) Panel TBD(Typ.)
B/L system TBD(Typ.)
Interface SPI
Module lifetime(Hours) 30,000-50,000





Pins Description
Pin No.  Symbol Description
1 GND Power ground
2 LEDK LED Cathode
3 LEDA LED Anode
4 VDD Power supply
5 GND Power ground
6 GND Power ground
7 D/C Display data/command selection pin in 4-line serial interface.
8 CS Chip selection pin; Low enable, High disable.T
9 SCL This pin is used to be serial interface clock.
10 SDA SPI interface input/output pin. The data is latched on the rising edge of the SCL signal.
11 RESET

This signal will reset the device and it must be applied to properly initialize the chip. Signal is active low.

12 GND Power Ground






Applications:



TSD round tft lcd display, are widely using in Industrial display modules, car clocks, electronic instruments, CDs, VCDs, car audios, car LCD remote controls, household appliances, industrial instrument displays, electronic dictionaries, mobile phones, calculators, fax machines, MP3, handheld telephones, air conditioners, Handheld electronic game consoles, calculators, electronic watches, electronic pets, BP machines, electronic scales, mobile phones, electronic notepads, radios, etc., products with integrated touch and display are used in all aspects of the Internet of Things in social life.



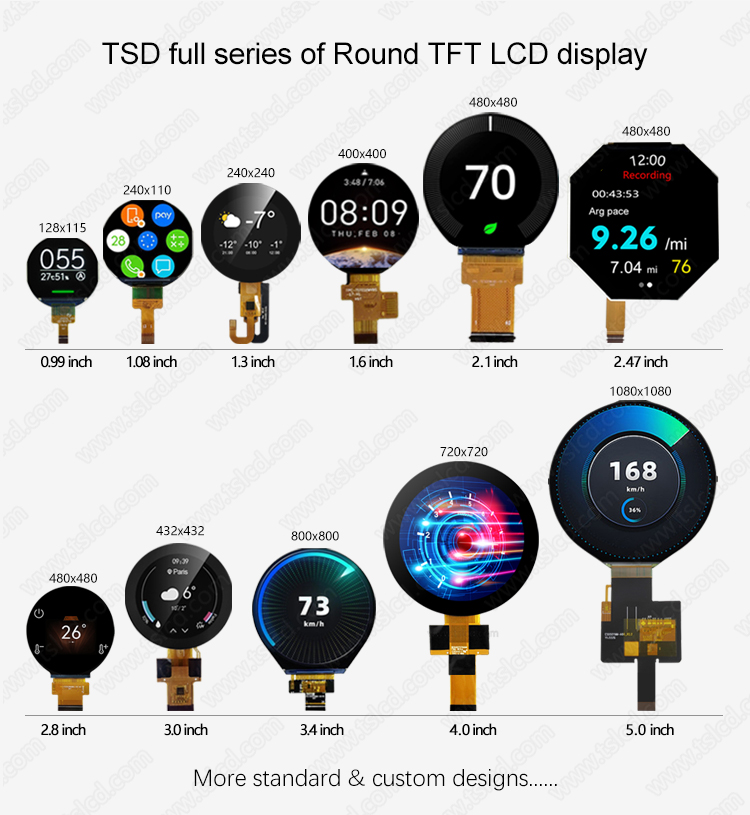

TSD have full series of round TFT LCD display from 0.99 inch to 5 inch, any further interests, please contact us for more information.
