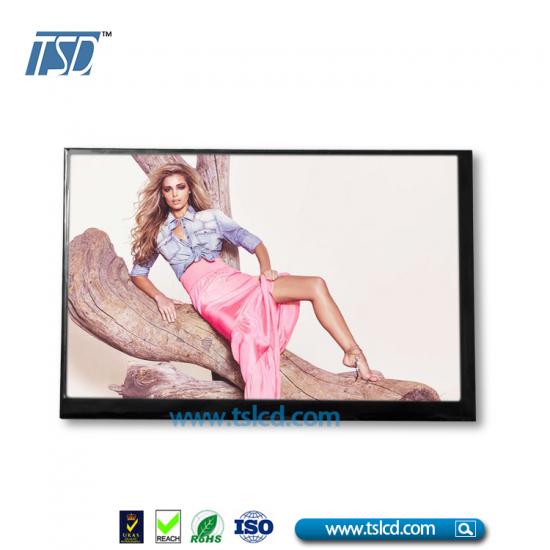

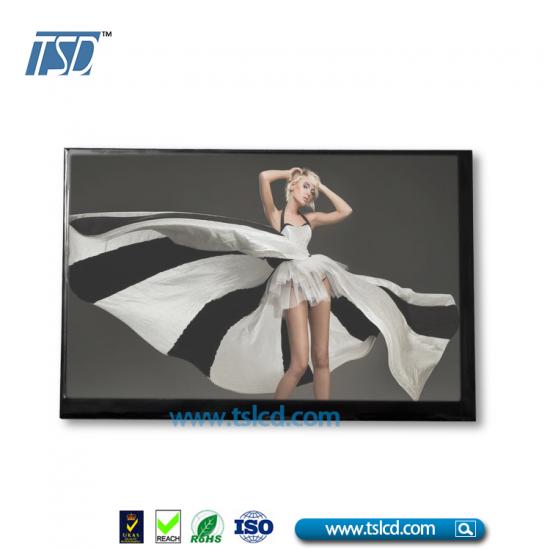

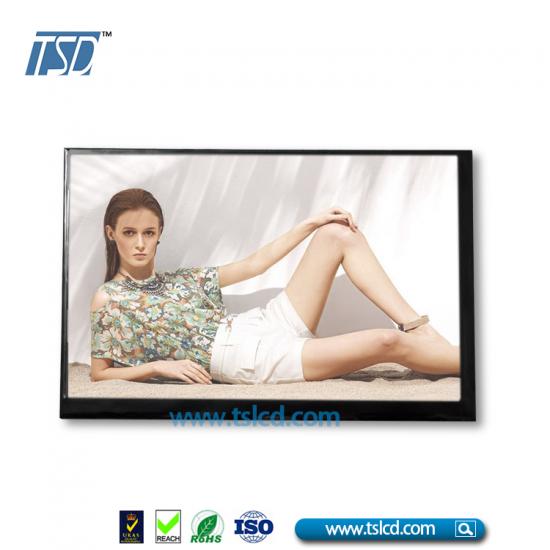

TSD 1280×800 resolution 7 inch IPS TFT LCD screen with LVDS interface

  • Model Name: TST070JDHG30-01
  • LCD Type: 7 inch TFT LCD display
  • Resolution: 1280*800
  • Viewing angle: IPS all viewing angle
  • Brightness: 1000 cd/m2
  • Driver IC: ST5821C+ST5084C
  • Interface: LVDS
  • Touch Screen: without
  • Operating Temperature: -20 ~ +70℃
  • Storage Temperature: -30 ~ +80℃

Description:



TST070JDHG30-01 is 7 inch 1280x800 resolution LCD display with LVDS interface, standard brightness is 400cd/m2. For this 7 inch TFT LCD module, driver IC is ST5821C+ST5084C, viewing direction is Free. color depth is 16.7M, operating voltage is 3.3V,  this lcd module is suitable for Optical bonding, also can be with resistive or capacitive touch panel, customized design are also welcome. this 7 inch lcd is suitable for industrial grade application.



Specification
Part No. TST070JDHG30-01
Outline Dimension(mm) 161.00x107.00x3.15
Active Area(mm) 149.76x93.60
Resolution(dots) 1280*RGB*800
Operating temperature(°C) -20-70
Storage temperature(°C) -30-80
Number of Pixel(pixels) 1280RGB(H)xRGBx800(V)
Touch panel available to custom
Dot Pitch 0.0642(W)x0.1790(H)
Pixel arrangement RGB Vertical stripe
Display mode Normal black, IPS, 7.0 inch TFT
Surface treatment Antiglare
View direction  ALL
Brightness 400 cd/m2
Power Consumption(w) Panel 0.226(Typ.)
B/L system 1.674(Typ.)
Interface LVDS
Module lifetime(Hours) 50,000-100,000

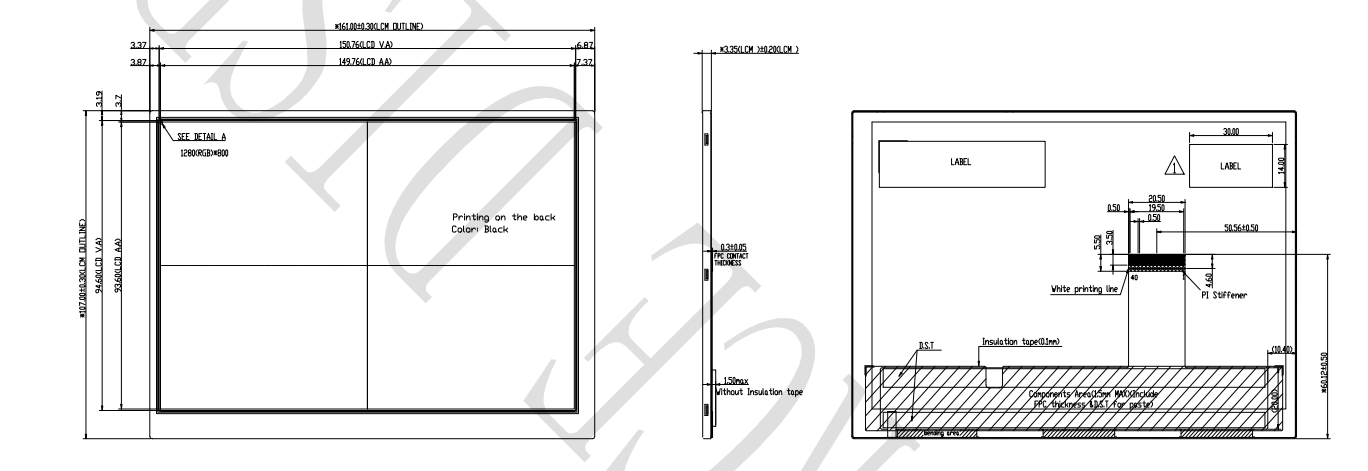

Drawing:

Interface Description:

Pin No.  Symbol I/O Description
1 NC -- No connection
2 VDD P Power Voltage for digital circuit
3 VDD P Power Voltage for digital circuit
4 NC -- No connection
5 NC -- No connection
6 NC --

No connection

7 GND P  ground
8 RXIN0- I -LVDS differential data input
9 RXINO+ I +LVDS differential data input
10 GND P Power ground
11 RXIN1- I -LVDS differential data input
12 RXIN1+ I +LVDS differential data input
13 GND P Power ground
14 RXIN2- I -LVDS differential data input
15 RXIN2+ I +LVDS differential data input
16 GND P Power ground
17 RXCLKIN- I -LVDS differential data input
18 RXCLKIN+ I +LVDS differential data input
19 GND P Power ground
20 RXIN3- I -LVDS differential data input
21 RXIN3+ I +LVDS differential data input
22 GND P Power ground
23 NC -- No connection
24 NC -- No connection
25 GND P Power ground
26 NC -- No connection
27 NC -- No connection
28 NC -- No connection
29 AVDD P Power for Analog Circuit
30 GND P Power ground
31 LED- P LED Cathode
32 LED- P LED Cathode
33 NC -- No connection
34 NC -- No connection
35 VGL P Gate OFF Voltage
36 NC -- No connection
37 NC -- No connection
38 VGH P Gate ON Voltage
39 LED+ P LED Anode
40 LED+ P LED Anode

Applications:



For our 7 inch LCD displayTST070JDHG30-01, it's widely using in industrial product, Industrial equipment and instruments can be used.

Product Features:

1.7 inch 1280*800 res. with 40 pins LVDS interface

2. IPS lcd full viewing angle

3.high brightness up to 450nits

4.high contrast 800:1

5. TSD have full ranges of TFT display from 0.96 inch to 32 inch, customized design are warmly welcome.
