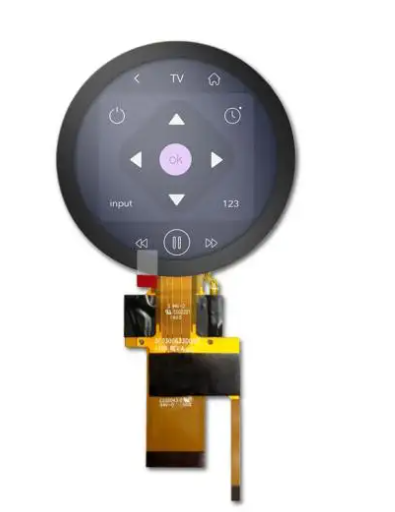

TSD RGB 3.0 inch round TFT Touch Screen 432xRGBx432 Resolution

Model Name:TST030GGU-01C

Resolution: 432xRGBx432

Viewing angle: All

Brightness: 1000

CTP: Yes

Interface: RGB

Operating Temperature: -20~70

Storage Temperature: -30~80

Description:

TST030GGU-01C is a transmission type color active matrix liquid crystal display (LCD), using amorphous thin film transistor (TFT) as a switching device. This product is composed of TFTLCD panel, driver IC, FPC, PCB board, backlight and capacitive touch screen. The active display area is a 74.3904x74.3904 measurement on the diagonal, with an active resolution of 432xRGBx432. This 3.0 inch LCD can be used to display pictures and text, and it's with standard Capacitive touch screen.

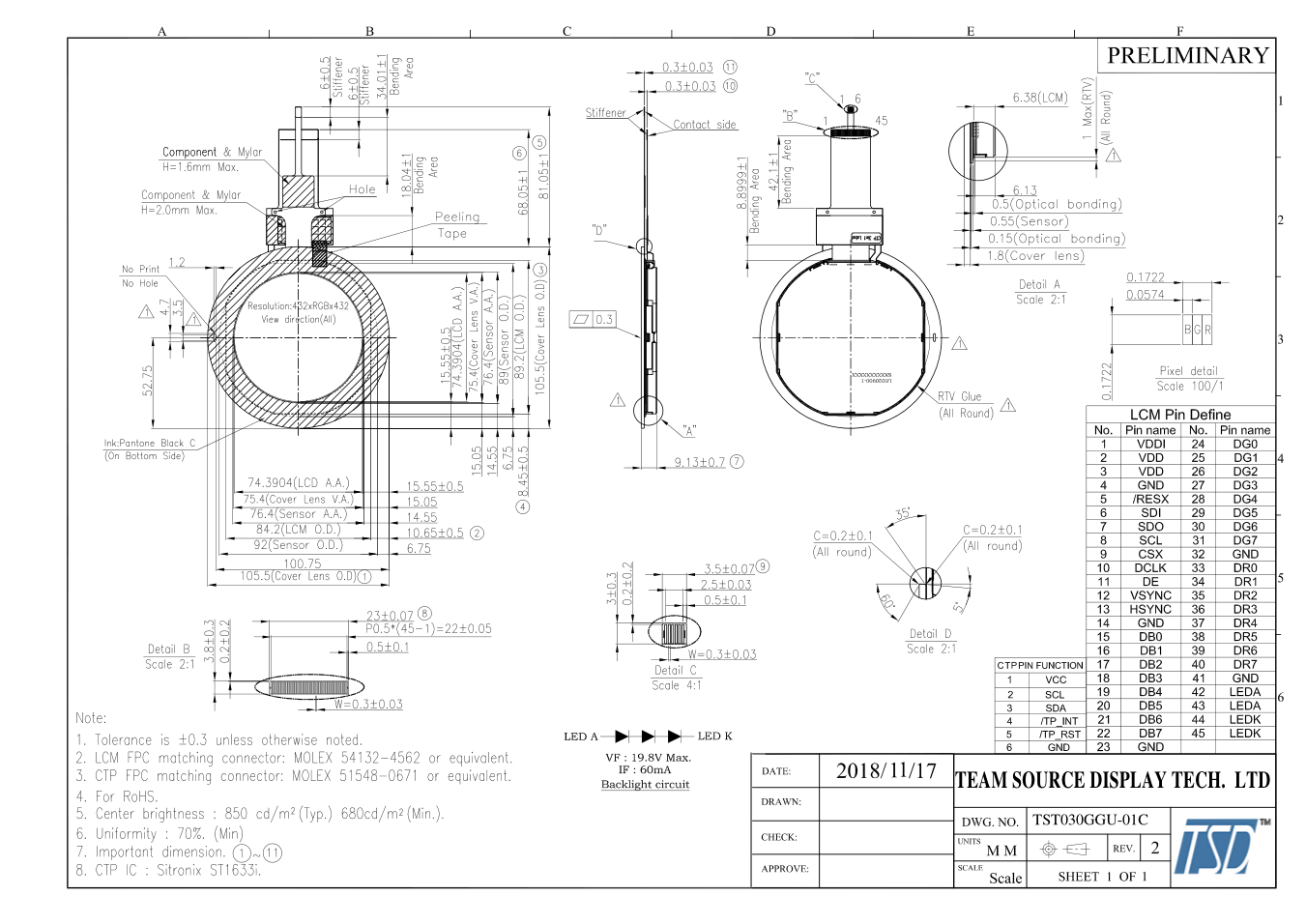

Drawing:

Specifications:





General Specification

Part No.

TST030GGU-01C

Outline Dimension(mm)

84.2x89.2

Active Area(mm)

74.3904x74.3904

Resolution(dots)

432xRGBx432

Operating temperature(°C)

-20 ~ +70°C

Storage temperature(°C)

-30 ~ +80°C

Brightness

1000cd/m2

Touch panel

Yes

Pixel arrangement

RGB-stripe

Display mode

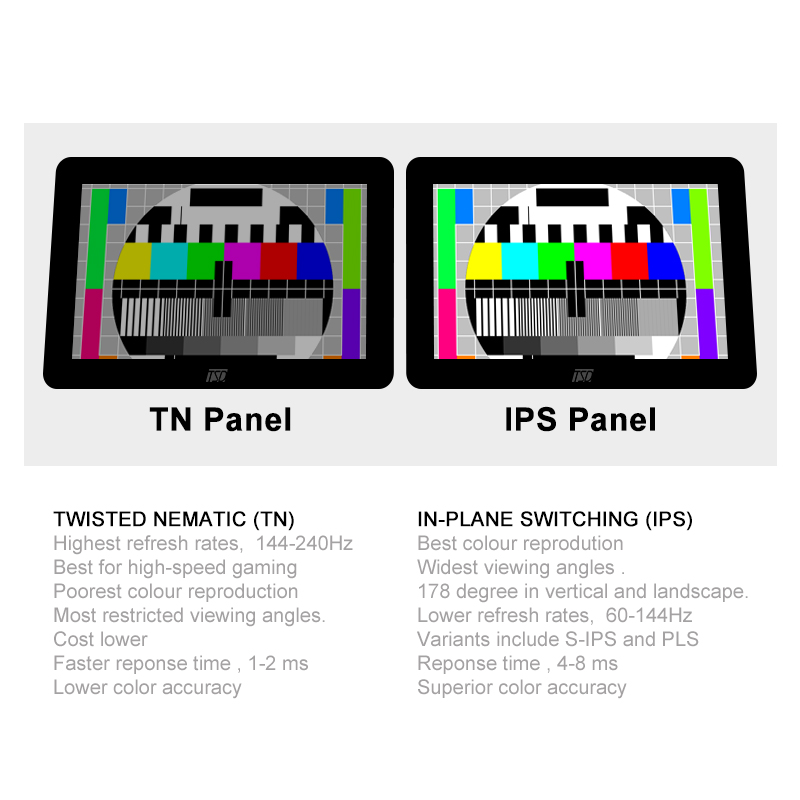

Normal black, IPS

Surface treatment

Antiglare

View direction

All o'clock

Weight(g)

TBD

Power Consumption(w)

Panel

TBD(Typ.)

B/L system

TBD(Typ.)

Interface

RGB

Module lifetime(Hours)

25g



Applications:



1. Office Electronic Equipment: money counting machine, office phone set, copying mechine.

2. Household Appliances: refrigerator, air conditioner, induction cooker, microwave ovens.

3. Instruments: clinical thermometer, wire tester, digital watches, electronic weight scale.

4. Medical Devices: sphygmomanometer, ECG machine

5. Sports Equipment: Running machine.

6. Industrial Control Equipment: remote control, punched-card machine.



7. Information Terminal Display: POS, PDA, Handheld devices.





Get A Quote
If you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.
Related products

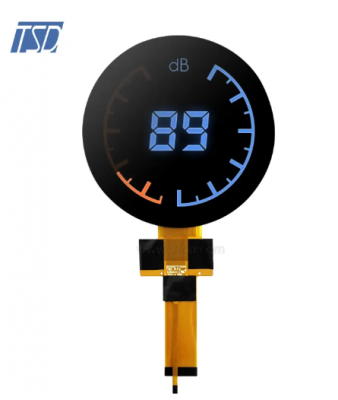

3 inch IPS round lcd
TSD 432x432 resolution 3 inch round ips tft lcd display with RGB interface
  Model Name: TST030GN06-01 LCD Type: 3 inch IPS TFT display Resolution: 432x432 Viewing angle: All o'clock Brightness: 1000 cd/m2 Driver IC: HX8363 Interface: SPI+RGB 24 bits Touch Screen: without Operating Temperature: -20 ~ +70℃ Storage Temperature: -30 ~ +80℃

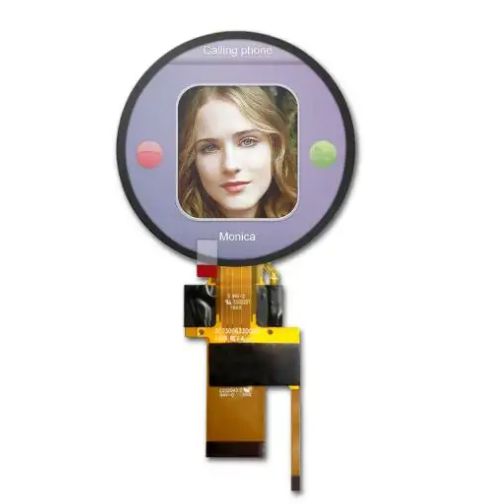

round 3 inch tft display
