TSD 432x432 resolution 3 inch round ips tft lcd display with RGB interface



  • Model Name: TST030GN06-01
  • LCD Type: 3 inch IPS TFT display
  • Resolution: 432x432
  • Viewing angle: All o'clock
  • Brightness: 1000 cd/m2
  • Driver IC: HX8363
  • Interface: SPI+RGB 24 bits
  • Touch Screen: without
  • Operating Temperature: -20 ~ +70℃
  • Storage Temperature: -30 ~ +80℃











Description:

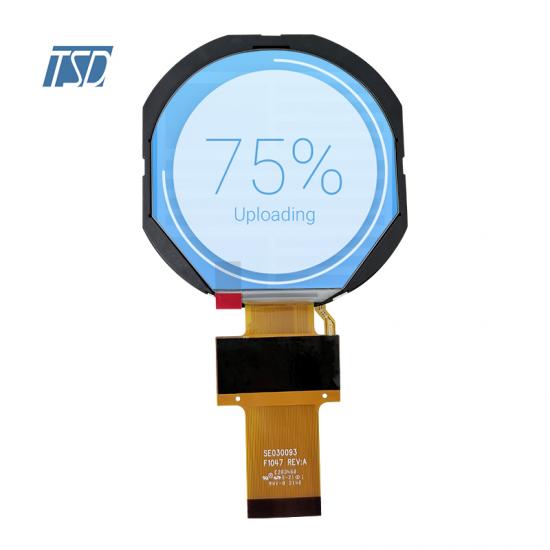

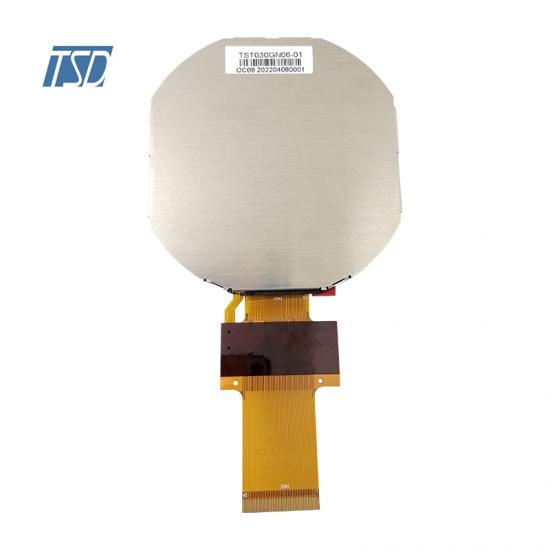

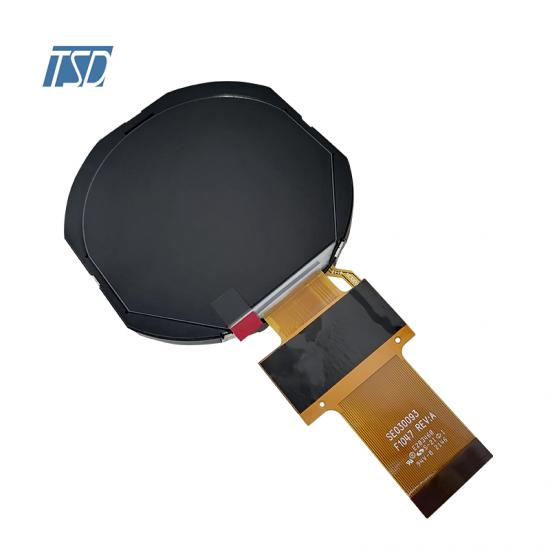

TST030GN06-01 is round 3 inch tft display module, it's IPS TFT with free viewing direction. Resolution is 432x432, interface type is SPI+RGB24bits, with 40 pins out. Outline size of LCM is 84.2(W)x89.2(H)x6.38(D)mm, LCD size is 78.2(W)x82.49(H)mm, active area is 74.39(W)x74.39(H)mm. It's using Himax driver IC HX8363. This round lcd display is with 1000 nits high brightness, widely using for outdoor products.

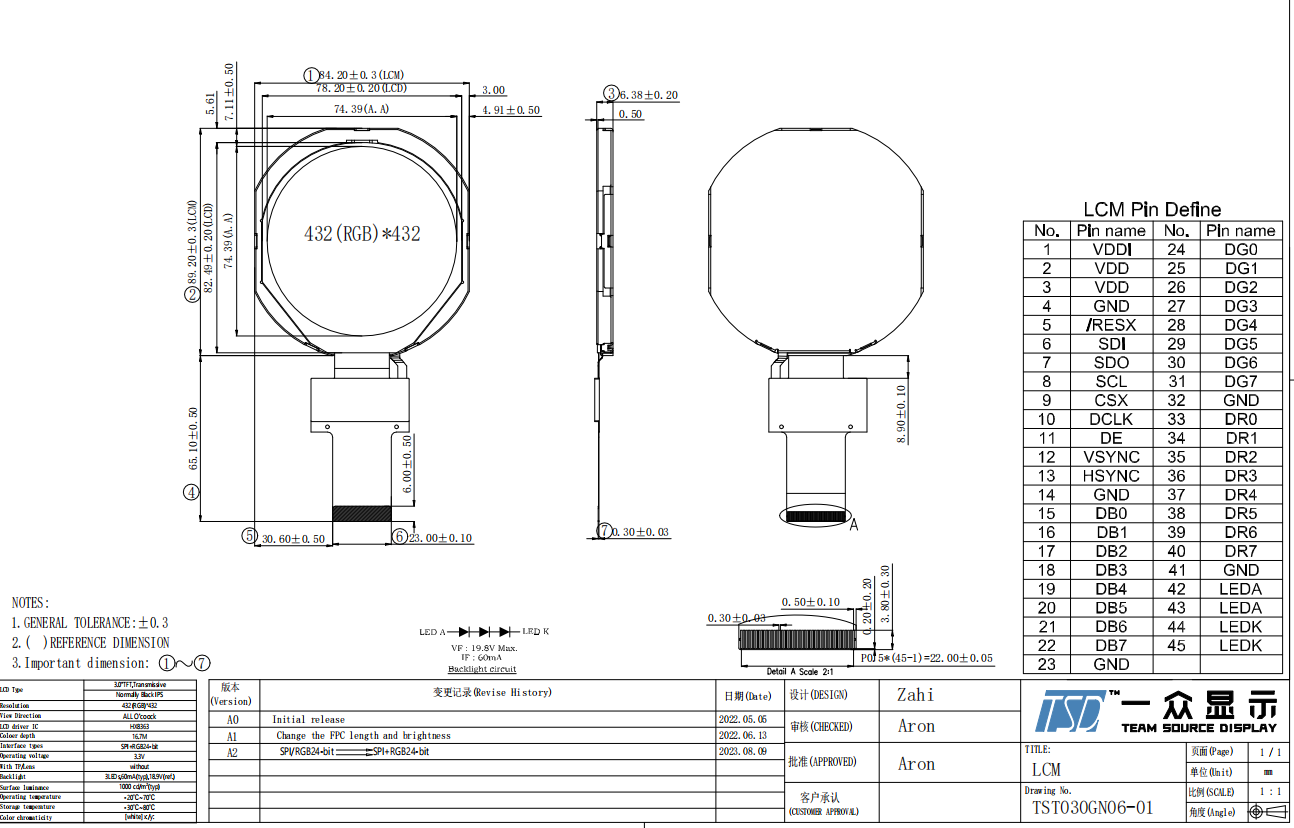

Drawing:




Specifications:



General Specification
Part No.  TST030GN06-01
Outline Dimension(mm)

84.2(W)x89.2(H)x6.38(D)

Active Area(mm) 74.39(W) x 74.39(H)
Resolution(dots) 432x (RGB) × 432
Operating temperature(°C) -20 ~ +70°C
Storage temperature(°C) -30 ~ +80°C
Number of Pixel(pixels) 432(H)xRGBx432(V)
Touch panel  without
Driver IC HX8363
Pixel arrangement RGB-stripe
Display mode Normal black, IPS, 3inch TFT
Surface treatment Antiglare
View direction  All o'clock
Brightness 1000 cd/m2
Power Consumption(w) Panel TBD(Typ.)
B/L system TBD(Typ.)
Interface SPI+RGB24 bits
Module lifetime(Hours) 30,000-50,000





Pins Description
Pin No.  Symbol Description
1 VDDI Power supply for interface system
2 VDD Power supply for analog system
3 VDD Power supply for analog system
4 GND Ground
5 /RESX This signal will reset the device and must be applied toproperly initialize the chip. Signal is active low.
6 SDI Serial data input signal.
7 SDO Serial data output singal.
8 SCL Serial data clock signal.
9 CSX Chip select input pin ("Low" enable).
10 DCLK Pixel clock signal.
11 DE Data enable signal.
12 VSYNC
Vertical sync.
13 HSYNC Horizontal sync.
14 GND Ground
15~22 DB0~DB7 RGB Data bus.
23 GND Ground
24~31 DG0~DG7 RGB Data bus.
32 GND Ground
33~40 DR0~DR7 RGB Data bus.
41 GND Ground
42 LEDA
Power Supply for LED+
43 LEDA
Power Supply for LED+
44 LEDK
Power Supply for LED-
45 LEDK Power Supply for LED-






Applications:



For TSD 3 inch round TFT display, it's widely using for Industrial automation, electric power, telecommunications, environmental protection, medical care, finance, petroleum, chemical industry, transportation, energy, geology, metallurgy, public inquiry and monitoring, smart home appliances, transportation rails, data computer rooms, charging piles, electric power medical, and national defenser, shared equipment and other industries and fields.
