TSD 1024×768 resolution 15 inch IPS tft automotive grade lcd module with LVDS interface

  • Model Name: TST150XGCI-L01
  • LCD Type: 15 inch TFT LCD display
  • Resolution: 1024*768
  • Viewing angle: IPS all viewing angle
  • Brightness: 500 cd/m2
  • Interface: LVDS
  • Touch Screen: without
  • Operating Temperature: -30 ~ +80℃
  • Storage Temperature: -40 ~ +80℃



Description:

TSD TFT item number TST150XGCI-L01 is 15 inch, IPS TFT LCD, 1024*768 resolution, contrast ratio 3000:1, super thin LCD panel suitable for advertizing/monitor/ tablet application. LVDS inetrface TFT lcd module, can do with touch panel. also can support customized Cover lens with your ideal logo.



Specification
Part No. 15 inch IPS TFT
Outline Dimension(mm) 326.5x253.5x9.7
Active Area(mm) 304.128x228.096
Operating temperature(°C) -30 to 80
Storage temperature(°C) -40 to 80
Resolution(dots) 1024xRGBx768
Touch panel without
Dot Pitch 0.0642(W)x0.1790(H)
Pixel arrangement RGB Vertical stripe
Display mode Normal black,IPS, 15 inch TFT
Brightness 350 nits
View direction  ALL
Weight(g) TBD
Power Consumption(w) Panel 0.226(Typ.)
B/L system 1.674(Typ.)
Interface LVDS
Module lifetime(Hours) 50,000-100,000

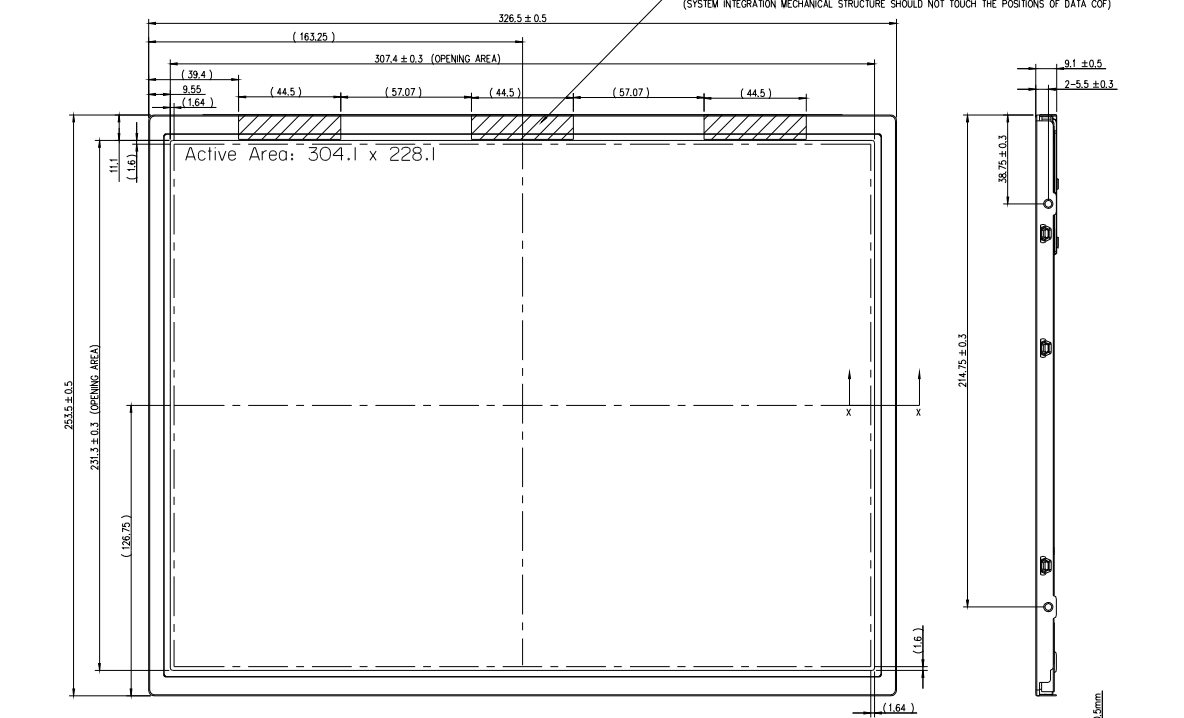

Drawing:

Interface Description:

Pin No.  Symbol Description
1 VCC Power Supply +3.3V(typical)
2 VCC Power Supply +3.3V(typical)
3 NC No Connection (Reserve for INX test)
4 LR/UD

Reverse Scan Control

H or NC = Normal Mode.L = Horizonta/ Vertical Reverse Scan

5 RX0- LVDS Differential Data Input
6 RX0+

LVDS Differential Data Input

7 GND Ground
8 RX1- LVDS Differential Data Input
9 RX1+ LVDS Differential Data Input
10 NC No Connection (Reserve for INX test)
11 RX2- LVDS Differential Data Input
12 RX2+ LVDS Differential Data Input
13 GND Ground
14 RXCLK- LVDS Differential Data Input
15 RXCLK+ LVDS Differential Data Input
16 GND Ground
17 RX3+ LVDS Differential Data Input
18 RX3+ LVDS Differential Data Input
19 NC No Connection (Reserve for INX test)
20 SEL68

LVDS 6/8 bit select function control,

High- 6bit Input Mode  Low or NC- 8bit Input Mode

Applications:



For our 15 inch LCD display TST150XGCI-L01, it's widely using in industrial machine and some automotive grade application

Product Features:

1.15 inch 1024*768 res. with 20 pins LVDS interface

2. IPS lcd full viewing angle

3.FHD high definition

4.high contrast 3000:1

5. TSD have full ranges of TFT display from 0.96 inch to 32 inch, customized design are warmly welcome.
