Description:

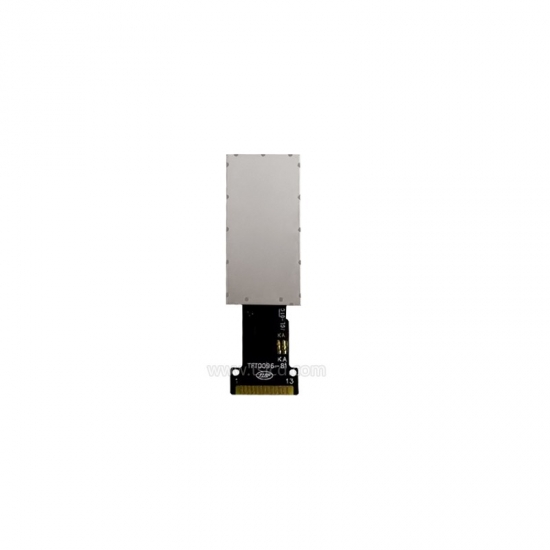

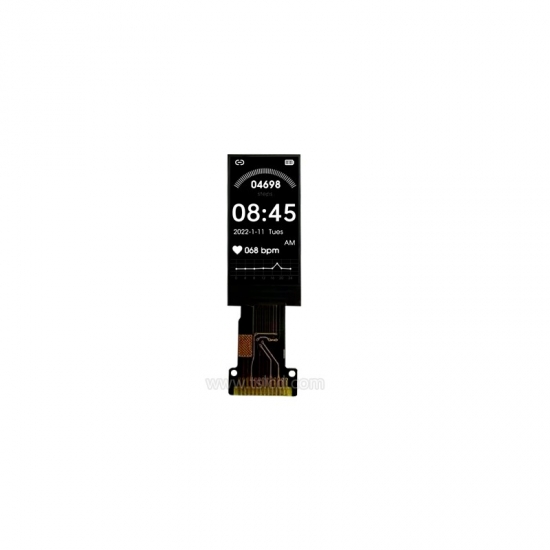

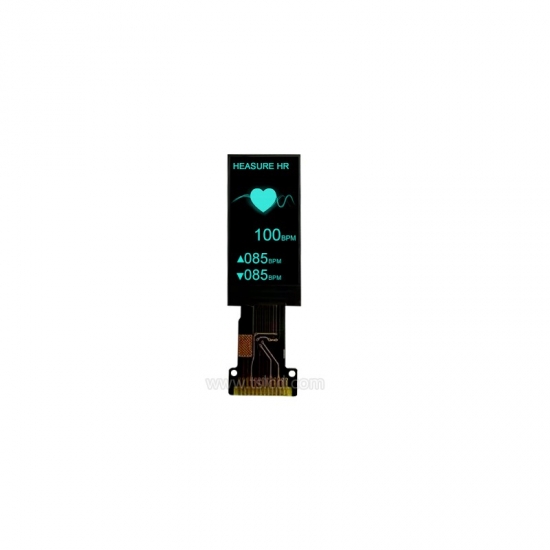

TST09607A is 0.96 inch 80x (RGB) × 160 resolution LCD display with 4 wire SPI interface, standard brightness is 600 cd/m2, which is suitable for indoor and outdoor application. For this 0.96 inch lcd module, driver IC is ST7735, viewing direction is All o’clock , color depth is 65KM, this lcd module is with standard Capacitive touch panel, customized design are also welcome.

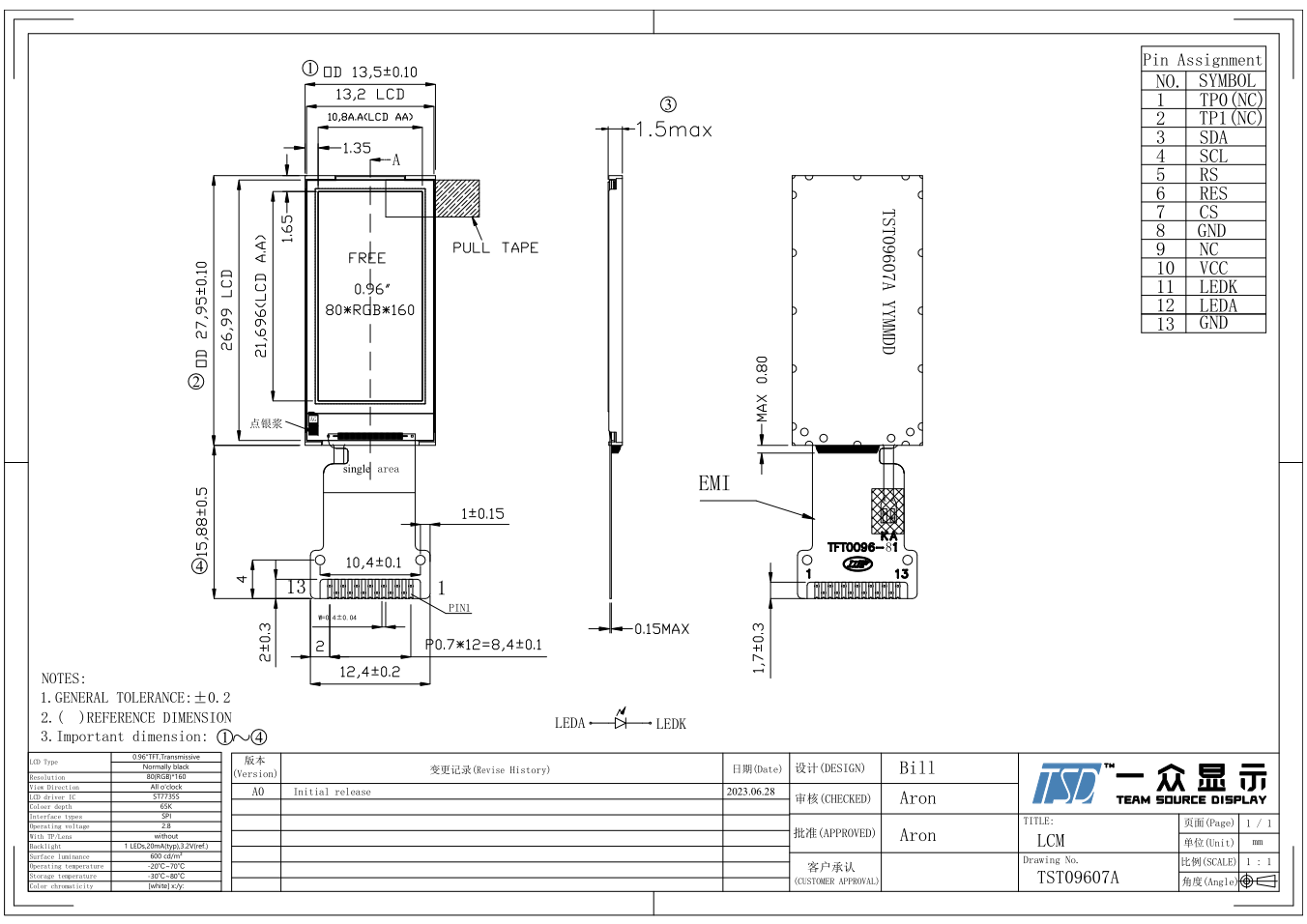

Drawing:
|
General Specification |
||
|
Part No. |
TST09607A |
|
|
Outline Dimension(mm) |
13.5W) x 27.95(H) x 1.5(D) |
|
|
Active Area(mm) |
10.8(W) x 21.696 (H) |
|
|
Resolution(dots) |
80x (RGB) × 160 |
|
|
Operating temperature(°C) |
-20 ~ +70°C |
|
|
Storage temperature(°C) |
-30 ~ +80°C |
|
|
Number of Pixel(pixels) |
320RGB(H)xRGBx480V) |
|
|
Touch panel |
CTP |
|
|
Driver IC |
ST7735S |
|
|
Pixel arrangement |
RGB Vertical stripe |
|
|
Back light type |
1 LED,20mA ， 3.2V |
|
|
Surface treatment |
Antiglare |
|
|
View direction |
All o’clock |
|
|
Weight(g) |
TBD |
|
|
Power Consumption(w) |
Panel |
TBD(Typ.) |
|
B/L system |
TBD(Typ.) |
|
|
Interface |
4 wire SPI |
|
|
Color depth |
1 LED,20mA ， 3.2V |
|
|
Pins Description |
||
|
Pin No. |
Symbol |
Description |
|
1 |
TP0 |
No Connection |
|
2 |
TP1 |
No connect |
|
3 |
SDA |
the serial data input/output signal |
|
4 |
SCL |
the serial clock input signal |
|
5 |
RS |
Data/Command Selection pin |
|
6 |
RES |
Reset input signal,active low |
|
7 |
CS |
Chip select signal.Low Enable |
|
8 |
GND |
System Ground. (0V) |
|
9 |
NC |
|
|
10 |
VCC |
Power supply +2.8V |
|
11 |
LEDK |
Backlight K Cathode input pin. |
|
12 |
LEDA |
Backlight A Aothod input pin. |
|
13 |
GND |
System Ground. (0V) |
Applications:
1. Office Electronic Equipment: money counting machine, office phone set, copying mechine.
2. Household Appliances: refrigerator, air conditioner, induction cooker, microwave ovens.
3. Instruments: clinical thermometer, wire tester, digital watches, electronic weight scale.
4. Medical Devices: sphygmomanometer, ECG machine
5. Sports Equipment: Running machine.
6. Industrial Control Equipment: remote control, punched-card machine.
7. Information Terminal Display: POS, PDA, Handheld devices.
Security Products: elevator controller, electronic indicator.
