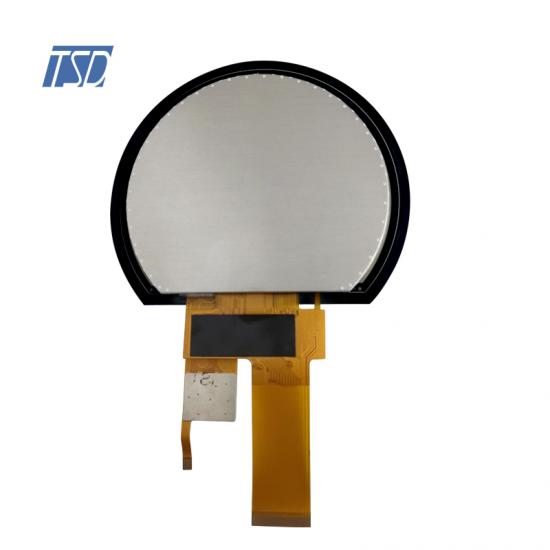

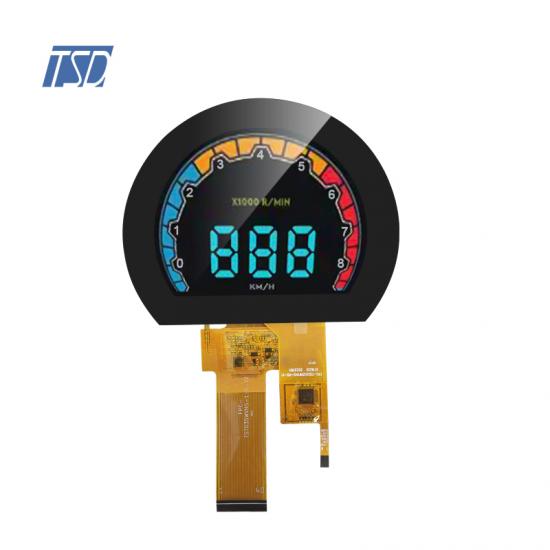

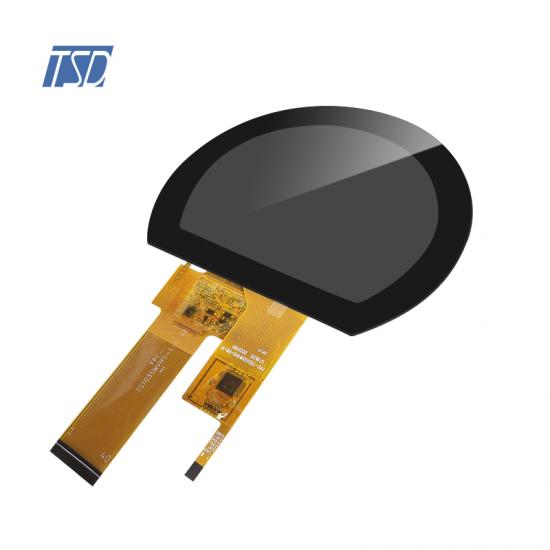

TSD 3.5 inch 800x640 resolution automotive display with touch screen

  • Model Name: TST035WVHS-110
  • LCD Type: 3.5 inch tft lcd display
  • Resolution: 800x640
  • Viewing angle: All o'clock
  • Brightness: 1100 cd/m2
  • Driver IC: FL5892C
  • Interface: RGB
  • Touch Screen: without
  • Operating Temperature: -30 ~ +85℃
  • Storage Temperature: -40 ~ +90℃

Description:



TST035WVHS-110 is 3.5 inch IPS TFT LCD module with RGB interface, available to make the customization of touch screen. The shape is sector with high resolution 800x640. Outline dimension is 97.6x83.79mm, thickness is 4.04mm. Active area is 90x72mm. This lcd display is coming out with 40 pins RGB interface. LCD driver IC is FL5892C, operating voltage is 2.8V~3.3V. Working temperature is -30 to 85℃, storage temperature is  -40 to +90℃.




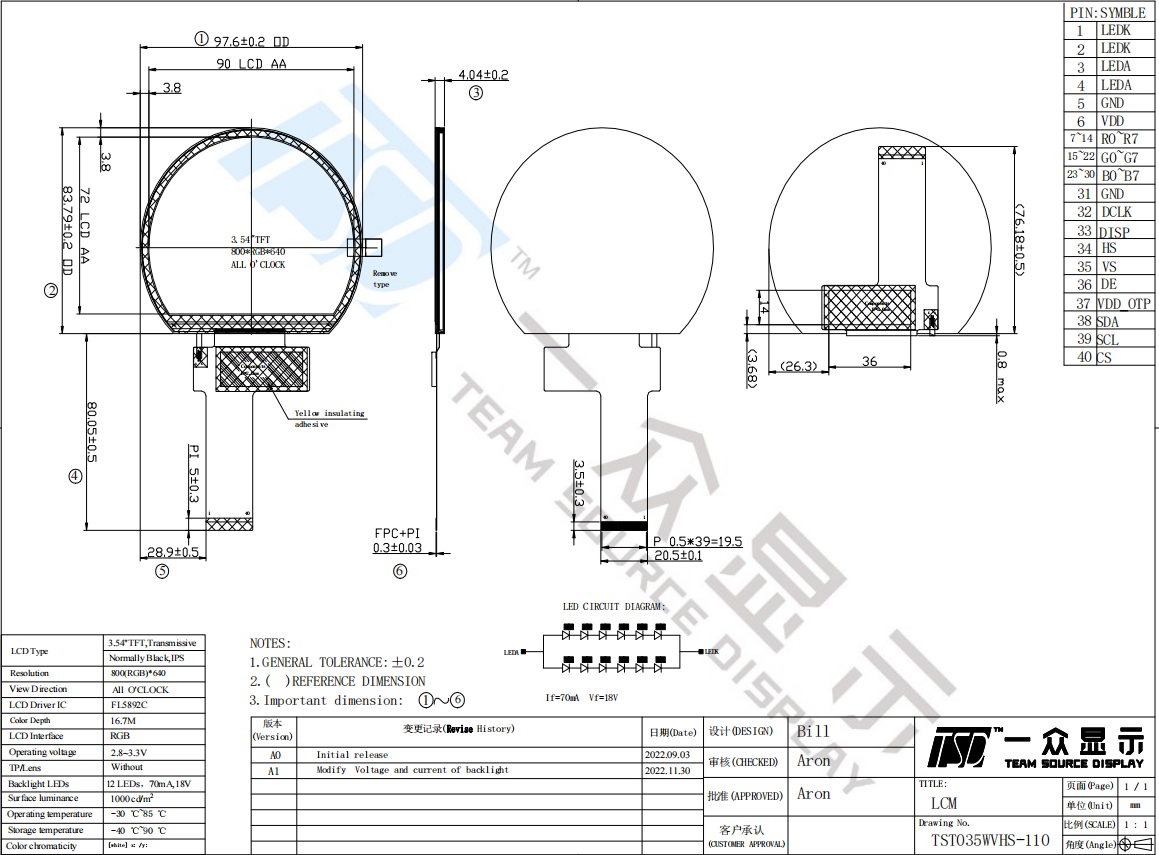

Drawing:




Specifications:



General Specification
Part No.  TST035WVHS-110
Outline Dimension(mm)  97.6x83.79x4.04
Active Area(mm) 90x72
Resolution(dots) 800x640
Operating temperature(°C) -30 ~ +85°C
Storage temperature(°C) -40 ~ +90°C
Number of Pixel(pixels) 800(H)xRGBx640(V)
Touch panel  without
Driver IC FL5892C
Pixel arrangement RGB-stripe
Display mode Normal black,IPS, 3.54 inch TFT
Surface treatment Antiglare
View direction  All
Weight(g) TBD
Power Consumption(w) Panel TBD(Typ.)
B/L system TBD(Typ.)
Interface RGB
Module lifetime(Hours) 30,000-40,000





Pins Description
Pin No.  Symbol Description
1-2 LEDK1-LEDK2 Backlight K Cathode input pin
3-4 LEDA1-LEDA2 Backlight A  Aothod inout pin
5 GND System Ground (0V)
6 VDD Power supply 2.8V~3.3V
7~!4 R0~R7 Red data
15~22 G0~G7 Green data
23~30 B0~B7 Blue data
31 GND System Ground (0V)
32 DCLK Dot clock signal
33 DISP Display on/off
34 HS Horizontal synv signal
35 VS Vertical sync signal
36 DE A data enable input signal
37 VDD_OTP/NC No connect
38 SDA/NC Serial data input/output signal/ No connect
39 SCL/NC Serial clock signal / No connect
40 CS/NC Chip select signal / No connect




Applications:



With the continuous development of technology, car screens are increasingly used in modern Vehicle, including two wheels, three wheels and four wheels. As an intelligent infotainment device, the vehicle screen not only improves the driving experience of drivers and passengers, but also brings more convenience and safety to users.

For our 3.5 inch 800x640 LCD display TST035WVHS-110, it's popular in two wheels. TSD also have the other different sizes, please contact us to get more details freely.
