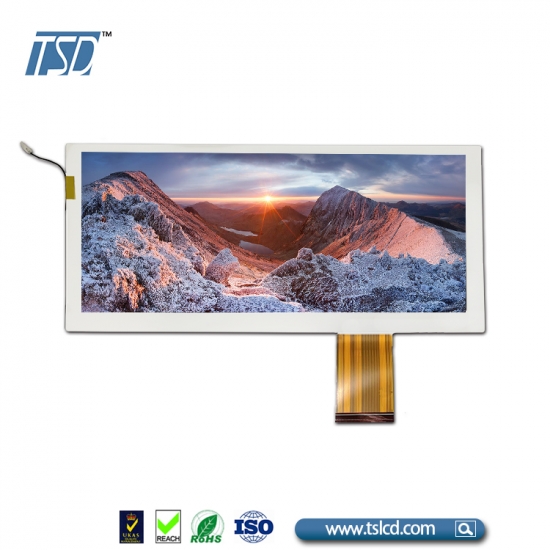

TSD 1920x480 resolution 8.88 inch IPS LCD screen bar type with LVDS interface

  • Model Name: TST088WZHS-02
  • LCD Type: 8.8 inch TFT LCD display
  • Resolution: 1920*480
  • Viewing angle: IPS all viewing angle
  • Brightness: 600 cd/m2
  • Interface: MIPI
  • Touch Screen: without
  • Operating Temperature: -20 ~ +70℃
  • Storage Temperature: -30 ~ +80℃



Description:



TST088WZHS-02 is 8.8 inch 1920*480 resolution LCD display with LVDS interface, standard brightness is 600cd/m2. For this 8.8 inch TFT LCD module,   viewing direction is Free. color depth is 16.7M, operating voltage is 3.3V, outline size is 231.3x64.3x4.8mm. AA area is 218.88x54.72mm.Contrast is 1000:1. this lcd module can be with resistive or capacitive touch panel, customized design are also welcome. This 8.8 inch tft lcd is suitable used in handheld device..



Specification
Part No. TST088WZHS-02, 8.8 inch lcd panel
Outline Dimension(mm) 231.3x64.3x4.8
Display Area(mm) 218.88x54.72
Operating temperature(°C) -20-70
Storage temperature(°C) -30-80
Touch panel Available to custom
Dot Pitch 0.0642(W)x0.1790(H)
Pixel arrangement RGB Vertical stripe
Display mode Normal black,Transmissive, 8.88 inch TFT
Surface treatment Antiglare
Brightness
600
Power Consumption(w) Panel 0.226(Typ.)
B/L system 1.674(Typ.)
Interface MIPI
Module lifetime(Hours) 50,000-100,000

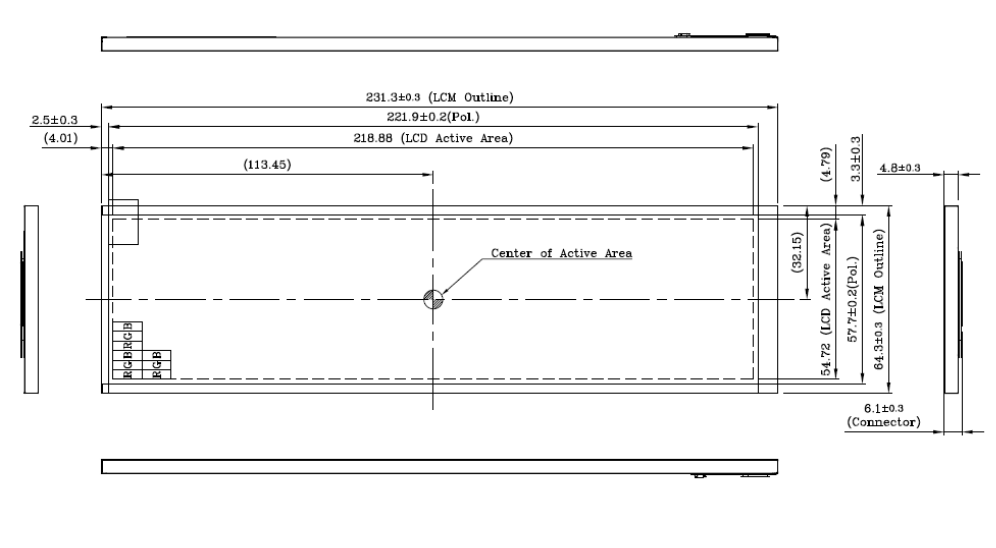

Drawing:

Interface Description:

Pin No.  Symbol I/0 Description
1 GND P Ground
2 NC - No connection
3 LED+ P LED Anode
4 LED+ P LED Anode
5 NC - No connection
6 LED- P LED Cathode
7 LED- P LED Cathode
8 NC - No connection
9 GND P Ground
10 NC - No connection
11 AVDD P Power supply for analog circuit
12 NC - No connection
13 VGH P Power supply for analog circuit
14 NC - No connection
15 VGL P Power supply for analog circuit
16 NC - No connection
17 GND P Ground
18 VCOM P Power supply for common voltage
19 GND p Ground
20 GND P Ground
21 RESET I Global reset
22 VDD P Power supply for digital circuits
23 STBYB I Standby mode
24 TP Sync O Sync signal for touch panel
25 GND P Ground
26 DOP I MIPI Data Input Lane0 positive-end
27 DON I MIPI Data Input Lane0 negtive-end
28 GND P Ground
29 D1P I MIPI Data Input Lane1 positive-end
30 D1N I MIPI Data Input Lane1 negtive-end
31 GND P Ground
32 CLKP I MIPI Clock Input positive-end
33 CLKN I MIPI Clock Input negtive-end
34 GND P Ground
35 D2P I MIPI Data lnput Lane2 positive-end
36 D2N I MIPI Data Input Lane2 negtive-end
37 GND P Ground
38 D3P I MIPI Data Input Lane3 positive-end
39 D3N I MIPI Data Input Lane3 negtive-end
40 GND P Ground

Applications:

For our 8.8 inch LCD display TST088WZHS-02, it's widely using in handheld device.

Product Features:

1. 8.8 inch 1920*480 res. with 40pins MIPI interface

2. IPS lcd : full viewing angle

3.high brightness up to 600nits

4.high contrast 1000:1

5. TSD have full ranges of TFT display from 0.96 inch to 32 inch, customized design are warmly welcome.

Get A Quote
If you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.
