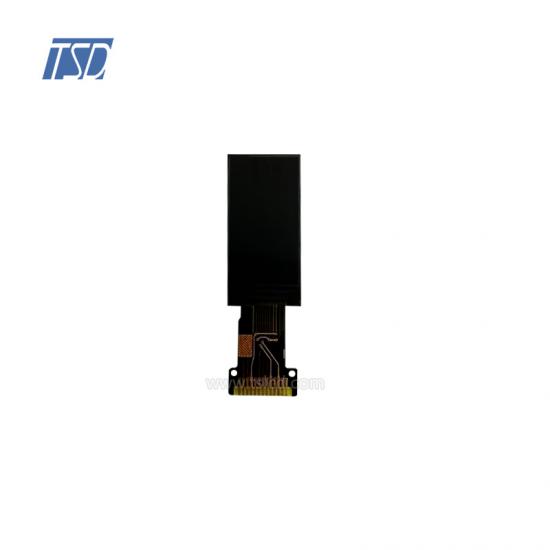

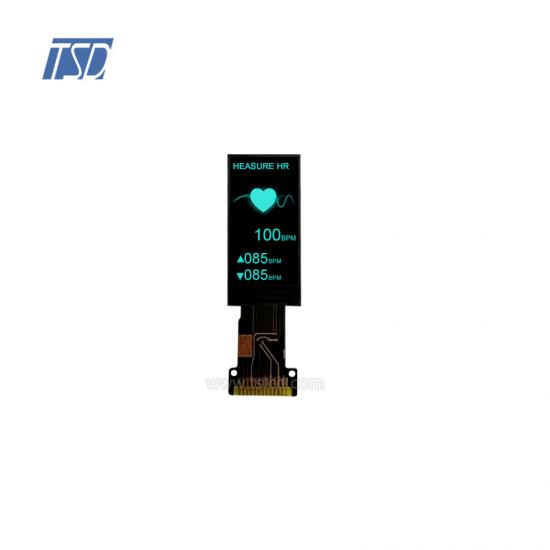

600nits high brightness IPS TFT 0.96inch 80x160 resolution

  • Model Name: IPS TFT 0.96inch TST09607A
  • LCD Type: 0.96 inch IPS TFT  80x160 resolution
  • Resolution: 80x160 resolution
  • Viewing angle: All o'clock
  • Brightness: high brightness 600 cd/m2
  • Driver IC: ST7735S
  • Interface: SPI (13 pins)
  • Touch Screen: without capacitive touch panel
  • Operating Temperature: -20 ~ +70℃
  • Storage Temperature: -30 ~ +80℃

Description:

TST09607A is a transmissive type color active matrix TFT(Thin Film Transistor) liquid crystal display (LCD) that uses amorphous silicon TFT as a switching device. This module is composed of a TFT LCD module, a driver circuit, and a back-light unit.The resolution of a 0.96” contains 80(RGB)X160 dots and can display up to 65k colors.

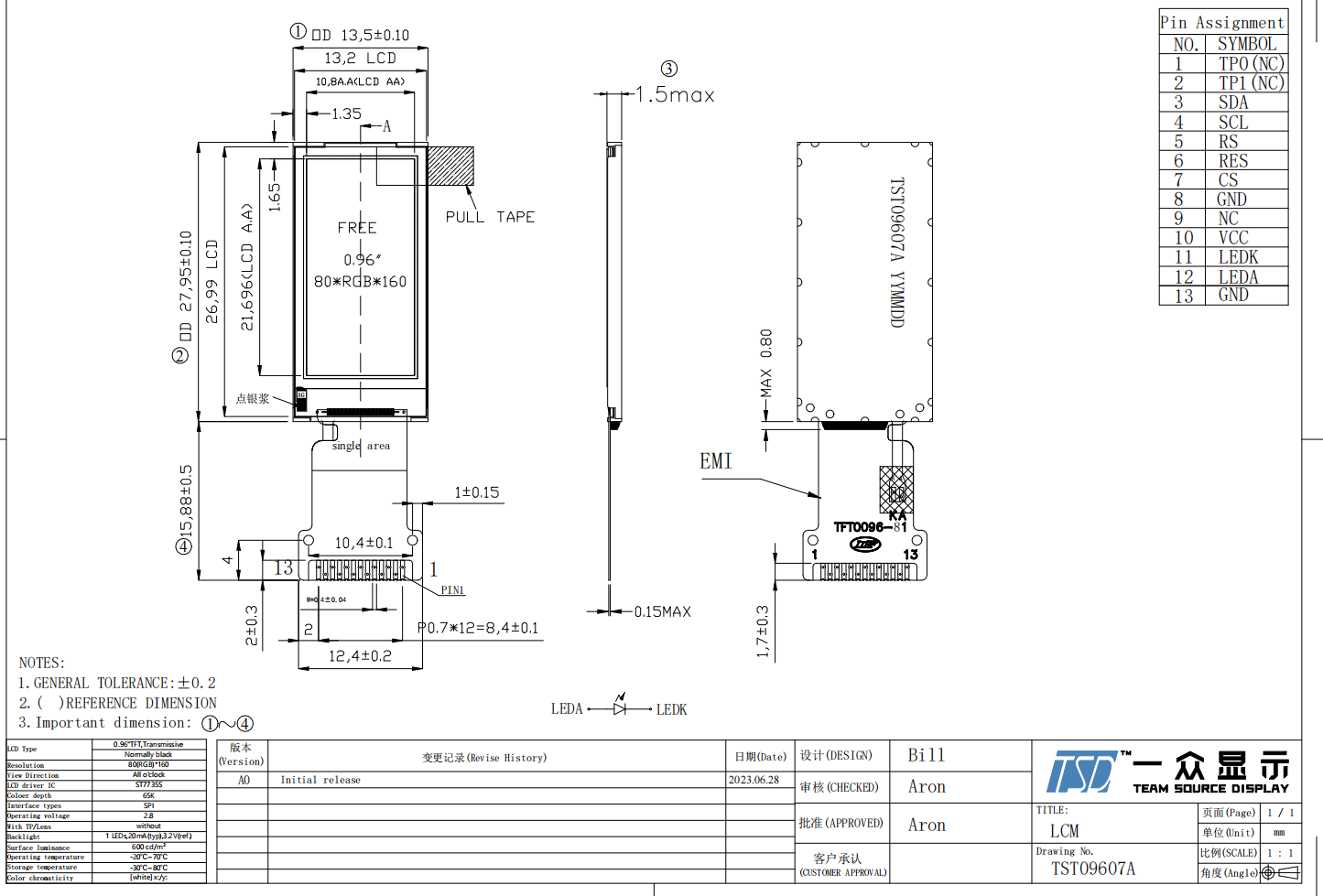

Drawing:




Specifications:



General Specification
Part No.  TST09607A
Outline Dimension(mm)

13.5x27.95x1.5

Active Area(mm) 10.8x21.696
Resolution(dots) 80x160
Operating temperature(°C) -20 ~ +70°C
Storage temperature(°C) -30 ~ +80°C
Brightness 600 cd/m2
Touch panel  w/o CTP
Driver IC ST7735S
Pixel arrangement RGB-stripe
Display mode Normally black, IPS, 0.96 inch TFT
Surface treatment Antiglare
View direction  All
Weight(g) TBD
Power Consumption(w) Panel TBD(Typ.)
B/L system TBD(Typ.)
Interface SPI
Module lifetime(Hours) TYP 30,000 hours





Pins Description
Pin No.  Symbol
1 TPO (NC)
2 TP1 (NC)
3 SDA
4 SCL
5 RS
6 RES
7 CS
8 GND
9 NC
10 VCC
11 LEDK
12 LEDA
13 GND




Applications:



This 0.96 inch lcd display is suitable for IoT, HMI, HVAC, temperature measurement device etc.






Product Features:



TST09607A is a standard TFT display module, This model is 0.96 inch diagonally resolution in 80 horizontal by 160 vertical pixel array). Each pixel is divided into Red, Green, Blue dots, and this panel can display 65K/262K colors. Regarding backlight, brightness is 600 nitS and 1 LED , current is 20mA  and typ voltage 3.0V.
