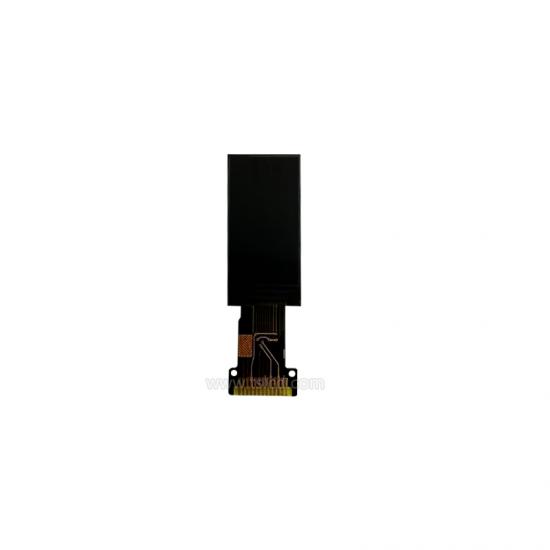

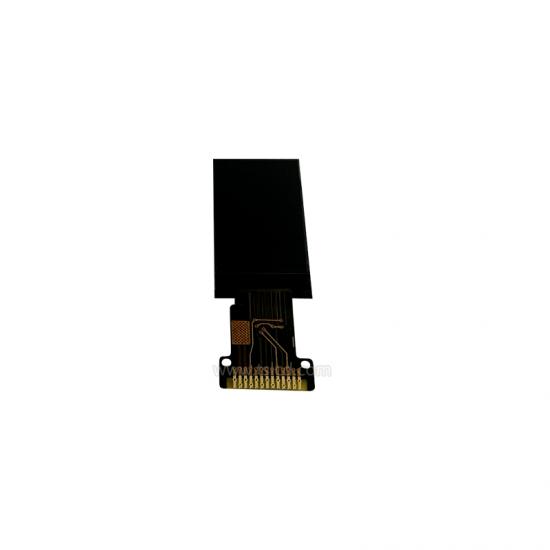

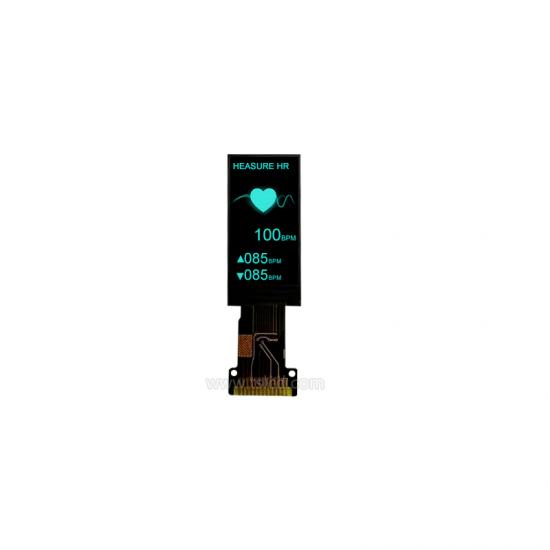

Custom 0.96 inch CTP Capacitive Touch tft lcd TST09607A

Model Name:TST09607A

LCD Type:a-Si TFT,Transmissive,Normally Black

Resolution:80x (RGB) × 160

Viewing angle: All o’clock

Brightness:600

Driver IC: ST7735S

Interface:4 wire SPI

Touch Screen:without

Operating Temperature:-20~-70

Storage Temperature: -30~-80

Description:



TST09607A  is a transmission type color active matrix liquid crystal display (LCD), using amorphous thin film transistor (TFT) as a switching device. This product is composed of TFTLCD panel, driver IC, FPC, PCB board, backlight and capacitive touch screen. The active display area is a 10.8(W) x 21.696 (H) measurement on the diagonal, with an active resolution of 80x (RGB) × 160. This 0.96 inch LCD can be used to display pictures and text, and it's without standard Capacitive touch screen.

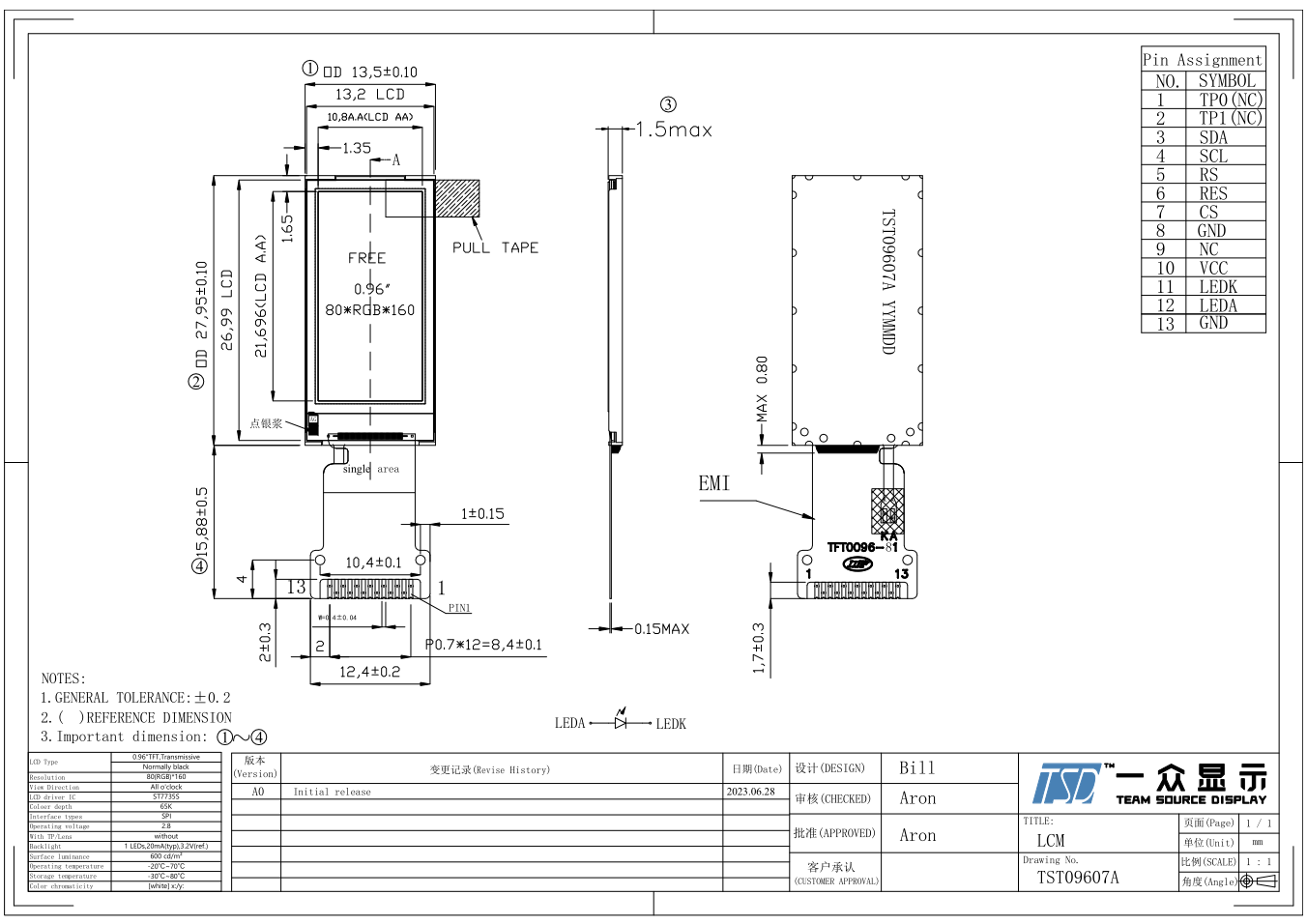

Drawing:



Specifications:



General Specification

Part No.

TST09607A

Outline Dimension(mm)

13.5W) x 27.95(H) x 1.5(D)

Active Area(mm)

10.8(W) x 21.696 (H)

Resolution(dots)

80x (RGB) × 160

Operating temperature(°C)

-20 ~ +70°C

Storage temperature(°C)

-30 ~ +80°C

Dot Pitch (W × H)
0.135 x 0.1356

Touch panel

Without

Driver IC

ST7735S

Pixel arrangement

RGB-stripe

Display mode

Normal white,TN,

Surface lum.

600

View direction

Normally Black

Weight(g)

TBD

Power Consumption(w)

Panel

TBD(Typ.)

B/L system

TBD(Typ.)

Interface

4 wire SPI

Module lifetime(Hours)

50,000-100,000





Pins Description

Pin No.

Symbol

Description

1

TP0

No connect

2

TP1

No connect

3

SDA

the serial data input/output signal

4

SCL

the serial clock input signal

5

RS

Data/Command Selection pin

6

RES

Reset input signal,active low

7

CS

Chip select signal.

8

GND

System Ground. (0V)

9

NC

-

10

VCC

Power supply +2.8V

11

LEDK

Backlight K Cathode input pin.

12

LEDA

Backlight A Aothod input pin.

13

GND

System Ground. (0V)

 Applications:



1. Office Electronic Equipment: money counting machine, office phone set, copying mechine.

2. Household Appliances: refrigerator, air conditioner, induction cooker, microwave ovens.

3. Instruments: clinical thermometer, wire tester, digital watches, electronic weight scale.

4. Medical Devices: sphygmomanometer, ECG machine

5. Sports Equipment: Running machine.

6. Industrial Control Equipment: remote control, punched-card machine.

7. Information Terminal Display: POS, PDA, Handheld devices.

Security Products: elevator controller, electronic indicator.
