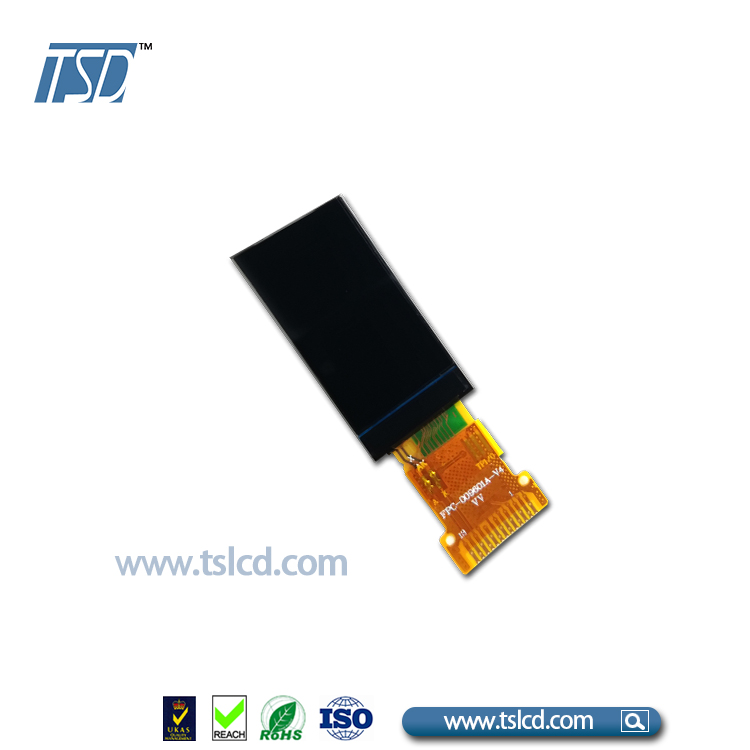

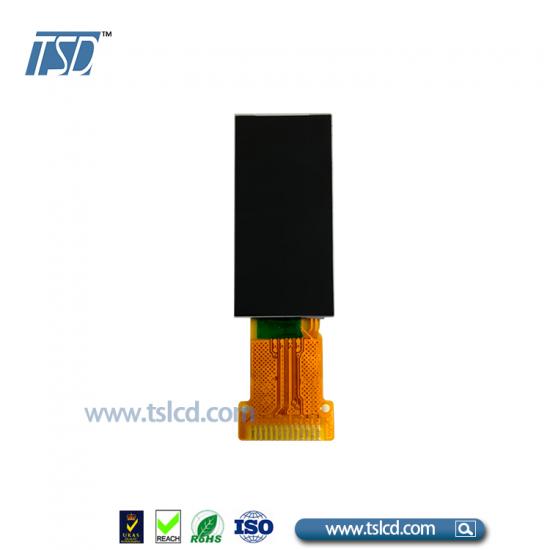

TSD 0.96 inch 80x160 small ips lcd display

  • Model Name: TST09603A
  • LCD Type: 0.96 inch TFT LCD display
  • Resolution: 80x160
  • Viewing angle: All o'clock
  • Brightness: 400 cd/m2
  • Driver IC: ST7735S
  • Interface: 4 wire SPI interface
  • Touch Screen: without Capacitive touch panel
  • Operating Temperature: -20 ~ +70℃
  • Storage Temperature: -30 ~ +80℃

Description:



TST09603A is a 0.96 inch tft lcd module in 80x160 resolution, it is 4 wire SPI interface in 13 pins, and could be customed for other pinout. The interface is 4 wire SPI interface. Backlight is 400 nits. It is suitable for both indoor and outdoor application, such as measureing device and control panel, hybrid recorders, timer, counter, power limiter. The backlight has 1 backlight LED, backlight current is 20mA and backlight voltage is 3.2V, which could be customized. This 0.96 inch TFT LCD module is designed with ST7735S, viewing direction is all o'clock, color depth is 262K, white backlight and transmissive type.

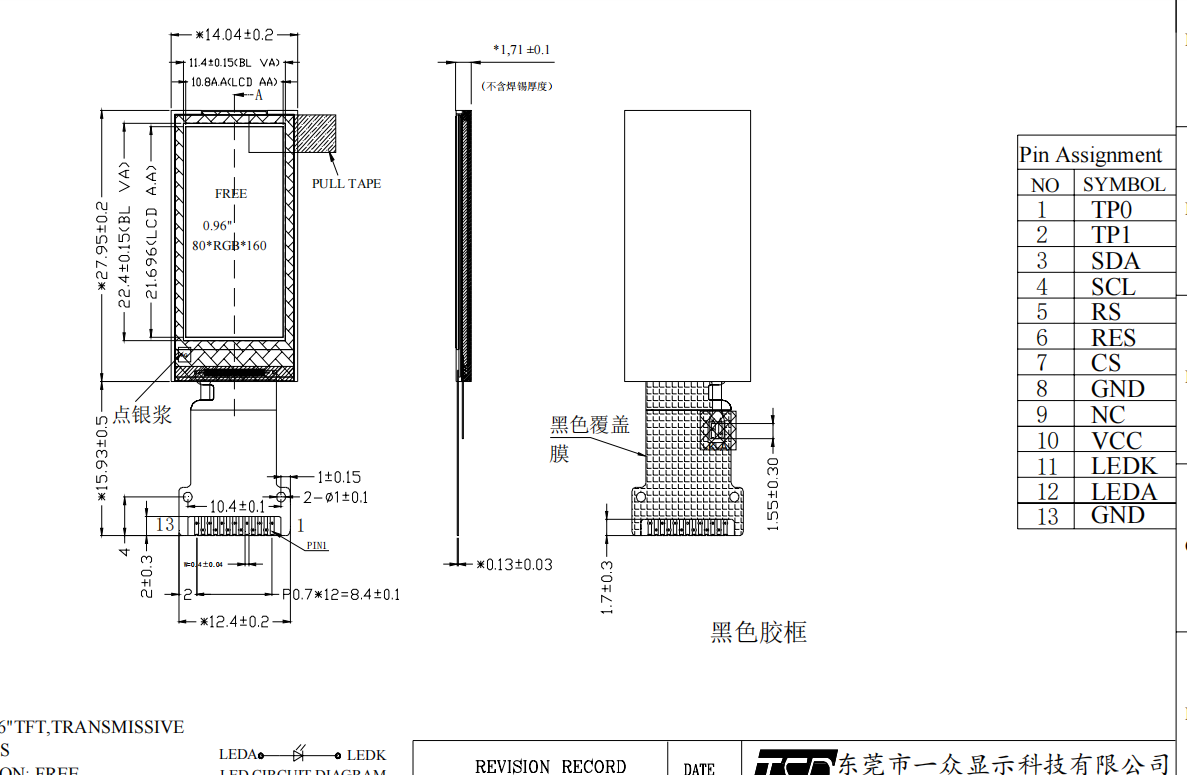

Drawing:




Specifications:



General Specification
Part No.  TST09603A
Outline Dimension(mm)

14.04x27.95x1.71

Active Area(mm) 10.8x21.7
Resolution(dots) 80x160
Operating temperature(°C) -20 ~ +70°C
Storage temperature(°C) -30 ~ +80°C
Number of Pixel(pixels) 80(H)xRGBx160(V)
Touch panel  w/o CTP
Driver IC ST7735S
Pixel arrangement RGB-stripe
Display mode Normally black, IPS, 0.96 inch TFT
Surface treatment Antiglare
View direction  All
Weight(g) TBD
Power Consumption(w) Panel TBD(Typ.)
B/L system TBD(Typ.)
Interface 4 wire SPI
Module lifetime(Hours) 20,000-30,000





Pins Description
Pin No.  Symbol Description
1 TP0 No connect
2 TP1 No connect
3 SDA the serial data input/output signal
4 SCL the serial clock input data
5 RS

data command selection pin

6 RES Reset input signal, active low
7 CS Chip select signal, low enable.
8 GND System ground (0V)
9 NC No connect
10 VCC Power supply +2.8V
11 LEDK Backlight K Cothode input pin
12 LEDA

Backlight A Aothod input pin

13 GND System ground. (0V)




Applications:



For our 0.96 inch LCD display TST09603A, normally used indoor product, such as IR temperature calibrator, we could also design touch panel to meet customer needs, to make it very intelligent life.




Product Features:



For small size tft module display, normally it is used in smart home, consumer product. This module is composed of a FOG, a driver-circut, and a back-light unit.The resolution of a 0.96" contains 80x160 dots and can display up to 262k colors.
