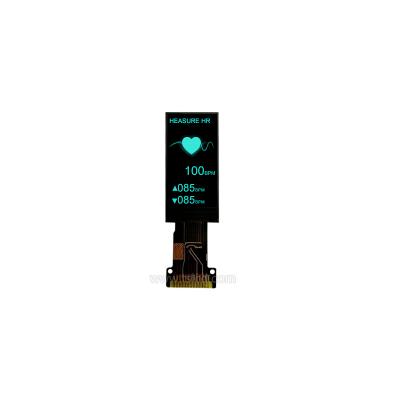

TSD 0.96 Inch TFT LCD Customization lcd panel 80 x (RGB) × 160 resolution

LCD Type: TFT, Transmissive, Normally black/ 80*160

Resolution: 80x (RGB) × 160

View Direction: ALL

LCD driver IC: ST7735S

Interface types: 4-SPI

Weight: TBD

Operating temperature: -20℃~70℃

Storage temperature: -30℃~80℃

Description:

This display module is a transmissive type color active matrix TFT(Thin film transistor) liquid crystal display that uses amorphous silicon TFT as a switching device. This module is composed of a TFT LCD module, a driver circuit, and a back light  unit.The resolution of a 0.96 inch contains 80*160 dots and can be display up to 65K colors.

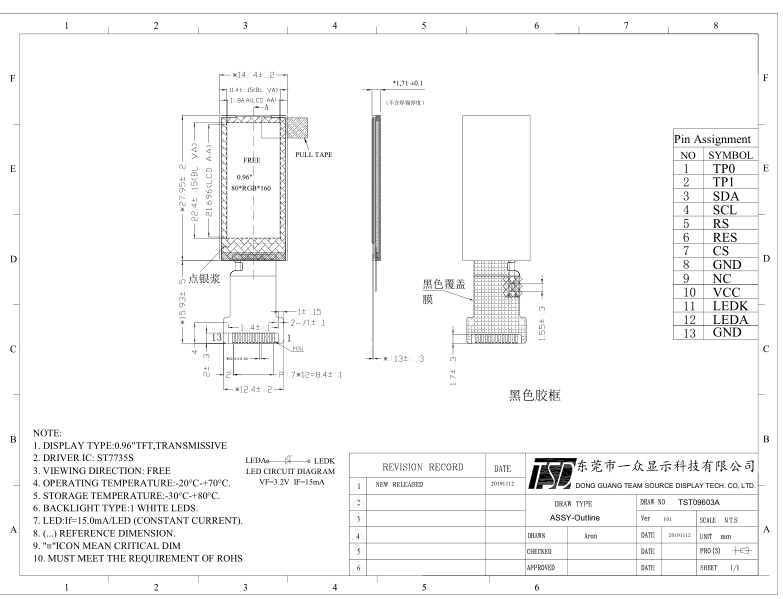

Drawing:





Specification



General Specification

Part No.

TST09603A

Display Size(Diagonal)

0.96 inch

LCD type

Transmissive/Normally Black

Resolution

80 x (RGB) ×160

View Direction

All clock

Module Outline

14.04W*27.95H*1.71D

Active Area

10.8W*21.7H

Viewing Area

ALL

Backlight

1LED,20ma,3.2v

Interface

4-SPI

Driver IC

ST7735S

Weight(g)

TBD

Power Consumption(w)

Panel

TBD(Typ.)

B/L system

TBD(Typ.)

Operating Temperature

-2060

Storage Temperature

-3070



Pins Description

Pin No.

Symbol

Description

1

TP0

No connection

2

TP1

No connection

3

SDA

The serial clock input signal

4

SCL

Data/command selection pin

5

RS

Reset input signal

6

RES

Active low Chip select signal. low Enable

7

CS

System Ground

8

GND

Power ground

9

NC

No connection

10

VC

Power supply

11

LEDK

Backlight K Cathode input pin.

12

LEDS

Backlight A Aothod input pin

13

GND

System Ground



 Applications:



1. Office Electronic Equipment: money counting machine, office phone set, copying mechine.

2. Household Appliances: refrigerator, air conditioner, induction cooker, microwave ovens.

3. Instruments: clinical thermometer, wire tester, digital watches, electronic weight scale.

4. Medical Devices: sphygmomanometer, ECG machine

5. Sports Equipment: Running machine.

6. Industrial Control Equipment: remote control, punched-card machine.

7. Information Terminal Display: POS, PDA, Handheld devices.



Get A Quote
If you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.
Related products

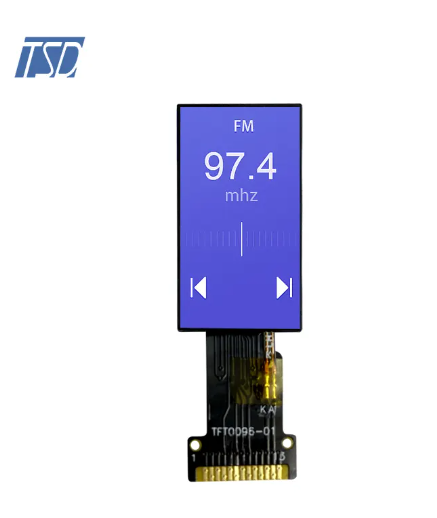

0.96 inch TFT Display
TSD 0.96 inch 80x160 small ips lcd display
Model Name: TST09603A LCD Type: 0.96 inch TFT LCD display Resolution: 80x160 Viewing angle: All o'clock Brightness: 400 cd/m2 Driver IC: ST7735S Interface: 4 wire SPI interface Touch Screen: without Capacitive touch panel Operating Temperature: -20 ~ +70℃ Storage Temperature: -30 ~ +80℃

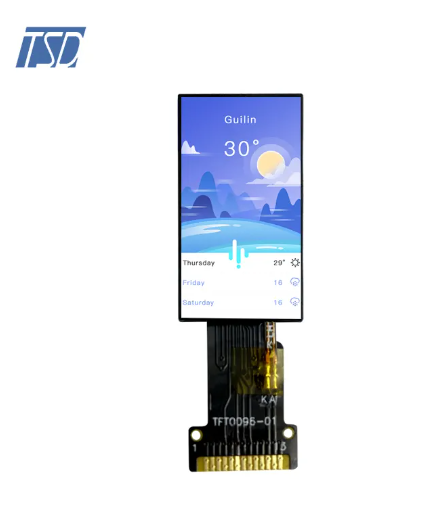

TST09607A
Custom 0.96 inch CTP Capacitive Touch tft lcd TST09607A
Model Name:TST09607A  LCD Type:a-Si TFT,Transmissive,Normally Black  Resolution:80x (RGB) × 160  Viewing angle: All o’clock  Brightness:600  Driver IC: ST7735S  Interface:4 wire SPI Touch Screen:without Operating Temperature:-20~-70 Storage Temperature: -30~-80

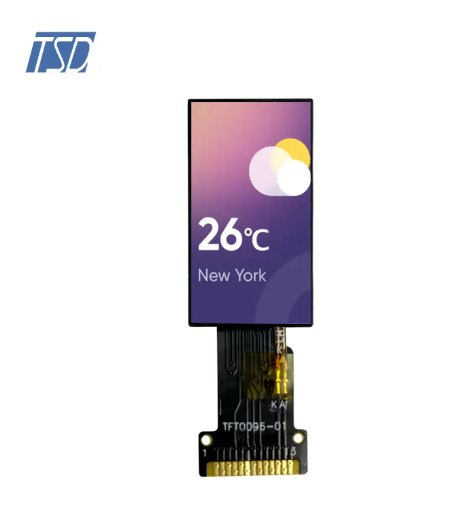

TST09601A
