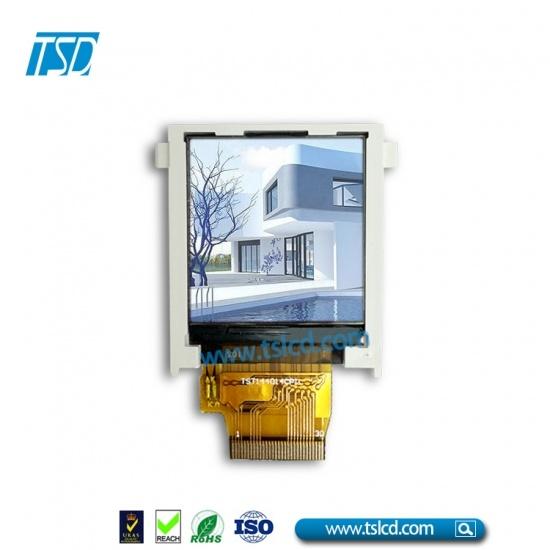

TSD 1.44 inch LCD display 128*128 resolution TN panel

  • Model Name: TST144QQHS-15
  • LCD Type: 1.44 inch TFT LCD display
  • Resolution: 128x128
  • Viewing angle: 12 o'clock
  • Brightness: 250 cd/m2
  • Driver IC: ST7735S
  • Interface: MCU
  • Touch Screen: Customizable
  • Operating Temperature: -20 ~ +70℃
  • Storage Temperature: -30 ~ +80℃



Description:



TST144QQHS-15 is a 1.44 inch 128*128 resolution LCD display with MCU interface. As for a square shape, it is popular in smart home market and widely used for smart control panel to displaying and controling the light, temperature, etc. For our standard 1.44 inch LCD, which has such features: Driver IC is ST7735S, Viewing direction is 12 o'clock, interface is MCU, Operating voltage is 2.8~3.3v, Color depth is 262K. 1.44 inch LCD found in a wide range of applications like portable electronic devices, industrial instruments and sport devices.

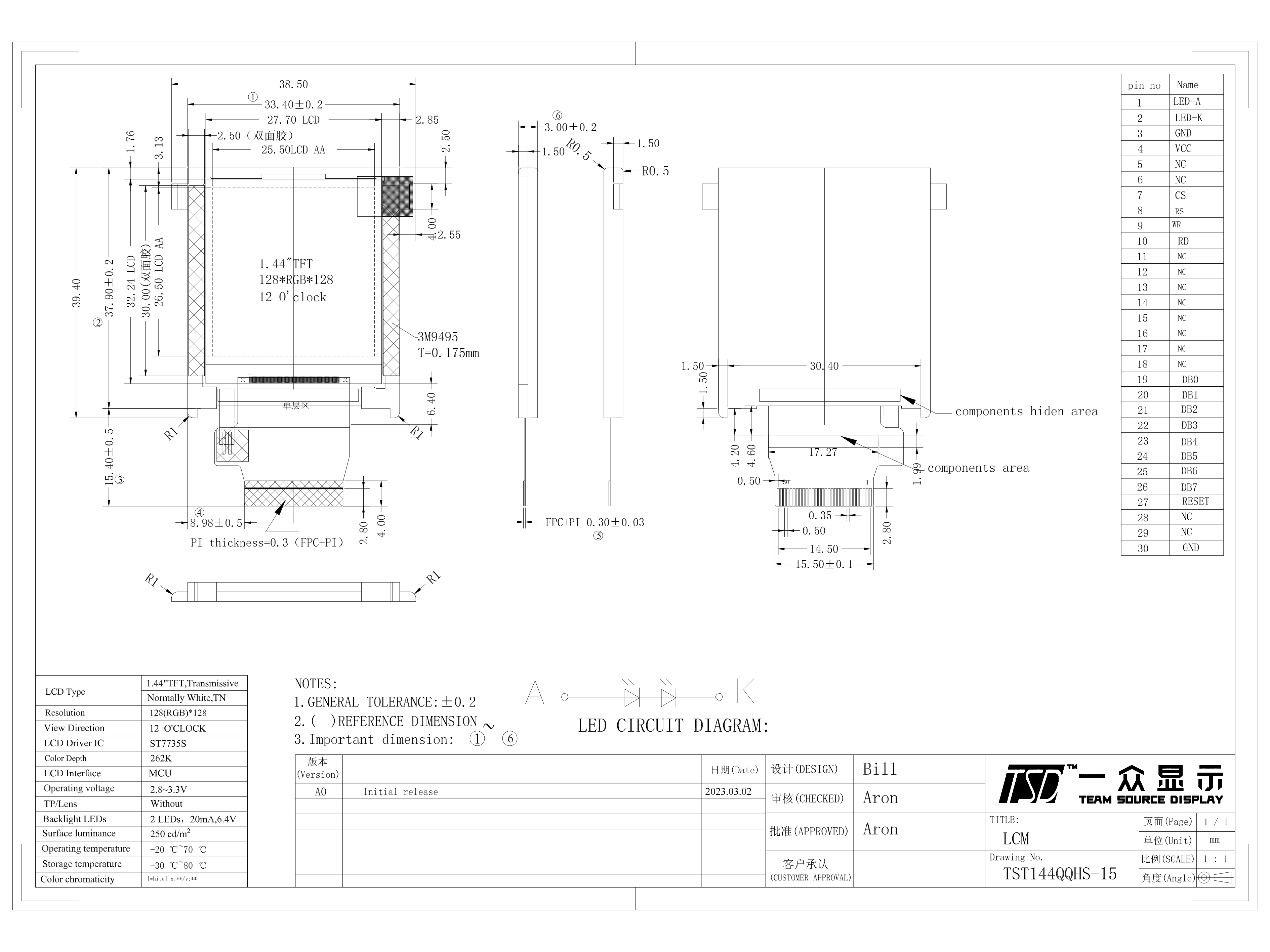

Drawing:




Specifications:



General Specification
Part No.  TST144QQHS-15
Outline Dimension(mm)

38.5(W)x39.4(H)x3(D)

Active Area(mm) 25.5(W) x 26.5(H)
Resolution(dots)  128*128
Operating temperature(°C) -20 ~ +70°C
Storage temperature(°C) -30 ~ +80°C
Number of Pixel(pixels) 128RGB(H)xRGBx128V)
Touch panel  Customizable
Driver IC ST7735S
Pixel arrangement RGB-stripe
Display mode Normal white,TN, 1.44 inch TFT
Surface treatment -
View direction  12H
Weight(g) TBD
Power Consumption(w) Panel TBD(Typ.)
B/L system TBD(Typ.)
Interface MCU
Module lifetime(Hours) 50,000-100,000





Pins Description
Pin No.  Symbol Description
1 LEDA
2 LEDK
3 GND
4 VCC
5 NC No connect
6 NC No connect
7 CS
8 RS
9 WR
10 RD
11~18 NC No connect
19 DB0
20 DB1
21 DB2
22 DB3
23 DB4
24 DB5
25 DB6
26 DB7
27 RESET
28 NC No connect
29 NC No connect
30 GND




Applications:



For our 1.44 inch LCD display TST144QQHS-15, it's widely using in smart home product, such as smart home control panels, portable electronic devices and sport devices. Customer can design thier own product effects, and if necessary we can support the touch customization.




Product Features:



1. Square shape is positive impact on smart home devices;

2. MCU interface of this LCD for customer to process their design;

3. If you have other design requirements like touch panel, cover glass, you are warmly welcome.



Get A Quote
If you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.
