TSD 1.44 Inch TFT lcd TST015QVBS-02

Model Name:TST144014CPIL-04B

LCD Type:a-Si TFT,Transmissive,Normally white,TN

Resolution:128x (RGB) × 128

Viewing angle:12 o’clock

Brightness:280±30

Driver IC: ILI9163

Interface:MCU 8-bit

Touch Screen:without

Operating Temperature:-20~-70

Storage Temperature: -30~-80

Description:

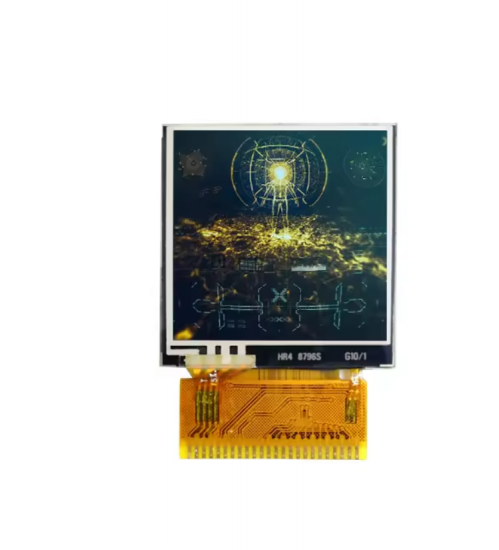

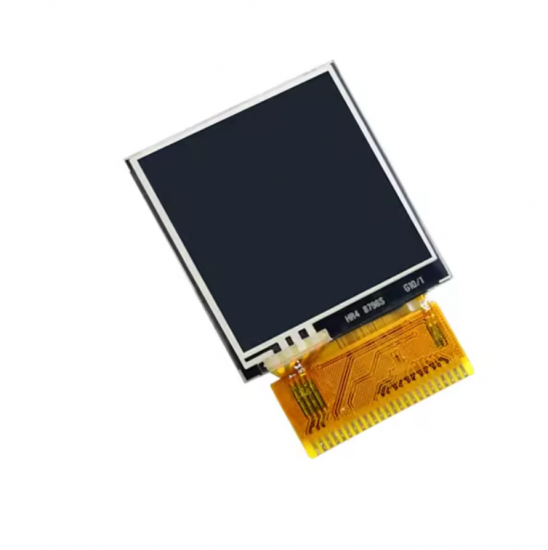

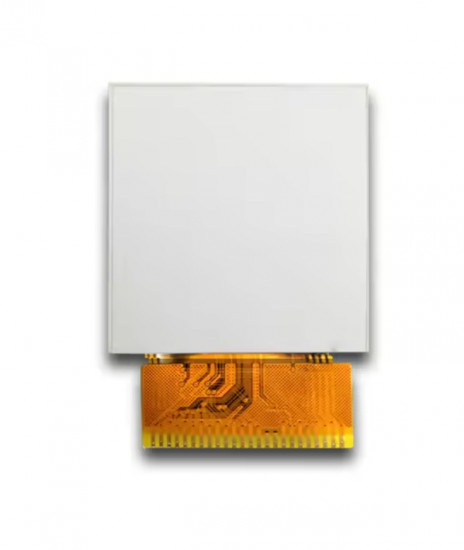

TST144014CPIL-04B is a transmission type color active matrix liquid crystal display (LCD), using amorphous thin film transistor (TFT) as a switching device. This product is composed of TFTLCD panel, driver IC, FPC, PCB board, backlight . The active display area is a 25.5 (W) x 26.5 (H) measurement on the diagonal, with an active resolution of 128x (RGB) × 128. This 1.44 inch LCD can be used to display pictures and text, and it's without standard Capacitive touch screen.

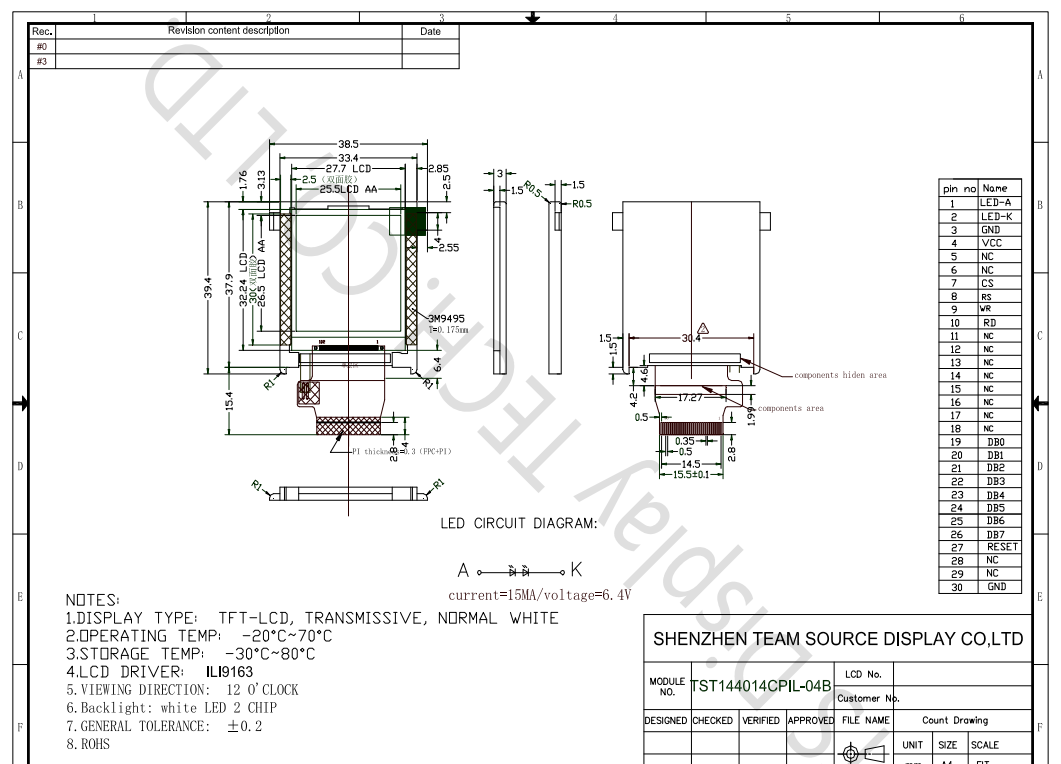

Drawing:





Specifications:





General Specification

Part No.

TST144014CPIL-04B

Outline Dimension(mm)

38.5W) x 39.4(H) x 3.0(D)

Active Area(mm)

25.5 (W) x 26.5 (H)

Resolution(dots)

128x (RGB) × 128

Operating temperature(°C)

-20 ~ +70°C

Storage temperature(°C)

-30 ~ +80°C

Dot Pitch (W × H)
0.1992 x 0.207

Touch panel

No

Driver IC

ILI9163

Pixel arrangement

RGB Vertical stripe

Display mode

Normal white,TN,

Surface treatment

Antiglare

View direction

6 o'clock

Weight(g)

TBD

Power Consumption(w)

Panel

TBD(Typ.)

B/L system

TBD(Typ.)

Interface

MCU 8-bit

Module lifetime(Hours)

50,000-100,000



Pins Description

Pin No.

Symbol

Description

1

LED A

Backlight A Aothod input pin.

2

LEDK

Backlight K Cathode input pin.

3

GND

System Ground. (0V)

4

VCC

Power supply +2.8V t

5

NC

-

6

NC

-

7

CS

Chip select signal.

8

RS

Data/Command Selection pin

9

WR

Write signal input pin

11~18

NC

-

19~26

DB0~DB7

Data BUS

27

RESET

Reset input signal

28

NC

-

29

NC

-

30

GND

System Ground. (0V)

16

CLKP

MIPI clock aothod input pin

17

CLKN

MIPI clock c athode input pin

18

GND

System Ground. (0V)

19

D2P

MIPI data aothod input pin

20

D2N

MIPI data c athode input pin

21

GND

System Ground. (0V)

22

D3P

MIPI data aothod input pin

23

D3N

No Connect

24

GND

System Ground. (0V)

25

TP INT

CTP interrupt signal output pin/NC

26

TP SDA

CTP I 2 C data input/output/NC

27

TP SCL

CTP I 2 C clock input/NC

28

TP RESET

CTP reset signal input pin/NC

29

TP VCI

CTP Power supply +/NC

30

NC

No connect

Applications:



1. Office Electronic Equipment: money counting machine, office phone set, copying mechine.

2. Household Appliances: refrigerator, air conditioner, induction cooker, microwave ovens.

3. Instruments: clinical thermometer, wire tester, digital watches, electronic weight scale.

4. Medical Devices: sphygmomanometer, ECG machine

5. Sports Equipment: Running machine.

6. Industrial Control Equipment: remote control, punched-card machine.

7. Information Terminal Display: POS, PDA, Handheld devices.

Security Products: elevator controller, electronic indicator.
