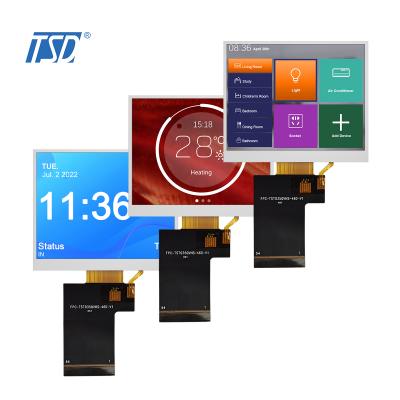

TSD 4.3 inch 800x480 TFT LCD with CTP

  • Model Name: TST043WVBS-139C
  • LCD Type: 4.3 inch TFT LCD display
  • Resolution: 800x480
  • Viewing angle: All o'clock
  • Brightness: 800 cd/m2
  • Driver IC: ST7262E43
  • Touch IC: FT5446DQS
  • Interface: RGB 24 bit
  • Touch Screen: with capacitive touch panel
  • Operating Temperature: -30 ~ +80℃
  • Storage Temperature: -30 ~ +80℃

Description:

TST043WVBS-139C is 4.3 inch 800x480 resolution RGB 24 pin interface LCD display module with capacitive touch panel, which is very suitable for home smart product. Backlight brightness is 800 nits, has 18 White LED, backlight current is 240mA and backlight voltage is 9.6V, which could be customized. For this 4.3 inch TFT LCD module, driver IC is ST7262E43, viewing direction is free, all o'clock, color depth is 16.7M, white backlight and transmissive mode.


Drawing:




Specifications:



General Specification
Part No.  TST043WVBS-139C
Outline Dimension(mm)  123.04x84.46x6.8
Active Area(mm) 95.04x53.86
Resolution(dots) 800x480
Operating temperature(°C) -30 ~ +80°C
Storage temperature(°C) -30 ~ +80°C
Number of Pixel(pixels) 800(H)xRGBx480(V)
Touch panel  with CTP
Driver IC ST7262E43
Pixel arrangement RGB-stripe
Display mode Normal black,IPS, 4.3 inch TFT
Surface treatment Antiglare
View direction  All
Weight(g) TBD
Power Consumption(w) Panel TBD(Typ.)
B/L system TBD(Typ.)
Interface RGB 24 bits
Module lifetime(Hours) 50,000





Pins Description
Pin No.  Symbol
1-2 VLED+
3-4 VLED-
5 GND
6 VCOM
7 VDD
8 MODE
9 DE
10 VSYNL
11 HSYNL
12-19 B7-B0
20-26 G7-G0
28-35 R7-R0
36 GND
37 DCLK
38 GND
39 SCLR
40 UDDN
41 VGH
42 VGL
43 AVDD
44 RESET
45 NC
46 VCOM
47 DITHM
48 GND
49 NC
50 NC




Applications:



For our 4.3 inch 800x480 LCD display TST043WVBS-139, normally used in EV charger, charging station, automotive lcd screen.



4.3 inch lcd display


Product Features:



This display module is a transmissive type color active matrix TFT(Thin Film Transistor) liquid crystal display (LCD) that could be used in many applications. This module is composed of a FOG, a driver-circut, and a back-light unit.The resolution of a 4.3" contains 800x480 dots and can display up to 16.7M colors, and could be used for automotive application.
