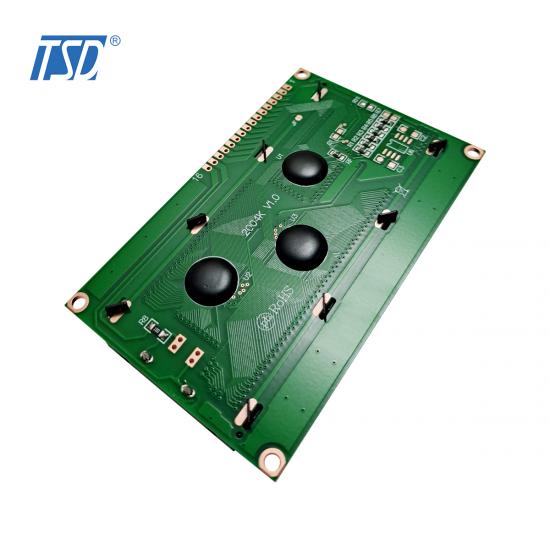

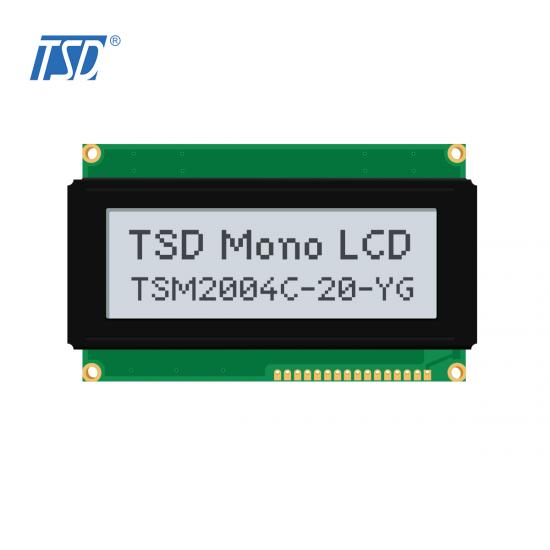

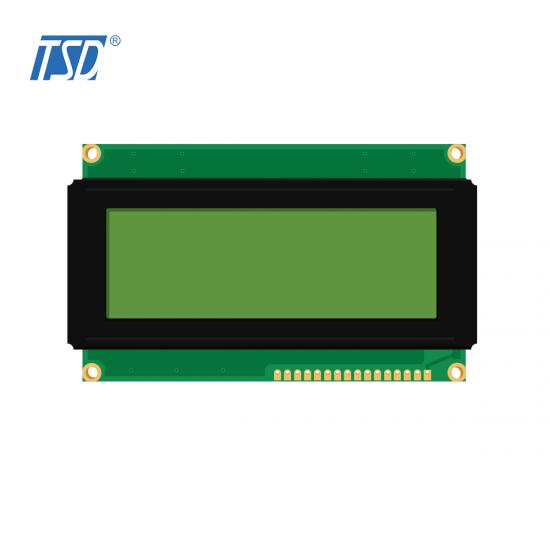

TSD 20x4 character LCD module STN-YG/ Blue/ FSTN positive

  • Model Name: TSM2004C-20-YG
  • LCD Type: 20x4 character  lcd module COB
  • Resolution: 20x4 dots

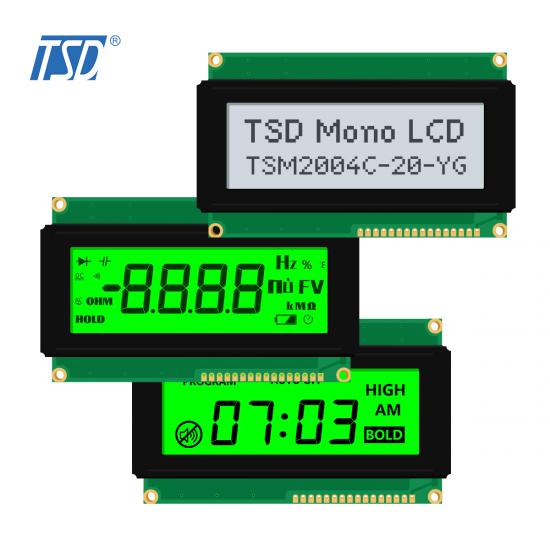

  • Display mode: STN-yellow green / STN-Blue/ FSTN positive
  • Polarizer mode: Transflective / Transmissive
  • Connection: 16 pins MCU
  • Character font: English & Europe
  • Viewing angle: 6H
  • Driver IC: AiP31066L-003
  • Voltage:  VDD 3.3V
  • Operating Temperature: -20 ~ +70℃
  • Storage Temperature: -30 ~ +80℃



Description:

The TSM2004C-20-YG is a 20x4 dots dot-matrix LCD module. It has a STN panel composed of 20segments and 4 commons. The LCM can be easily accessed by microcontroller via SPI interface. We have STN-YG,STN-blue, Positive/negative, Transflective/transmissive.Can customize the parameters according to your requirements such as polarizer type. lcd mode. connection way. operating Voltage.etc.



Specification
Item Spec.
Part number
TSM2004C-20-YG
Display Character 20x4 dots
Display type STN lcd, Positive Transflective
LCD Driving voltage 3.3 v
Logic voltage 3.3 v
Drive mode 1/16 DUTY, 1/5 BIAS
Backlight white/ edge backlight
Operating voltage 3.3v,
Outline 98x60x13.4
View Area 77.0x25.2mm
Active Area 70.41x20.81mm
Viewing direction 6H
Operating temperature -20°C-70°C
Storage temperature -30°C-80°C



Drawing:

Interface Description:

PIN SYMBOL
1 VDD
2 GND
3 SDA
4 CS
5 SCK
6 GND
7 ECI
8 EC2
9 EC_PRE
10 GND
11 RST
12 BEEP



Applications:

For our 20x4 dots character lcd TSM2004C-20-YG , it's widely using in industrial product, Industrial equipment and Industrial controllers, mechanical displays.etc.

Product Features:

1.2004 dots lcd with 12pins

2. 5v working Voltage

3.AIP31068L IC chip

4.font table support English/European/Japanses/Russian

5. TSD have full ranges of mono lcd including COB COG OLED.E-ink display. customized design are warmly welcome.
