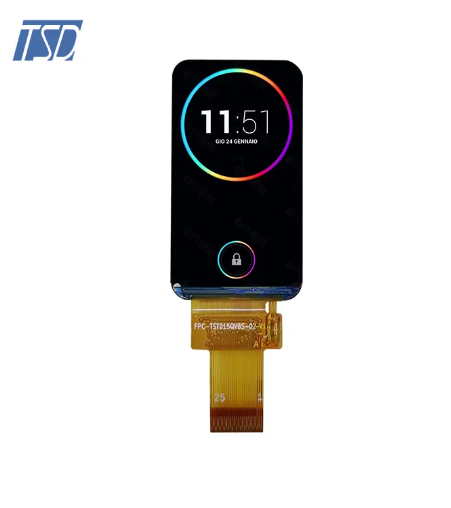

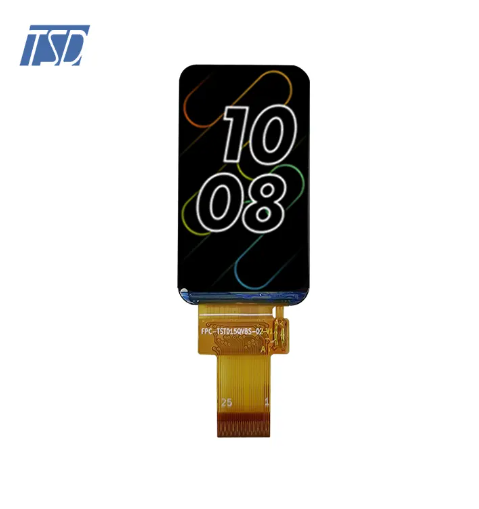

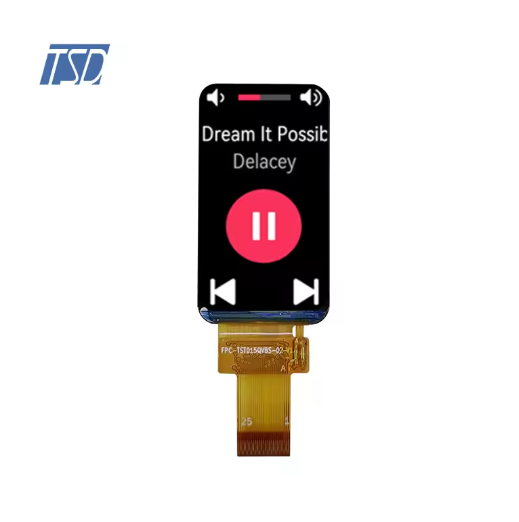

TSD 1.45 Inch IPS TFT LCD module SPI+RGB6-bit interface 172(RGB)*320 resolution

LCD Type: 1.45"TFT,Transmissive  Normally BLACK,IPS

Resolution: 172(RGB)*320

View Direction: ALL o'clock

LCD driver IC: ST7789V3

Interface types:SPI+RGB6-bit

Operating voltage: 2.8~3.3V

With TP/Lens: without

Backlight: 3 LEDs,60mA(typ),3.0V(ref.)

Surface luminance: 750 cd/m²(typ)

Operating temperature: -20℃~70℃

Storage temperature: -30℃~80℃

Description:



TST015QVBS-02 is a color active matrix TFT-LCD Panel using amorphous silicon TFT's as an active switching devices. this model is composed of a TFT-LCD Panel, a driving circuit and a back light system. It is a transmissive type display operating in the normal black. This TFT-LCD has a 17.39x32.35 mm diagonally measured active area with 172xRGBx320 resolutions.

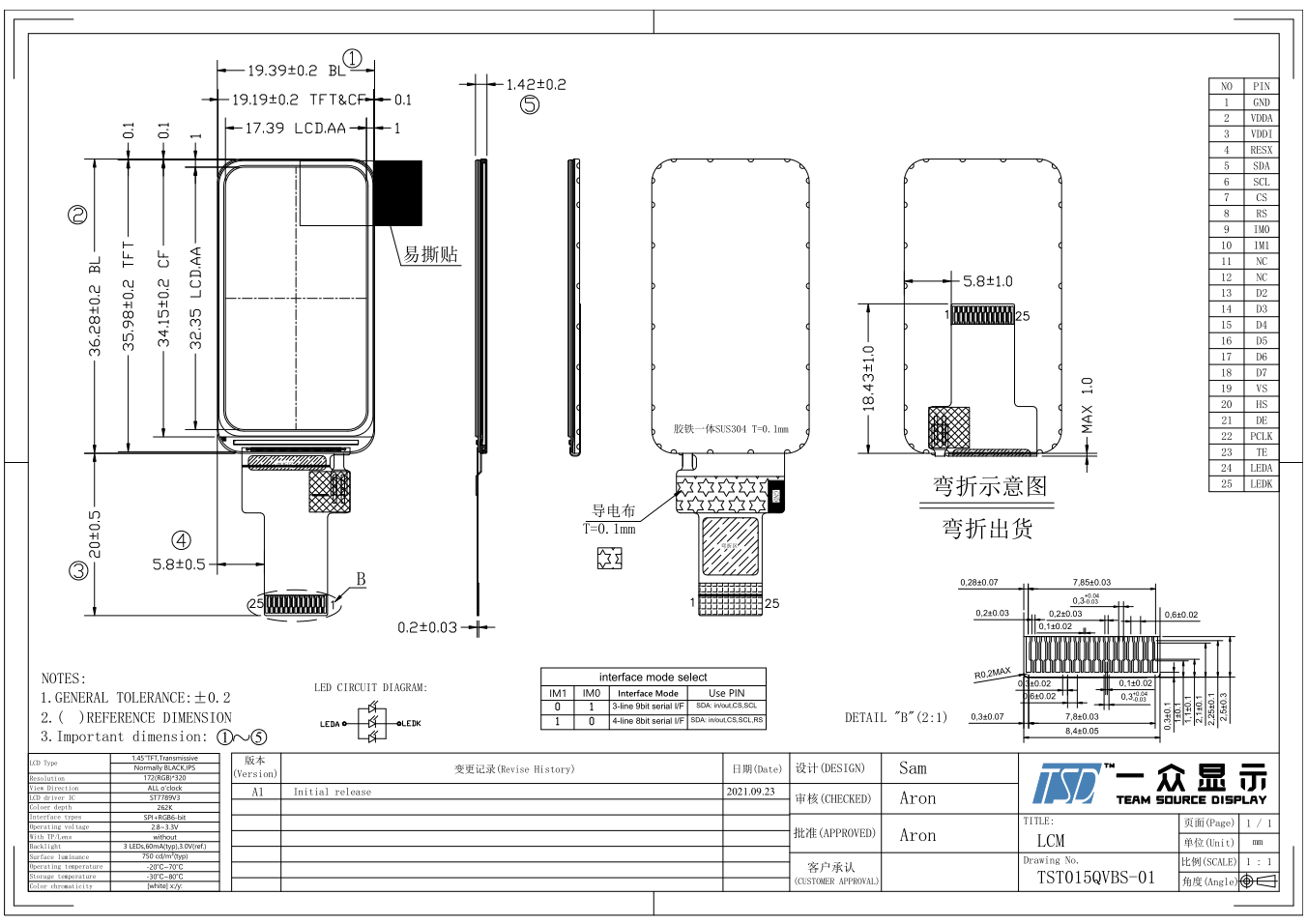

Drawing:



Specifications:

General Specification

Part No.

TST015QVBS-02

Outline Dimension(mm)

19.39(W) x 36.28(H) x 1.42(D)

Active Area(mm)

17.39 (W) x32.35 (H)

Resolution(dots)

172 x (RGB) × 320

Operating temperature(°C)

-20 ~ +70°C

Storage temperature(°C)

-30 ~ +80°C

Brightness

--

Touch panel

No

Pixel arrangement

RGB-stripe

Display mode

Normally black,IPS

Surface treatment

Antiglare

View direction

all o’clock

Weight(g)

TBD

Power Consumption(w)

Panel

TBD(Typ.)

B/L system

TBD(Typ.)

Interface

SPI+RGB8_bit

Driver IC

ST7789V3



PIN Define

1

GND

System Ground. (0V)

2

VDDA

Power supply +2.8~3.3V

3

VDDI

Power supply +1.8V~+3.3V

4

RESX

Reset input signal

5

SDA

serial data input/outpu pin

6

SCL

Serial Clock pin

7

CS

Chip select signal.

8

RS

serial data/command seletcion

9

IM0

Interface selection

10

IM1

Interface selection

11~18

D0~D7

Data bus

19

VS

Frame synchronizing signal

20

HS

Line synchronizing signal

21

DE

A data ENABLE input signal

22

PCLK

Dot clock signal

23

TE

TE pin

24

LEDA

Backlight A Aothod input pin.

25

LEDK

Backlight K Cathode input pin.



 Applications:



1. Office Electronic Equipment: money counting machine, office phone set, copying mechine.

2. Household Appliances: refrigerator, air conditioner, induction cooker, microwave ovens.

3. Instruments: clinical thermometer, wire tester, digital watches, electronic weight scale.

4. Medical Devices: sphygmomanometer, ECG machine

5. Sports Equipment: Running machine.

6. Industrial Control Equipment: remote control, punched-card machine.

7. Information Terminal Display: POS, PDA, Handheld devices.
