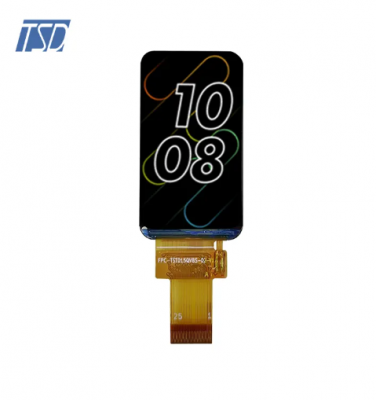

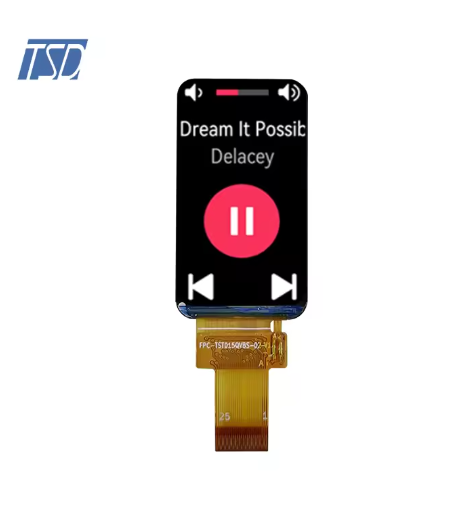

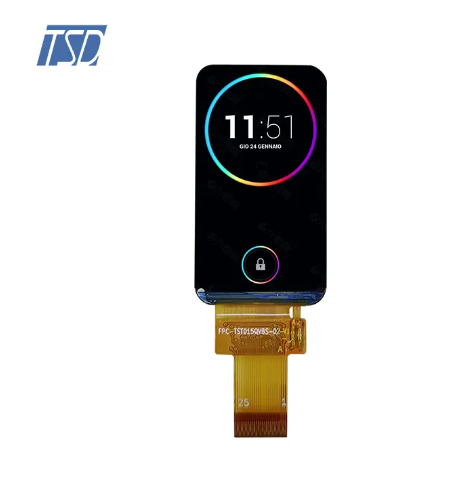

TSD 1.5 Inch TFT LCD Customization lcd panel 172 x (RGB) × 320 resolution

LCD Type: Transmissive,Normally black,IPS

Resolution: 172 x (RGB) × 320

View Direction: ALL o’clock

LCD driver IC: ST7789V3

Interface types: SPI+RGB8_bit

Weight: TBD

Operating temperature: -20℃~70℃

Storage temperature: -30℃~80℃



Description:

This display module is aTransmissive,Normally black,IPS TFT liquid crystal display (LCD), This module is composed of a TFT LCD module, a driver circuit, and a back-light unit and without capacitive touch panel.The resolution of it is 320 x (RGB) × 170 and the driver ic is ST7789V3.

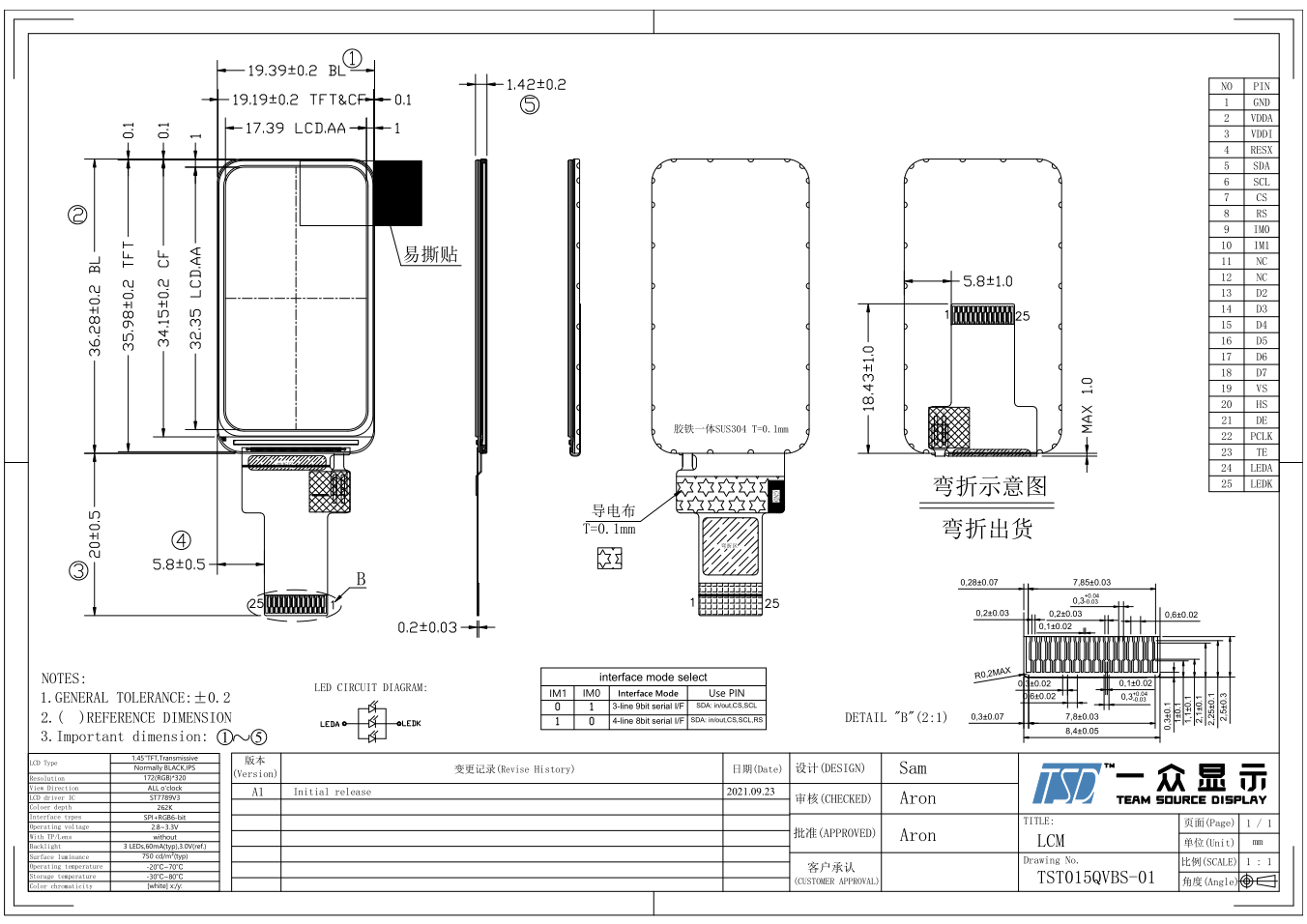

Drawing:



Specification



General Specification

Part No.

TST015QVBS-02

Display Size(Diagonal)

3.5 inch

LCD type

Transmissive,Normally black,IPS

Resolution

172 x (RGB) × 320

View Direction

ALL o’clock

Module Outline

19.39(W) x 36.28(H) x 1.42(D)

Active Area

17.39 (W) x32.35 (H)

Viewing Area

ALL

Backlight

3 LEDs 60mA

Interface

SPI+RGB8_bit

Driver IC

ST7789V3

Weight(g)

TBD

Power Consumption(w)

Panel

TBD(Typ.)

B/L system

TBD(Typ.)

Operating Temperature

-2060

Storage Temperature

-3070





Pins Description

Pin No.

Symbol

Description

1

GND

System Ground. (0V)

2

VDDA

Power supply +2.8~3.3V

3

VDDI

Power supply +1.8V~+3.3V

4

RESX

Reset input signal

5

SDA

serial data input/outpu pin

7

CS

Chip select signal

8

RS

serial data/command seletcion

9

IM0

Interface selection

10

IM1

Interface selection

11~18

D0~D7

Data bus

19

VS

Frame synchronizing signal

20

HS

Line synchronizing signal

21

DE

A data ENABLE input signal

22

PCLK

Dot clock signal

23

TE

TE pin

24

LEDA

Backlight A Aothod input pin.

25

LEDK

Backlight K Cathode input pin.



Applications:



1. Office Electronic Equipment: money counting machine, office phone set, copying mechine.

2. Household Appliances: refrigerator, air conditioner, induction cooker, microwave ovens.

3. Instruments: clinical thermometer, wire tester, digital watches, electronic weight scale.

4. Medical Devices: sphygmomanometer, ECG machine

5. Sports Equipment: Running machine.

6. Industrial Control Equipment: remote control, punched-card machine.

7. Information Terminal Display: POS, PDA, Handheld devices.
