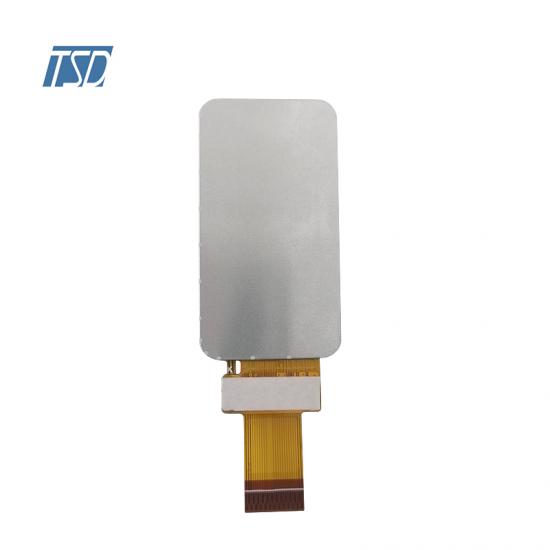

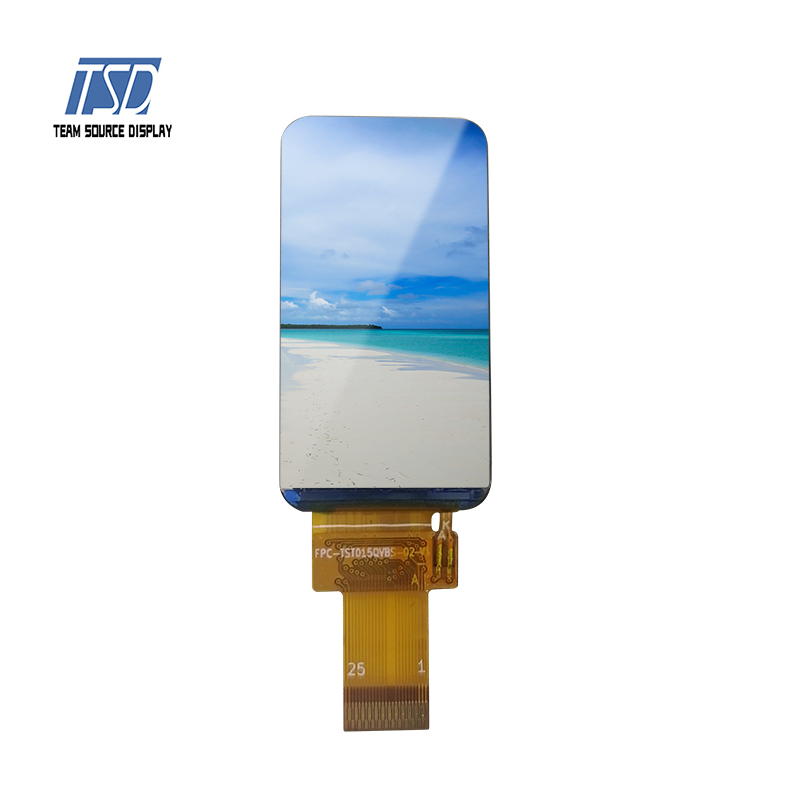

TSD 1.45 inch 172x320 RGB TFT LCD Module

  • Model Name: TST015QVBS-02
  • LCD Type: 1.45 inch TFT LCD display
  • Resolution: 172x320
  • Viewing angle: All o'clock
  • Brightness: 700 cd/m2
  • Driver IC: ST7789V3
  • Interface: SPI+RGB
  • Touch Screen: without Capacitive touch panel
  • Operating Temperature: -20 ~ +70℃
  • Storage Temperature: -30 ~ +80℃

Description:



TST015QVBS-02 is a 1.45 inch square tft lcd module in 172x320 resolution, it is SPI+RGB interface in 25 pins, Pinmap is customizable. Contract ratio is very high for image clearness, up to 1500:1. Brightness is 700 nits. It is suitable for smart wear device, translation pen etc. This 1.45 inch TFT LCD module is designed with ST7789V3, viewing direction is all o'clock, color depth is 262K, white backlight and transmissive type. Backlight current is 60mA and backlight voltage is 3.1V, with 3 backlight LEDs.


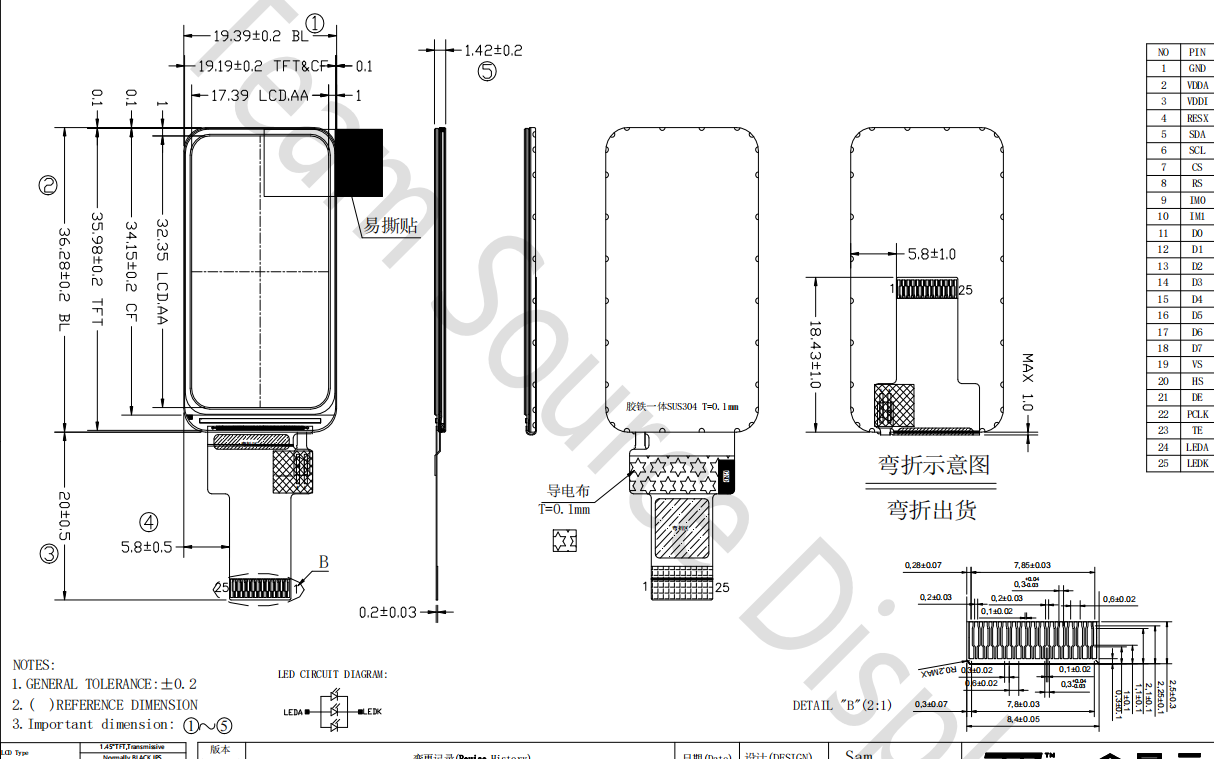

Drawing:




Specifications:



General Specification
Part No.  TST015QVBS-02
Outline Dimension(mm)

19.39x36.28x1.42

Active Area(mm) 17.39x32.35
Resolution(dots) 172x320
Operating temperature(°C) -20 ~ +70°C
Storage temperature(°C) -30 ~ +80°C
Number of Pixel(pixels) 172(H)xRGBx320(V)
Touch panel  w/o CTP
Driver IC ST7789V3
Pixel arrangement RGB-stripe
Display mode Normally black, IPS, 1.45 inch TFT
Surface treatment Antiglare
View direction  All
Weight(g) TBD
Power Consumption(w) Panel TBD(Typ.)
B/L system TBD(Typ.)
Interface SPI+RGB
Module lifetime(Hours) 30,000-40,000





Pins Description
Pin No.  Symbol Description
1 GND System Ground. (0V)
2 VDDA Power supply +2.8~3.3V
3 VDDI Power supply +1.8V~+3.3V
4 RESX Reset input signal
5 SDA serial data input/outpu pin
6 SCL Serial Clock pin
7 CS Chip select signal.
8 RS serial data/command seletcion
9 IM0 Interface selection
10 IM1 Interface selection
11-18 D0-D7 Data bus
19 VS Frame synchronizing signal
20 HS Line synchronizing signal
21 DE A data ENABLE input signal
22 PCLK Dot clock signal
23 TE TE pin
24 LEDA Backlight A Aothod input pin.
25 LEDK  Backlight K Cathode input pin.




Applications:

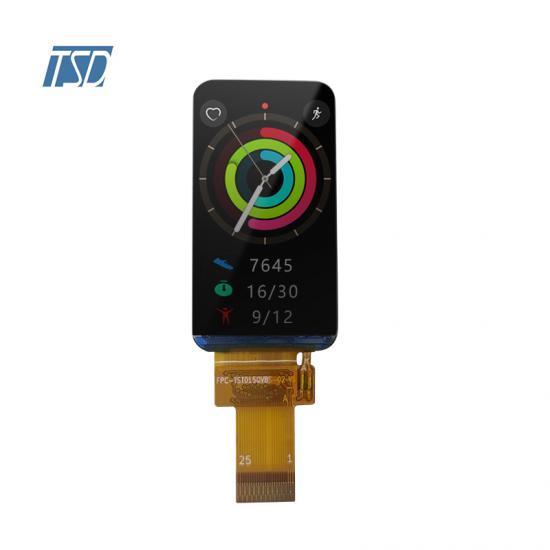

This small square lcd display is widely used for smart wear, translation pen etc. Support all kinds of customization.




Product Features:



TST015QVBS-02 is a standard TFT display module, This mode1.45 inch diagonally resolution in 172 horizontal by 320 vertical pixel array). Each pixel is divided into Red, Green, Blue dots which are arranged in 2 domain stripe and this panel can display 262K colors. Regarding backlight, brightness is 700 nit and 3 LEDs, current is 60mA  and voltage 3.1V. Contrast ratio is very high 1500:1.
