Description:

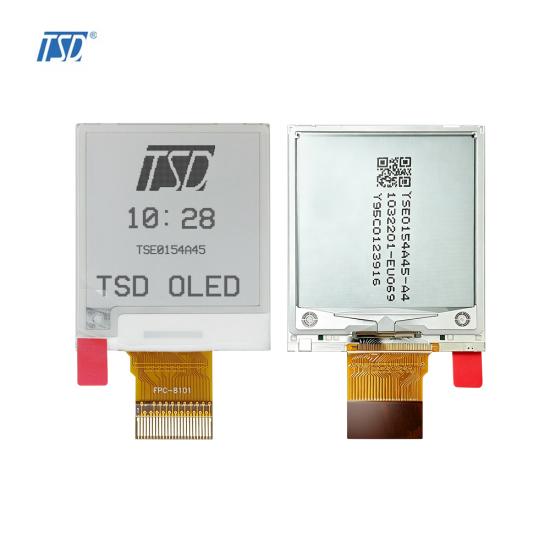

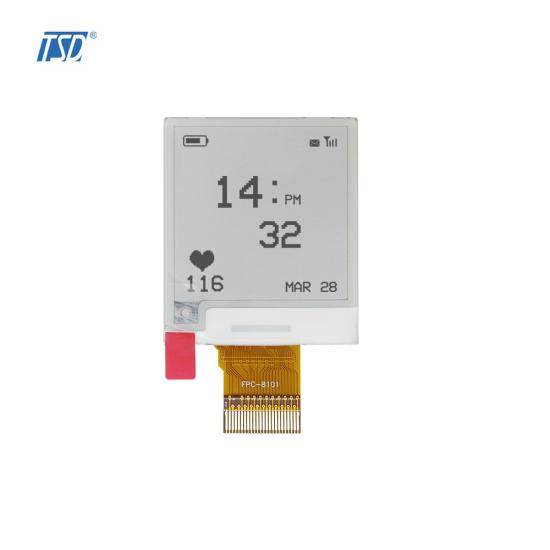

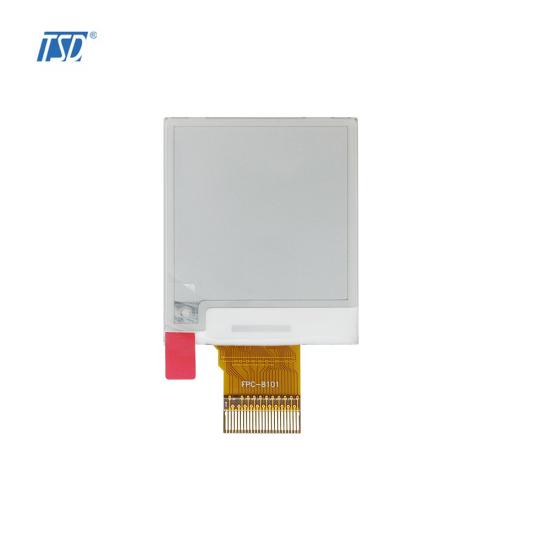

TSE0154A45 is an E-ink display, with interface and a reference system design. The 1.54” active area contains 200×200 pixels, and has 1-bit B/W full display capabilities. An integrated circuit contains gate buffer, source buffer, interface, timing control logic, oscillator, DC-DC. SRAM.LUT, VCOM and border are supplied with each panel.
Drawing:
Specification
|
General Specification |
||
|
Part No. |
TSE0154A45 |
|
|
Display Size(Diagonal) |
1.54 inch |
|
|
LCD type |
EPD |
|
|
Resolution |
200H*200V |
|
|
View Direction |
All o'clock |
|
|
Module Outline |
31.8(H)×37.32 (V) ×0.9(D) |
|
|
Active Area |
27(H)×27(V) |
|
|
Pixel Pitch |
0.135×0.135 |
|
|
Pixel Configuration |
Square |
|
|
Driver IC |
SSD1681 |
|
|
Weight(g) |
3.0±0.2 |
|
|
Power Consumption(w) |
Panel |
TBD(Typ.) |
|
B/L system |
TBD(Typ.) |
|
|
Operating Temperature |
0～50 |
|
|
Storage Temperature |
-25～70 |
|
|
Pins Description |
||
|
Pin No. |
Symbol |
Description |
|
1 |
NC |
No connection and do not connect with other NC pins Keep Open |
|
2 |
GDR |
N-Channel MOSFET Gate Drive Control |
|
3 |
RESE |
Current Sense Input for the Control Loop |
|
4 |
NC |
No connection and do not connect with other NC pins e Keep Open |
|
5 |
VSH2 |
Positive Source driving voltage |
|
6 |
TSCL I2C |
Interface to digital temperature sensor Clock pin |
|
7 |
TSDA I2C |
Interface to digital temperature sensor Date pin |
|
8 |
BS1 |
Bus selection pin |
|
9 |
BUSY |
Busy state output pin |
|
10 |
D/C |
Data /Command control pin |
|
11 |
TCN |
MIPI clock c athode input pin |
|
12 |
CS |
Chip Select input pin |
|
13 |
SCL |
serial clock pin (SPI) |
|
14 |
SDA |
serial data pin (SPI) |
|
15 |
VDDIO |
Power for interface logic pins |
|
16 |
VCI |
Power Supply pin for the chip |
|
17 |
VSS |
Ground |
|
18 |
VDD |
Core logic power pin |
|
19 |
VPP |
Power Supply for OTP Programming |
|
20 |
VSH1 |
Positive Source driving voltage |
|
21 |
VGH |
Power Supply pin for Positive Gate driving voltage andVSH |
|
22 |
VSL |
Negative Source driving voltage |
|
23 |
VGL |
Power Supply pin for Negative Gate driving voltage,VCOM and VSL |
|
24 |
VCOM |
VCOM driving voltage |
Product Features:
- 1. 200×200 pixels display
- 2. High contrast and High reflectance
- 3. Ultra wide viewing angle
- 4. Ultra-low power consumption
- 5. Pure reflective mode
- 6. Bi-stable display
- 7. Commercial temperature range
- 8. Landscape, portrait modes
- 9. Hard-coat antiglare display surface
- 10. Ultra Low current deep sleep mode
- 11. On-chip display RAM
- 12. Low voltage detect for supply voltage
- 13. High voltage ready detect for driving voltage
- 14. Internal temperature sensor
- 15. 10-byte OTP space for module identification
- 16. Waveform stored in On-chip OTP
- 17. Serial peripheral interface available
- 18. On-chip oscillator
- 19. On-chip booster and regulator control for generating VCOM, Gate and Source driving voltage
- 20. I2C signal master interface to read external temperature sensor/ built-in temperature sensor
Applications:

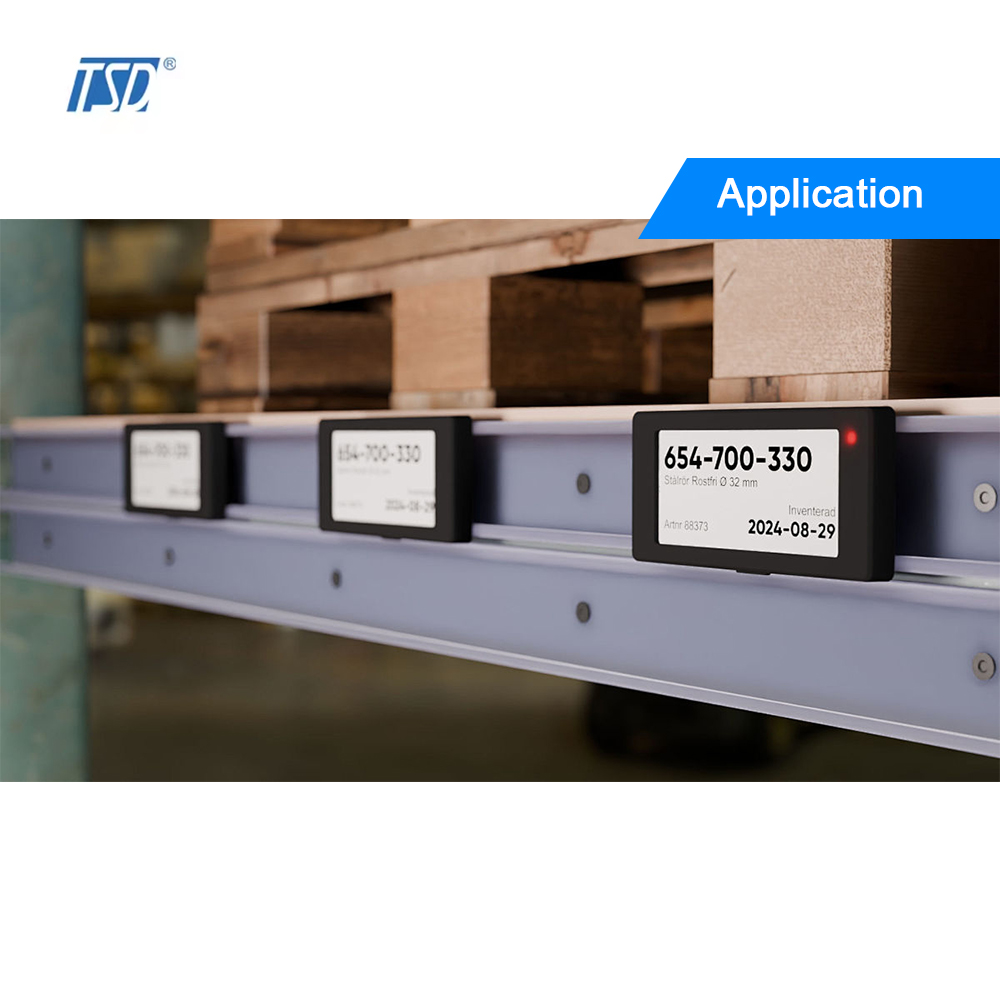

The 1.54 inch E Ink display is a bi-stable, reflective electrophoretic display specifically designed for Electronic Shelf Label (ESL) systems in retail environments. It delivers paper-like readability with ultra-low power consumption, making it the industry-standard solution for dynamic pricing, inventory management, and in-store digital signage.
