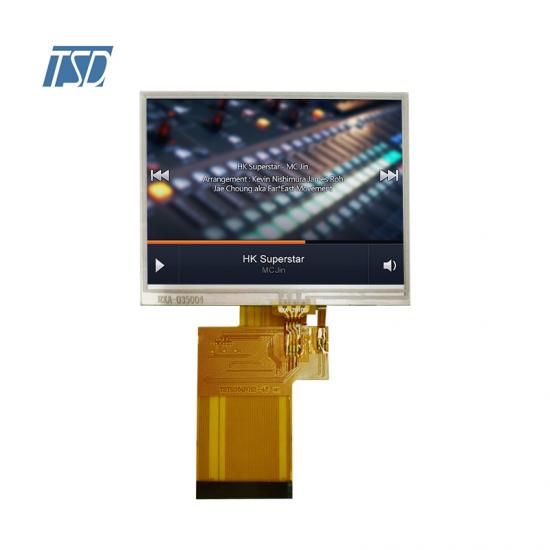

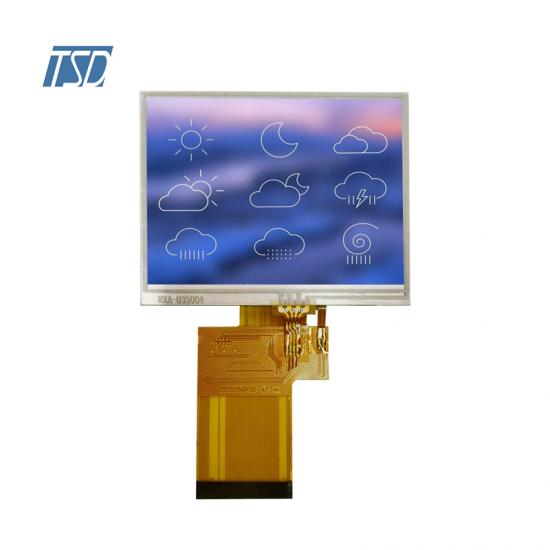

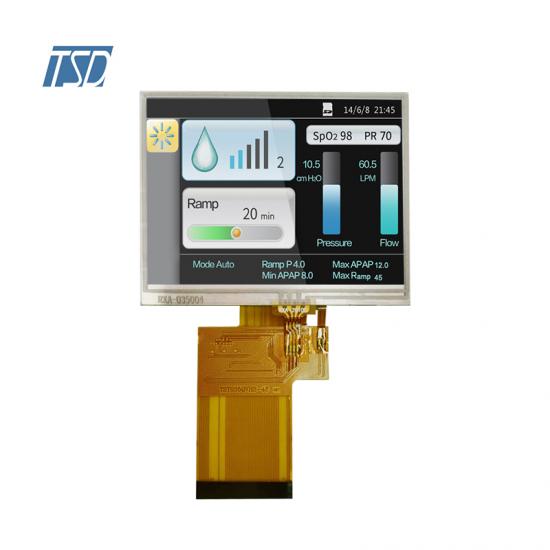

TSD Custom 3.5 inch ips tft lcd TTL RGB24bit Interface

Model Name:  TST035QVHS-46

LCD Type: 3.5"TFT,Transmissive

Resolution: 320(RGB)*240

Viewing angle: All o’clock

Driver IC: ST7272A

Interface: TTL RGB24bit

Touch Screen: Without

Operating Temperature: -20 ℃~70 ℃

Storage Temperature: -30 ℃~80 ℃

Description:



TST035QVHS-46 is a color active matrix thin film transistor (TFT) liquid crystal display (LCD) that uses amorphous silicon TFT as a switching device. This model is composed of a TFT LCD panel, a Backlight.The active display area is a 70.08(W) x 52.56 (H)  measurement on the diagonal, with a native resolution of 320 x (RGB) × 240.

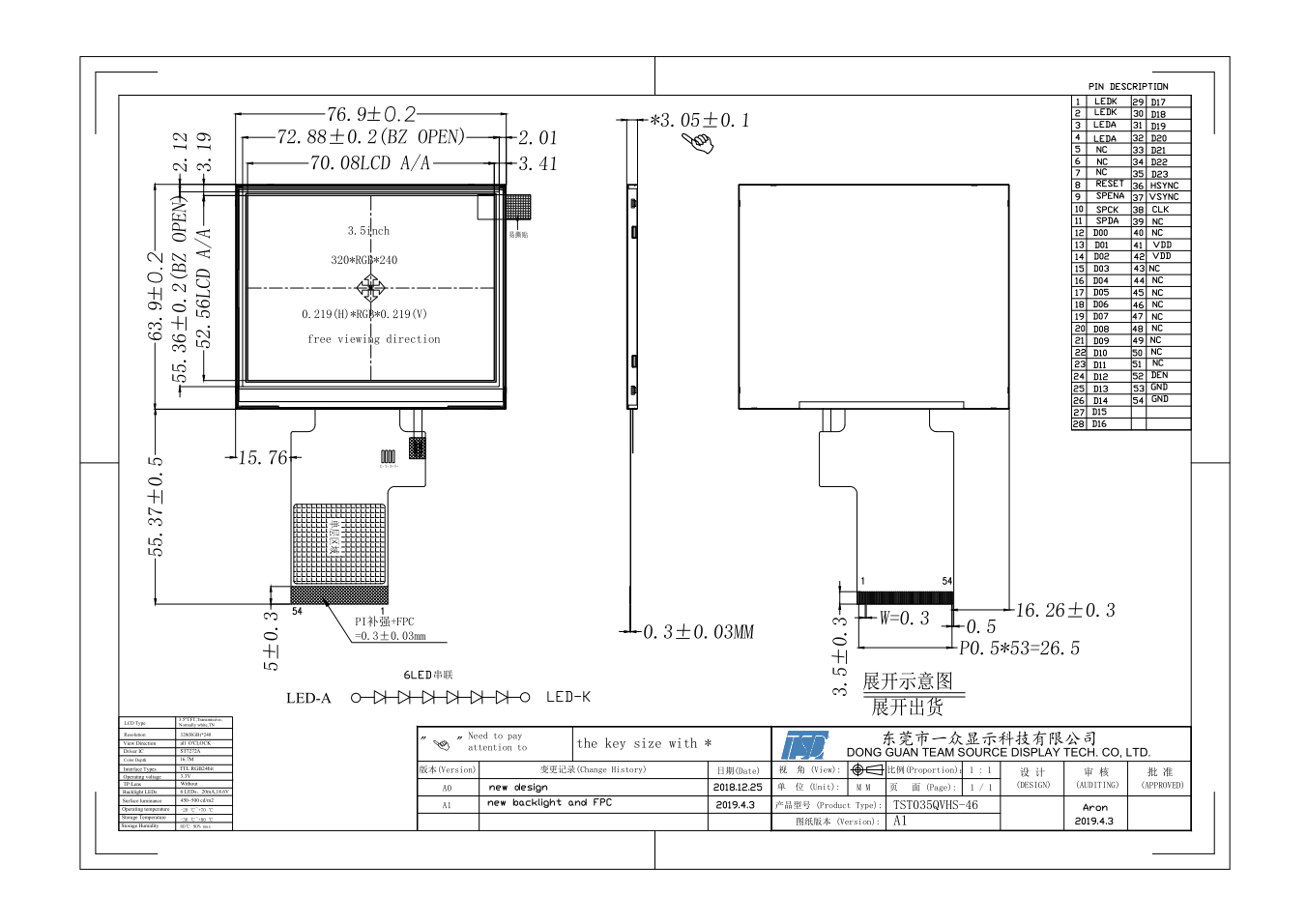

Drawing:



Specifications:



General Specification

Part No.

TST035QVHS-46

Outline Dimension(mm)

76.9(W) x 63.9(H) x3.05(D)

Active Area(mm)

70.08(W) x 52.56 (H)

Resolution(dots)

320*RGB*240

Operating temperature(°C)

-20 ~ +70°C

Storage temperature(°C)

-30 ~ +80°C

Dotl size (W × H)

0.073*0.219

Touch panel

 No

Driver IC

ST7272A

Pixel arrangement

RGB-stripe

Display mode

Transmissive,Normally black,IPS

Surface treatment

Antiglare

View direction

ALL o’clock

Weight(g)

TBD

Power Consumption(w)

Panel

TBD(Typ.)

B/L system

TBD(Typ.)

Interface

RGB24-bit

Module lifetime(Hours)

50,000-100,000



Pin No.

Symbol

Description

1

LEDK

Cathode of LED backlight.

2

LEDK

Cathode of LED backlight.

3

LEDA

Anode of LED backlight.

4

LEDA

Anode of LED backlight.

5

NC

Not Connection

6

NC

Not Connection

7

NC

Not Connection

8

RESET

System reset pin.-An active low pulse at this pin will reset the IC, Connect to VCC in normal operation

9

CS

CS:Chip select pin

10

SCK

Serial clock input

11

SDA

Data input/output pin in serial interace

12~19

B0-B7

Blue Data bus:B0~B7

20~27

G0-G7

Green Data bus:G0~G7

28~35

RO-R7

Red Data bus:R0~R7

36

HSYNC

Line Synchronization input

37

VSYNC

Frame/Ram Write Synchronization input

38

DCLK

Dot-clock signal and oscillator source.

39

NC

Not Connection

40

NC

Not Connection

41

VDD

Power supply for digital voltage

42

VDD

Power supply for digital voltage

43

NC

Not Connection

44

NC

Not Connection

45

NC

Not Connection

46

NC

Not Connection

47

NC

Not Connection

48

X-

Not Connection

49

Y-

Not Connection

50

X+

Not Connection

51

Y+

Not Connection

52

DE

Display enable pin from controller.

53

GND

Ground.

54

GND

Ground.


Applications:



1. Office Electronic Equipment: money counting machine, office phone set, copying mechine.

2. Household Appliances: refrigerator, air conditioner, induction cooker, microwave ovens.

3. Instruments: clinical thermometer, wire tester, digital watches, electronic weight scale.

4. Medical Devices: sphygmomanometer, ECG machine

5. Sports Equipment: Running machine.

6. Industrial Control Equipment: remote control, punched-card machine.

7. Information Terminal Display: POS, PDA, Handheld devices.
