TSD 122x32 Monochrome Graphic Lcd Display Module



  • Model Name: TSM12232A
  • LCD Type: 122*32 dots lcd
  • Resolution: 122*32
  • Viewing angle: 6H
  • Driver IC: SED1520
  • Voltage:5V
  • Operating Temperature: -20 ~ +70℃
  • Storage Temperature: -30 ~ +80℃

Description:



The TSM12232A is a 122*32 dots dot-matrix LCD module. It has a STN panel composed of 122 segments and 32 commons. The LCM can be easily accessed by microcontroller via 6800 series interface. We have STN-YG,STN-blue, FSTN, Positive/negative, Transflective/transmissive.Can customize the parameters according to your requirements such as polarizer type. lcd mode. connection way. operating Voltage.etc.

Number of dots

122*32 dots

Module Dimension(mm)

84.0x44.0x11.2 MAX

Active Area(mm)

53.64x15.64

Dot size

0.45(W)*0.4(H)

Dot pitch

0.49(W)*0.44(H)

Driving Method

1/32DUTY,1/6 BIAS,VDD=5.0V

Viewing direction

6H

Operating Temperature

-20 to 70

Storage Temperature

-30 to 80

Backlight

White

Driver IC

TBD

Display Mode

STN YG, Blue

Display type

Transmissive,Positive



Drawing:

Interface Description:

PIN SYMBOL
1 VDD
2 VSS
3 V0
4 RES
5 E1
6 E2
7 RW
8 RS
9 DB0
10 DB1
11 DB2
12 DB3
13 DB4
14 DB5
15 DB6
16 DB7
17 BLA
18 BLK

Applications:

For our TSM12232A dots Graphic lcd , it's widely using in industrial product, Industrial equipment and Industrial controllers, mechanical displays.etc.

Product Features:

1. TSM12232A dots lcd with 18pins

2. 5v working Voltage

3.SED1520 IC chip

4.font table support English/European/Japanses/Russian

5. TSD have full ranges of mono lcd including COB COG OLED.E-ink display. customized design are warmly welcome.



Get A Quote
If you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.
Related products
TST022QVXH-03
TSD 2.2 Inch TFT LCD Customization lcd panel 320 x (RGB) × 240 resolution
Part number: TST022QVXH-03 Resolution: 240RGB×320 View Direction: All o’clock Active area: 33.84×45.12   LCM: 40.40×56.48×2.22 Backlight:  LED   Weight: TBD Operating temperature: -20℃~70℃ Storage temperature: -30℃~80℃
800/m2 brightness 10.1”IPS TFT LCD Module
TSD 1280x800 10.1inch IPS TFT Touch LCD with HDMI/USB for Raspberry Pi
Model Name: TSM101WXBH-69C LCD Type: 10.1 inch HDMI TFT display Resolution: 1280x800 Viewing angle: All o'clock Brightness: 800 cd/m2 Driver IC: HX8861 Interface: HDMI Touch Screen: with Capacitive touch panel Operating Temperature: -20 ~ +70℃ Storage Temperature: -30 ~ +80℃
4.3 inch TFT LCD
TSD 4.3 inch 480x272 TN LCD Module
Model Name: TST043WQBS-36 LCD Type: 4.3 inch TFT LCD display Resolution: 480x272 Viewing angle: 12 o'clock Brightness: 500 cd/m2 Driver IC: ST7282 Interface: RGB 24 bits interface Touch Screen: without touch panel Operating Temperature: -20 ~ +70℃ Storage Temperature: -30 ~ +80℃
2.8 inch color TFT with new IC
super low cost solution 240X320 resolution 2.8 inch LCD display
super low cost solution 240X320 resolution 2.8 inch LCD display
1.3 inch round lcd display
TSD 1.3 inch SPI 240x240 RGB TFT display with high brightness
  Model Name: TST013QVHG-06D LCD Type: 1.3 inch IPS TFT display Resolution: 240x240 Viewing angle: All o'clock Brightness: 600 cd/m2 Driver IC: GC9A01 Interface: SPI Touch Screen: without Operating Temperature: -20 ~ +70℃ Storage Temperature: -30 ~ +80℃
 7” TFT LCD
TSD Low cost 800x480 resolution 7 inch TFT LCD Panel with RGB interface
Model Name: TST070WVBE-32 LCD Type: 7 inch TFT LCD display module Resolution: 800x480 Viewing angle: 12 o'clock Brightness: 500 cd/m2 Driver IC: EK9716BD&EK73002ACGB Interface: RGB 24bit Touch Screen: Available with RTP&CTP Operating Temperature: -20 ~ +70℃ Storage Temperature: -30 ~ +80℃
3.5 inch
IPS 3.5 inch 320x480 700 nits MCU/SPI+RGB interface TFT lcd display module
LCD Size: 3.5''(Normal, IPS). Brightness can be designed per customer's needs FPC Design: Customized Interface and Pins definition/Customized FPC Shape and Material LCD Viewing Angle: Full range of IPS LCD Options Super-wide viewing angle Glare or Anti-glare Polarizer O-film solution Backlight(BL) design: Customized Outline Dimension BL Frame Material: Meta/Plastic/Metal & Plastic integrated/Lifetime up to 30K hours high brightness up to 700 nits Customized CTP 0.96-50 inch: Slide, Single-touch in-cell, on-cell, G+G, G+F, GGG industry or automotive CTP solutions with OCA, OCR optical bonding

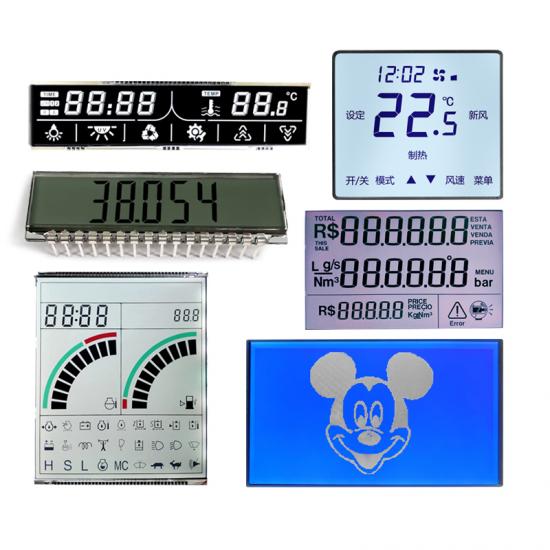

Customized monochrome LCD
