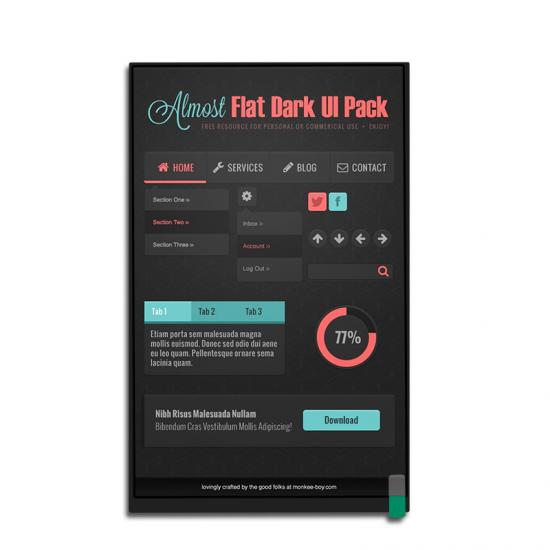

TSD 800x1280 resolution 8 inch IPS TFT LCD display with MIPI interface

  • Model Name: TST080HDBJ-16
  • LCD Type: 8 inch TFT LCD display
  • Resolution: 800*1280
  • Viewing angle: IPS all viewing angle
  • Brightness: 250 cd/m2
  • Driver IC: JD9366AB
  • Interface: MIPI
  • Touch Screen: without
  • Operating Temperature: -20 ~ +70℃
  • Storage Temperature: -30 ~ +80℃



Description:



TST050HDBJ-16 is 8  inch 800*1280 resolution LCD display with MIPI interface, standard brightness is 250cd/m2. For this 8 inch TFT LCD module, driver IC is JD90366AB, viewing direction is Free. color depth is 16.7M, operating voltage is 3.3V,  this lcd module can be with resistive or capacitive touch panel, customized design are also welcome. this 5 inch lcd is suitable for handheld devices. such as Pos machine. etc



Specification
Part No. TST080HDBJ-16
Outline Dimension(mm) 107.64(W)*184.10(H)*2.53(T)
Active Area(mm) 107.64(H) x 172.224(V)
Resolution(dots) 800*RGB*1280
Operating temperature(°C) -20-70
Storage temperature(°C) -30-80
Number of Pixel(pixels) 800RGB(H)xRGBx1280(V)
Touch panel without, available to custom
Dot Pitch 0.0642(W)x0.1790(H)
Pixel arrangement RGB Vertical stripe
Display mode Normal black,IPS, 8.0 inch TFT
Surface treatment Antiglare
View direction  ALL
Weight(g) TBD
Power Consumption(w) Panel 0.226(Typ.)
B/L system 1.674(Typ.)
Interface MIPI
Module lifetime(Hours) 50,000-100,000

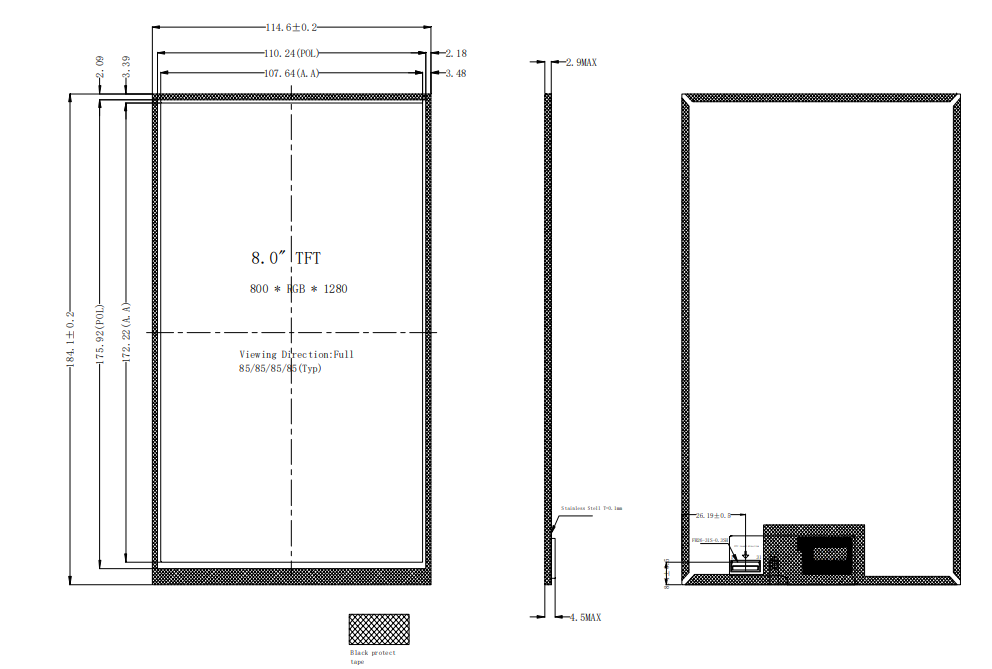

Drawing:

Interface Description:

Pin No.  Symbol Description
1 VLEDA LED Anode
2 VLEDA LED Anode
3 VLEDA LED Anode
4 NC Not connect
5 LEDK LED Cathode
6 LEDK LED Cathode
7 LEDK LED Cathode
8 LEDK LED Cathode
9 GND Ground
10 GND Ground
11 MIPI 2P MIPI-DSI data Lane 2 positive-end input/output pin
12 MIPI 2N MIPI-DSI data Lane 2 negative-end input/output pin
13 GND Ground
14 MIPI 1P MIPI-DSI data Lane 1 positive-end input/output pin
15 MIPI IN MIPI-DSI data Lane 1 negative-end input/output pin
16 GND Ground
17 MIPI CLKP MIPI-DSI clock Lane positive-end input pin
18 MIPI CLKN MIPI-DSI clock I.ane negative-end input pin
19 GND Ground
20 MIPI 0N MIPI-DSI data Lane 0 positive-end input/output pin
21 MIPI 0N MIPI-DSI data Lane 0 negative-end input/output pin
22 GND Ground
23 MIPI 3P MIPI-DSI data Lane 3 positive-end input/output pin
24 MIPI 3N MIPI-DSI data Lane 3 negative-end input/output pin
25 GND Ground
26 ID LCM ID
27 IoVCC Reset signal
28 GND Ground
29 IoVCC I/O power supply
30 VCC Power supply
31 VCC Power supply

Applications:

For our 8 inch LCD display TST080HDBJ-16, it's widely using in handheld device, Consumer electronics products.POS machine etc.

Product Features:

1. 8 inch 800*1280res. with 31pins MIPI interface

2. IPS lcd : full viewing angle

3.high contrast 800:1

4.Vertical lcd type

5. TSD have full ranges of TFT display from 0.96 inch to 32 inch, customized design are warmly welcome.
