Description:

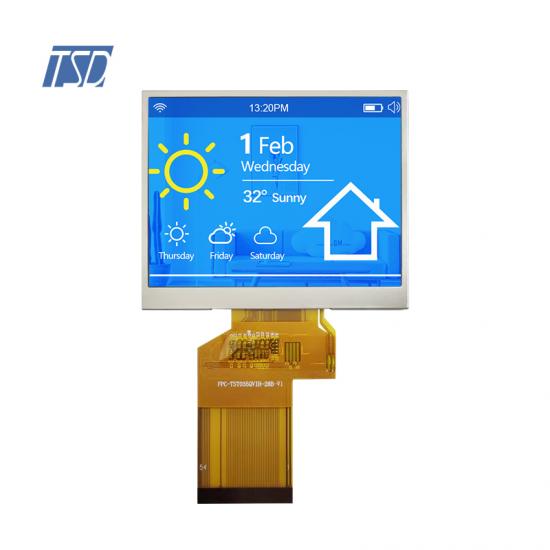

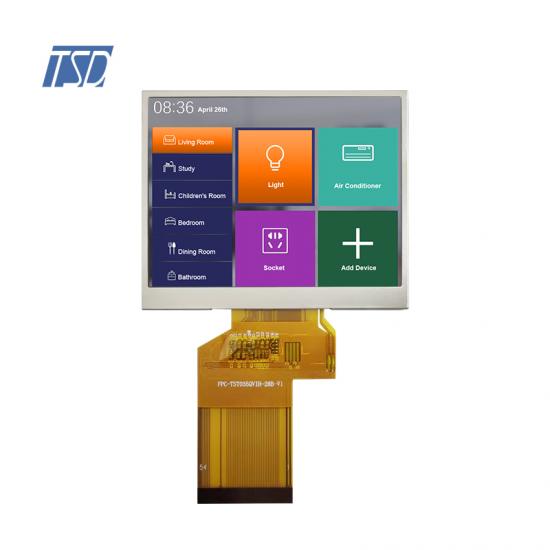

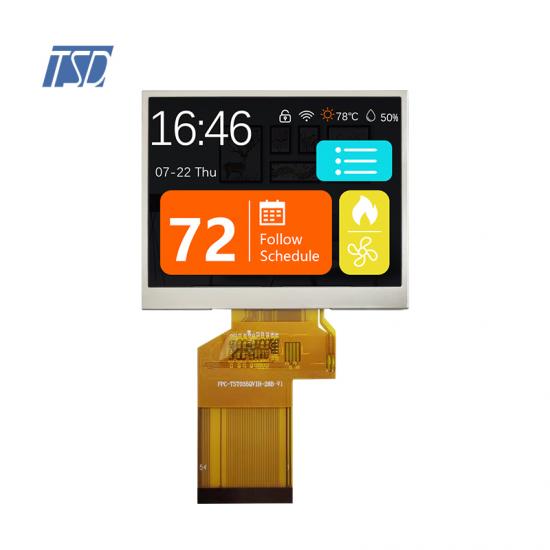

TST035QVIH-28B is a transmission type color active matrix liquid crystal display (LCD), using amorphous thin film transistor (TFT) as a switching device. This product is composed of TFT LCD panel, driver IC, FPC, PCB board, backlight, The active display area is a 70.08*52.56 measurement on the diagonal, with an active resolution of 320*RGB*240. This 3.5 inch LCD can be used to display pictures and text.
Drawing:
Specifications:
|
General Specification |
|
|
Part No. |
TST035QVIH-28B |
|
Outline Dimension(mm) |
76.90*63.90*3.27 |
|
Active Area(mm) |
70.08*52.56 |
|
Resolution(dots) |
320*RGB*240 |
|
Operating temperature(°C) |
-20 ~ +70°C |
|
Storage temperature(°C) |
-30 ~ +80°C |
|
BL type |
6 LED |
|
Touch panel |
No |
|
Driver IC |
HX8238-D |
|
Pixel arrangement |
RGB |
|
Display mode |

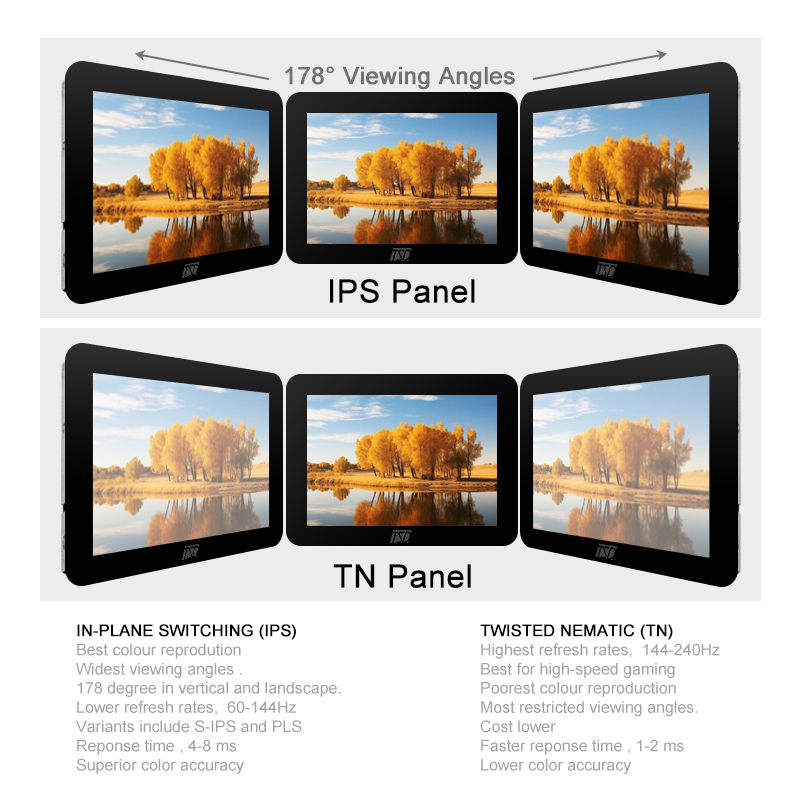

Normal white,TN, 3.5 inch TFT |
|
Surface treatment |
Antiglare |
|
View direction |
12 o'clock |
|
Weight(g) |
20 |
Applications:
1. Office Electronic Equipment: money counting machine, office phone set, copying mechine.
2. Household Appliances: refrigerator, air conditioner, induction cooker, microwave ovens.
3. Instruments: clinical thermometer, wire tester, digital watches, electronic weight scale.
4. Medical Devices: sphygmomanometer, ECG machine
5. Sports Equipment: Running machine.
6. Industrial Control Equipment: remote control, punched-card machine.
7. Information Terminal Display: POS, PDA, Handheld devices.
8. Security Products: elevator controller, electronic indicator.
