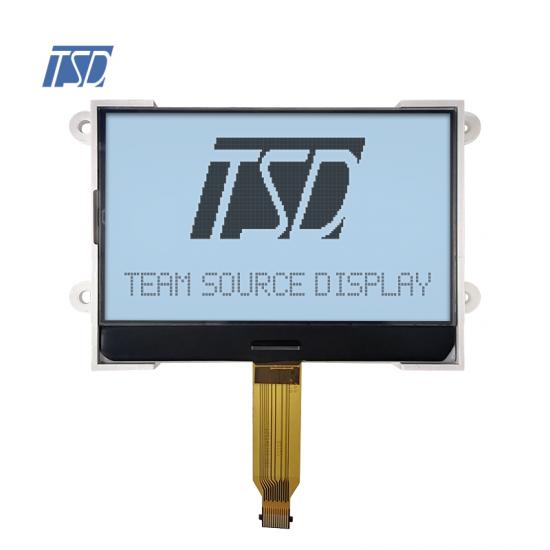

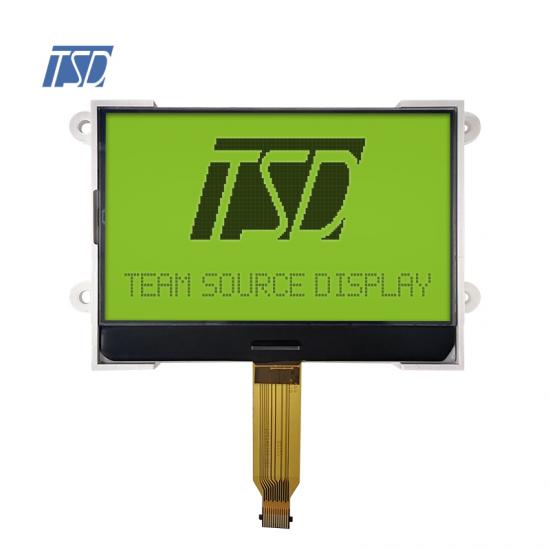

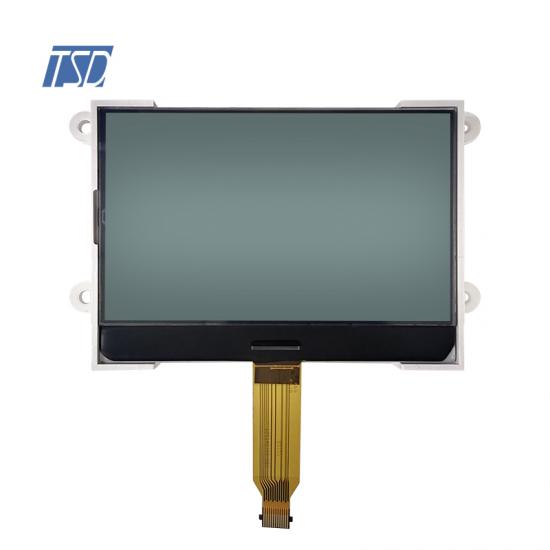

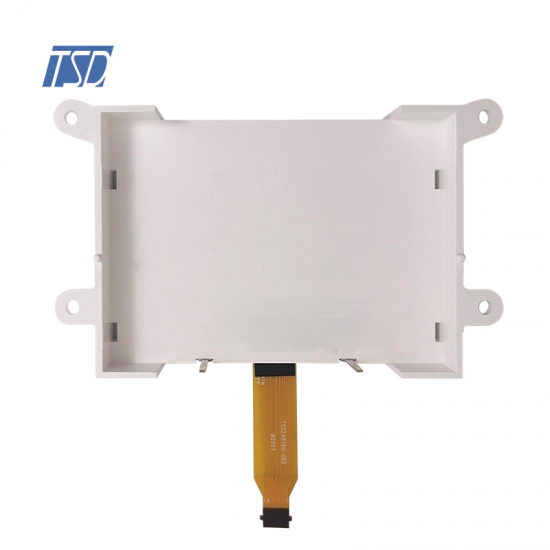

TSD Custom SPI interface 240x160 Graphic Monochorme LCD

  • Model Name: Custom-TSG240160-002
  • LCD Type: FSTN, positive LCD
  • Resolution: 240X160
  • Viewing angle: 6 o'clock
  • Driver IC: ST75256
  • Interface: SPI
  • Operating Temperature: -20 ~ +70℃
  • Storage Temperature: -30 ~ +80℃



Description:



Custom-TSG240160-002 is a liquid crystal display (LCD) panel with a resolution of 240 pixels in width and 160 pixels in height, specifically designed for displaying graphical content. The resolution indicates the number of individual dots, or pixels, that can be displayed on the screen. Unlike character-based LCDs that are primarily used for displaying text, graphic LCDs allow for the representation of images, icons, and complex graphical elements.



This 240x160 LCD is FSTN, POSITIVE mode, and the viewing angle is 6H. But we can make different customization according to the customer's needs, the resolution, interface, structure, etc., all can be customized.

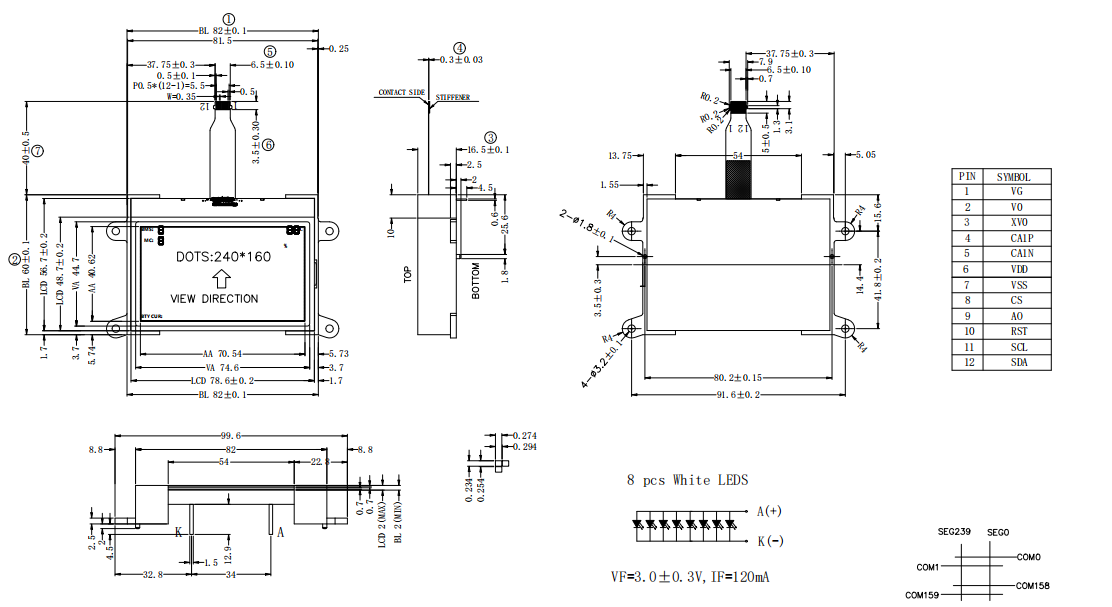

Drawing:




Specifications:



General Specification
Part No.  Custom-TSG240160-002
Outline Dimension(mm)

82(W)x60(H)x16.5(D)

Active Area(mm) 70.54(W) x 40.62(H)
Resolution(dots)  240x160
Operating temperature(°C) -20 ~ +70°C
Storage temperature(°C) -30 ~ +80°C
Driver IC ST75256
Pixel arrangement RGB-stripe
View direction 6H
Interface SPI





Pins Description
Pin No.  Symbol Description
1 VG /
2 V0 /
3 XV0 /
4 CAIP /
5 CAIN /
6 VDD /
7 VSS /
8 CS /
9 A0 /
10 RST /
11 SCL /
12 SDA
/




Applications:



A 240x160 LCD can be found in various product applications where a small, relatively low-resolution display is sufficient. Here are a few examples:

  1. Handheld Gaming Consoles: such as retro gaming consoles or handheld gaming systems, may utilize a 240x160 LCD for displaying game graphics and menus.

  2. Industrial Equipment: such as handheld measurement devices, data loggers, or portable test equipment, may incorporate a 240x160 LCD for displaying readings, measurements, and status information.

  3. Medical Devices: including portable patient monitors or diagnostic tools, might feature a 240x160 graphic LCD to display vital signs, test results, or other relevant information.

  4. Small Appliances: such as digital thermometers, kitchen timers, or compact weather stations, may employ a 240x160 LCD to show measurements, timers, or weather data.

  5. IoT (Internet of Things) Devices: such as smart home controllers, wearable devices, or mini information panels, may utilize a 240x160 LCD for displaying relevant data or control interfaces.


Product Features:



1. Typically compact and small in size, making it suitable for devices with limited space or portable applications.

2. SPI interface is very convenient for the customers to control.

3. FPC cable is very easy for the customers to connect with.

4. Support different customization.
