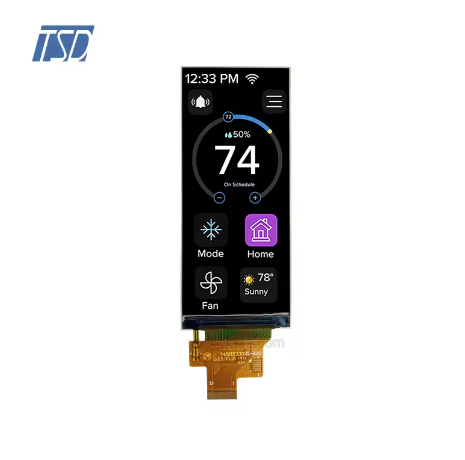

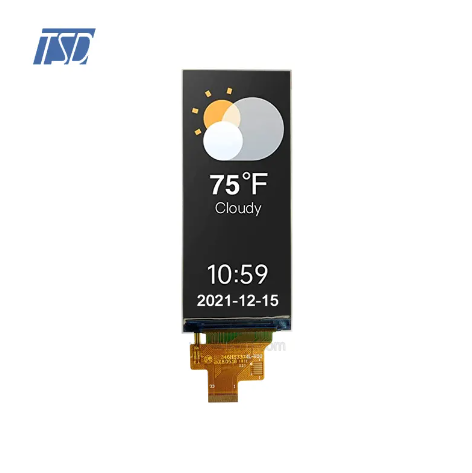

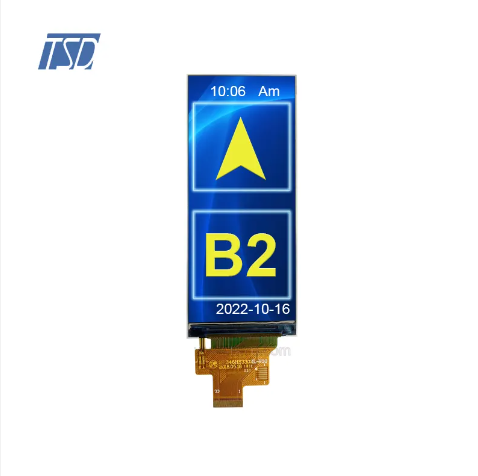

TSD 3.5 Inch TFT LCD Customization lcd panel 340*RGB*800 resolution

Part number: TST035WVBS-53

Resolution: 340*RGB*800

View Direction: All o’clock

Active area: 33.966*81

LCM: 37.27*89*1.6

Backlight:  LED

Weight: TBD

Operating temperature: -20℃~70℃

Storage temperature: -30℃~80℃

Description:

TST035WVBS-53 is a transmissive type color active matrix liquid crystal display which uses amorphous thin film transistor as switching devices. this product composedof a TFT LCD panel, a driver IC, a FPC, and a LED-backlight unit. The active display area is 33.966*81 and the native resolution is 340*RGB*800. feathers of this product are listed in the following table

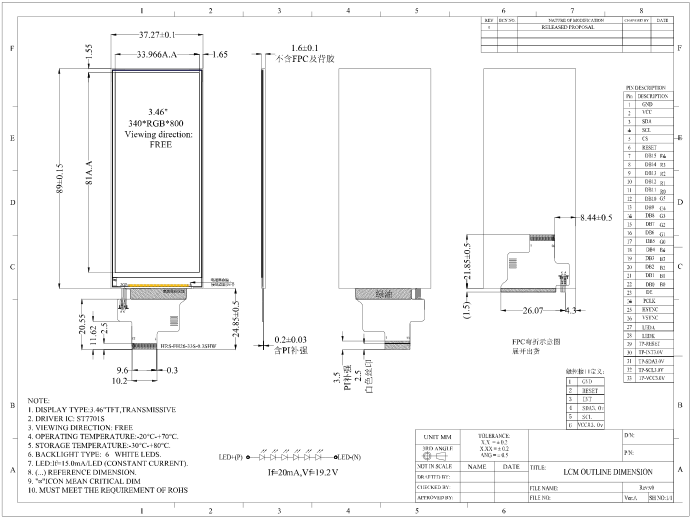

Drawing:



Specification



General Specification

Part No.

TST035WVBS-53

Display Size(Diagonal)

3.46 inch

LCD type

TFT,Transflective,Normally white

Resolution

340*RGB*800

View Direction

ALL o’clock

Module Outline

37.27*89*1.6

Active Area

33.966*81

Viewing Area

ALL o’clock

Backlight

LED

Driver IC

ST7701S

Interface

16 bits RGB

Weight(g)

TBD

Power Consumption(w)

Panel

TBD(Typ.)

B/L system

TBD(Typ.)

Operating Temperature

-2070

Storage Temperature

-3080





Pins Description

Pin No.

Symbol

Description

1

GND

System Ground. (0V)

2

VDD

Power Supply forAnalog, VDD=2.4V~3.3V.

3

SDA

SPI interface input/output pin. The data is latched on the rising edge of the SCL signal.

4

SCL

This pin is used to be serial interface clock.

5

CS

Chip selection pin; Low enable, High disable.

6

RESET

This signal will reset the device and it must be applied to properly initialize the chip.

Signal is active low.

7~22

D15-D0

RGB data

23

DE

Data enable signal for RGB interface operation.

24

PCLK

Clock signal for RGB interface operation.

25

HSYNC

Horizontal signal input

26

VSYNC

Vertizontal signal input

27

LEDA

LED Anode

28

LEDK

LED Cathode

29

TP-RESET

System reset of Touch PanelIf no usedlet this pin open.

30

TP-INT

3.0V Interrupt signal to main processor of Touch PanelIf no usedlet this pin open.

31

TP-SDA

3.0V I²C data signal of Touch PanelIf no usedlet this pin open.

32

TP-SCL

3.0V I²C clock signal of Touch PanelIf no usedlet this pin open.

33

TP-VCC

3.0V Analog power supply of Touch Panel. If no usedlet this pin open



 Applications:



1. Office Electronic Equipment: money counting machine, office phone set, copying mechine.

2. Household Appliances: refrigerator, air conditioner, induction cooker, microwave ovens.

3. Instruments: clinical thermometer, wire tester, digital watches, electronic weight scale.

4. Medical Devices: sphygmomanometer, ECG machine

5. Sports Equipment: Running machine.

6. Industrial Control Equipment: remote control, punched-card machine.

7. Information Terminal Display: POS, PDA, Handheld devices.
