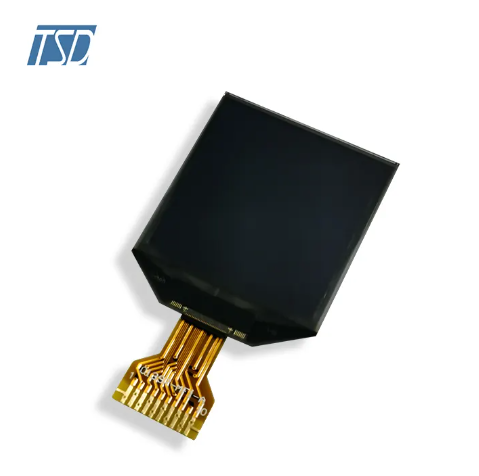

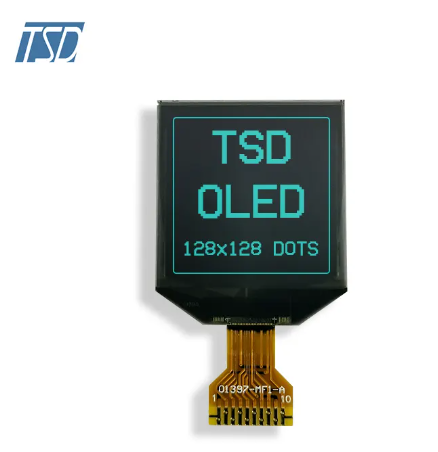

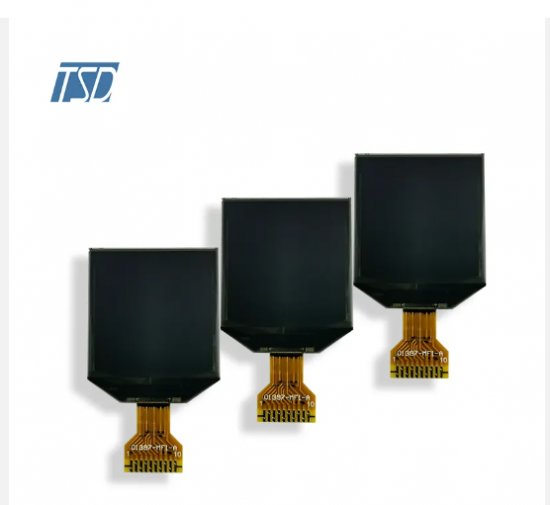

TSD 128*128 OLED display panel White Color SH1107 Driver IC

Display Color: White

Dot Matrix:128×128

Driver IC: SH1107

Interface: 4-wire SPI

Wide range of operating temperature: -40℃ to 70℃

Description:



TSO128128-A01 is a monochrome OLED display module with 128×128 dot matrix. The characteristics of this display module are high brightness, self-emission, high contrast ratio, slim/thin outline, wide viewing angle,wide temperature range, and low power consumption.

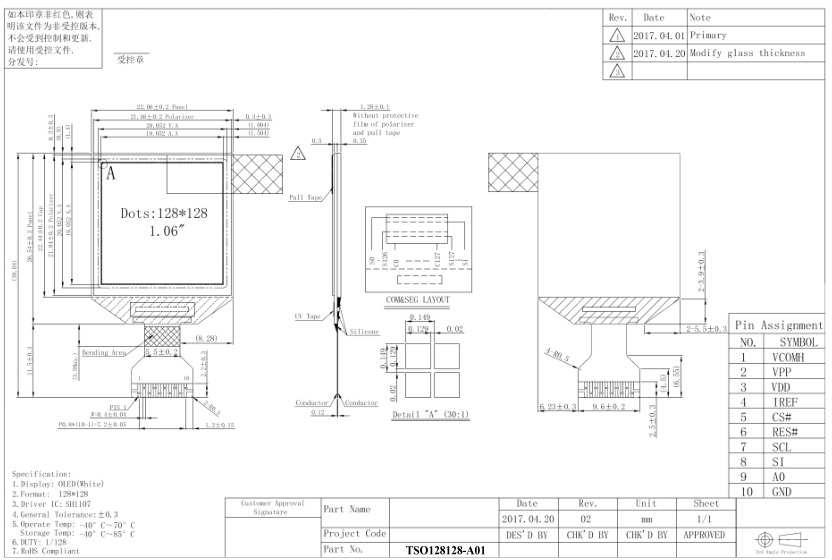

Drawing:



Specification



General Specification

Part No.

TSO128128-A01

Dot Matrix

128(W)×128(H)

Dot Size

0.129(W)×0.129(H)

Dot Pitch

0.149(W)×0.149(H)

Aperture Rate

75

Active Area

19.052(W)×19.052(H)

Panel Size

22.06(W) ×26.54(H) × 1.05(T)

Module Size

22.06(W) ×38.04(H) × 1.28(T)

Diagonal A/A Size

1.06

Module Weight

1.09±10%



Pins Description

Pin No.

Symbol

Description

1

VCOMH

COM signal deselcted voltage level. A capacitor should be connected between

this pin and VSS. No external power supply is allowed to connect to this pin.

2

VPP

Power supply for panel driving voltage.

3

VDD

Power supply pin for core logic operation.

4

IREF

This pin is the segment output current reference pin. A resistor should be

connected between this pin and VSS to maintain the current a

5

CS#

This pin is the chip select input connecting to the MCU.

6

RES#

This pin is reset signal input.

7

SCL

The serial clock input pad.

8

SI

The serial data input pad.

9

A0

This pin is Data/Command control pin connecting to the MCU.

10

GND

Ground pin. It must be connected to external ground



 Applications:



1. Office Electronic Equipment: money counting machine, office phone set, copying mechine.

2. Household Appliances: refrigerator, air conditioner, induction cooker, microwave ovens.

3. Instruments: clinical thermometer, wire tester, digital watches, electronic weight scale.

4. Medical Devices: sphygmomanometer, ECG machine

5. Sports Equipment: Running machine.

6. Industrial Control Equipment: remote control, punched-card machine.

7. Information Terminal Display: POS, PDA, Handheld devices.
