Description:

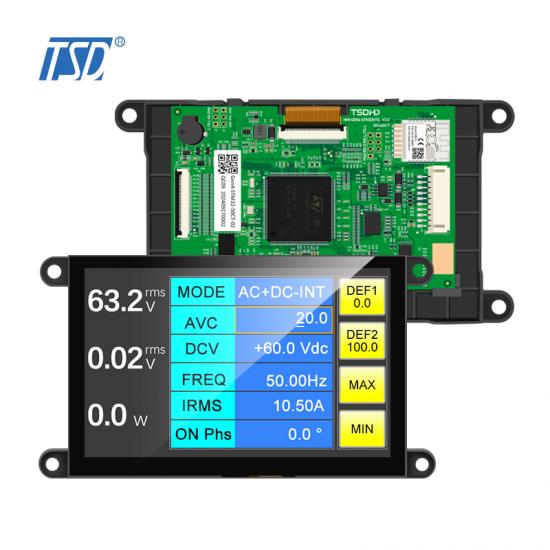

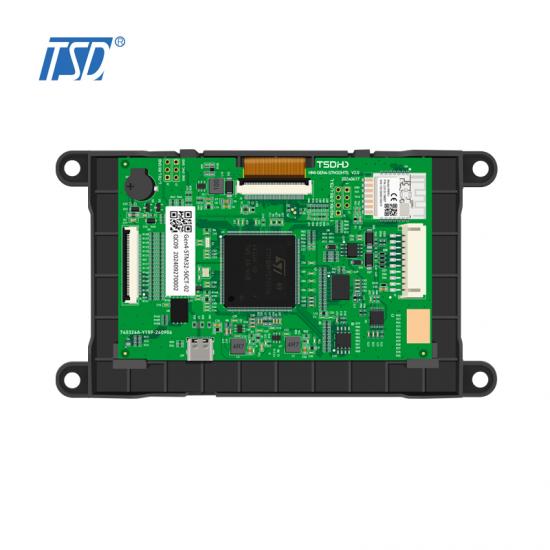

Gen5-STM32-50CT-02 is a color active matrix thin film transistor (TFT) liquid crystal display (LCD) that uses amorphous silicon TFT as a switching device. This model is composed of TFT LCD panel, Backlight, Capacitive touch screen, Housing,and STM32H7S7x control board.This TFT LCD has a 4.3 (16:9) inch diagonally measured active display area with WVGA (800 horizontal by 480 vertical pixel) resolution.

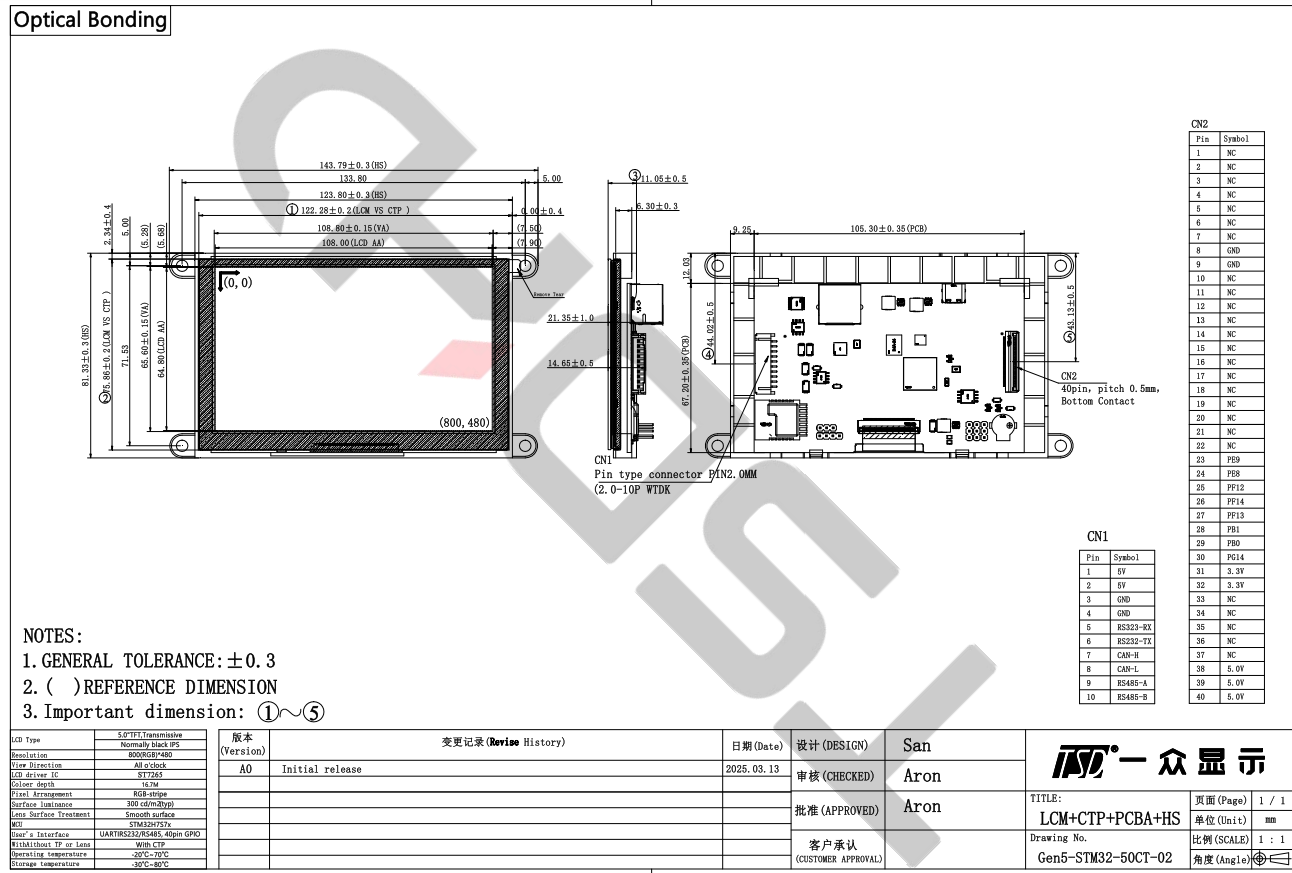

Drawing:
Specifications:
| General Specification | ||
| Part No. | Gen5-STM32-50CT-01 | |
| Outline Dimension(mm) |
143.79x81.33x14.65mm |
|
| Active Area(mm) | 108x64.8mm | |
| Resolution(dots) | 800x (RGB) x480 | |
| Operating temperature(°C) | -20 ~ +70°C | |
| Storage temperature(°C) | -30 ~ +80°C | |
| Number of Pixel(pixels) | 800RGB(H)xRGBx480(V) | |
| Touch panel | with CTP | |
| Driver IC | STM32H7R7x | |
| Pixel arrangement | RGB-stripe | |
| Display mode | Normal black, IPS, 5 inch TFT | |
| Surface treatment | Antiglare | |
| View direction | All |
|
| Weight(g) | TBD | |
| Power Consumption(w) | Panel | TBD(Typ.) |
| B/L system | TBD(Typ.) | |
| Interface | RS232/RS485/CAN,40pin GPIO | |
| Module lifetime(Hours) | 30,000-50,000 | |
| Interface Definition-CN1 | ||
| Pin No. | Symbol | Description |
| 1 | 5V | Power supply (+5.0V) |
| 2 | 5V | Power supply (+5.0V) |
| 3 | GND | Ground |
| 4 | GND | Ground |
| 5 | RS232-RX |
RS232 receive input |
| 6 | RS232-TX |
RS232 transmit output |
| 7 | CAN-H | Can bus data transfer, high level |
| 8 | CAN-L |
Can bus data transfer, low evel |
| 9 | RS485-A |
RS485 Driver Output/Receiver Input Non-inverting |
| 10 | RS485-B |
RS485 Driver Output/Receiver Input Inverting |
| Interface Definition-CN2 | ||
| Pin No. | Symbol | Description |
| 1~7 | NC | No connection |
| 8~9 | GND | Ground |
| 10~22 | NC | No conection |
| 23 | PE9 | TIM1_CH1, UART7_RTS/UART7_DE, FMC_A14, FMC_BA0,EVENTOUTNC |
| 24 | PE8 |
TIM1_CH1N, UART7_TX, FMC_A12, EVENTOUT |
| 25 | PF12 |
USART1_RX,SPI5_MISO,ADC1_INP6,ADC1_INN2,FMC_D19, EVENTOUT |
| 26 | PF14 | USART1_CTS,SPI5_MOSI，FMC_A24,LCD_G0,EVENTOUT, ADC2_INP6,ADC2_INN2 |
| 27 | PF13 | USART1_TX,SPI5_NSS,PSSI_D10,FMC_D20,ADC2_INP2, DCMIPP_D10,EVENTOUT |
| 28 | PB1 | TIM1_CH3N,TIM3_CH4,TIM9_CH2,FDCAN2_TX,LCD_G2 ETH_MII_TXD1/ETH_RMII_TXD1,FMC_NOE,[RNG_S2],EVENTOUT ADC12_INP5 |
| 29 | PB0 | TIM1_CH2N,TIM3_CH3,TIM9_CH1, SPI1_SCKI2S1_CK,UART4_CTS, ETH_MII_TXD0/ETH_RMII_TXD0,GFXTIM_TE,[RNG_S1], LCD_VSYNC,EVENTOUT,ADC12_INP9,ADC12_INN5 |
| 30 | PG14 | TRACED1，LPTIM1_ETR,SPI6_MOSI/I2S6_SDO,SDMMC2_D7, ETH_MII_TXD1/ETH_RMII_TXD1,FMC_D31,LCD_B1,EVENTOUT |
| 31~32 | 3.3V | 3.3V Output |
| 33~37 | NC | No connection |
| 38~40 | 5V | Power supply 5V input |
- Features:
- 1. Implementing multimodal human-computer interaction based on TouchGFX
- 2. Powerful 2.5D NeoChrom GPU - smart DMA architecture memory/GPU, High refresh rate and smooth full screen animation effects
- 3. Integrated with TUYA WiFi module, using SDIO communication, achieving high-speed remote OTA function
- 4. Rich peripheral interfaces: RS485, RS232, and CAN, with 40pin GPIO expansion interface
- 5. Integrated buzzer, support chord sounds
- 6. High reliability and performance, widely applicable to industries such as home appliances, industry, and new energy etc.
- 7. For 1024x600 resolution, it can achieve a smooth 60fps refresh rate.
- Applications:

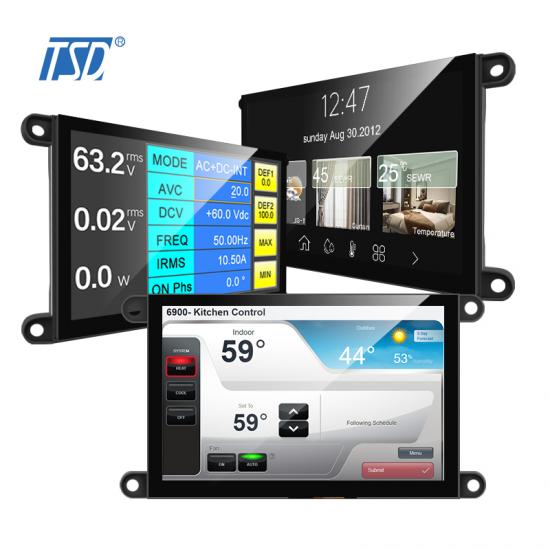

- Team Source Display (TSD) specialized in LCD display (0.96 inch to 32 inch) & Touch panel & Intelligent Control & HMI modules. We have the ability to customize STM32 embedded displays basing on customer's requirements, contact us today to get more details freely. For this GEN5 Intelligence HMI display, the applications are as belows:
-
1. Office Electronic Equipment: money counting machine, office phone set, copying mechine.
2. Household Appliances: refrigerator, air conditioner, induction cooker, microwave ovens.
3. Instruments: clinical thermometer, wire tester, digital watches, electronic weight scale.
4. Medical Devices: sphygmomanometer.
-
5. Sports Equipment: running machine.
6. Industrial Control Equipment: remote control, punched-card machine.
7. Information Terminal Display: POS, PDA, Handheld devices.
8. Security Products: elevator controller, electronic indicator
- And other other fields...
