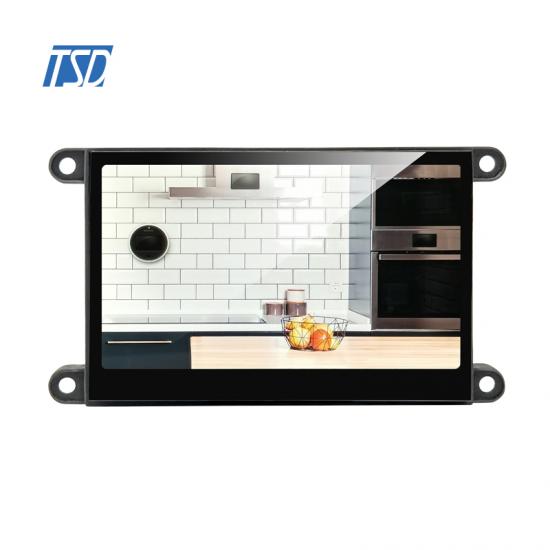

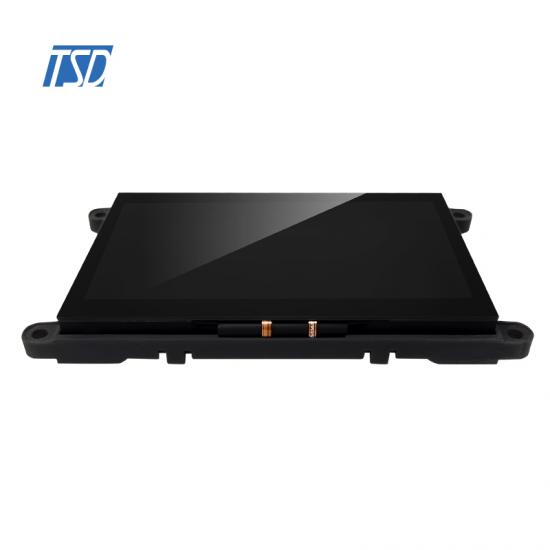

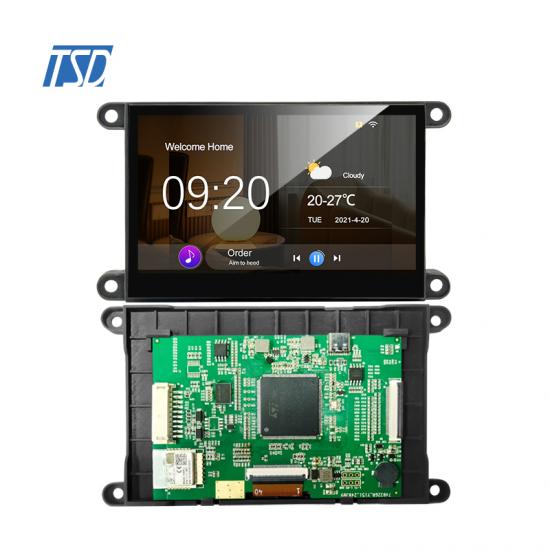

TSD Gen4 Intelligence lcd display 5 Inch 800x480 resolution tft lcd touch screen modules with STM32 controller



  • Model Name: Gen4-STM32-50CT-01
  • LCD Type: 5 inch smart module display
  • Resolution: 800x480
  • Viewing angle: All o'clock
  • Surface luminance: 750 cd/m2
  • Controller: STM32H7R7x
  • User Interface: UART/RS232/RS485,40pin GPIO
  • Touch Screen: with CTP
  • Operating Temperature: -20 ~ +70℃
  • Storage Temperature: -30 ~ +80℃









Description:



Gen4-STM32-50CT-01 is a color active matrix thin film transistor (TFT) liquid crystal display (LCD) that uses amorphous silicon TFT as a switching device. This model is composed of TFT LCD panel, Backlight, Capacitive touch screen, Housing,and STM32H7S7x control board.This TFT LCD has a 5.0 (16:9) inch diagonally measured active display area with WVGA (800 horizontal by 480 vertical pixel) resolution.




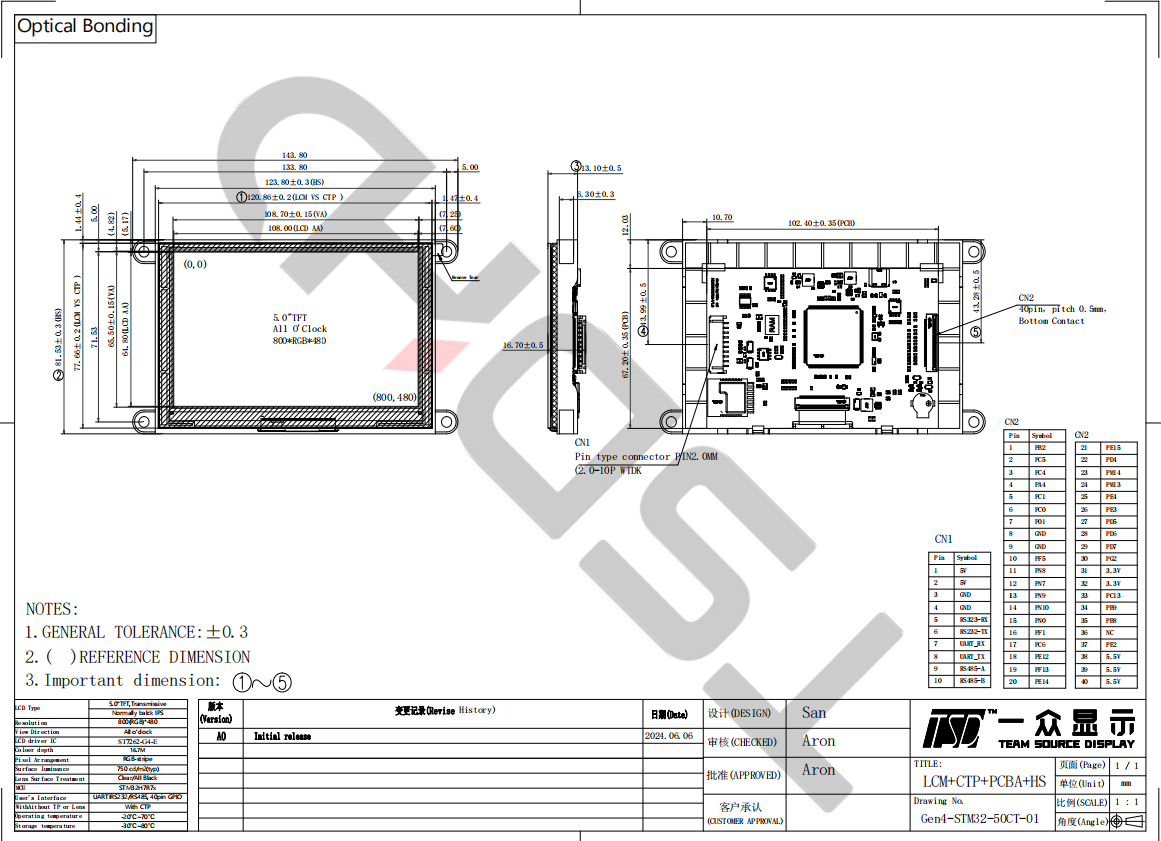

Drawing:



5 inch smart touch modules


Specifications:



General Specification
Part No.  Gen4-STM32-50CT-01
Outline Dimension(mm)

143.8x81.53x13.1mm

Active Area(mm) 108x64.8mm
Resolution(dots) 800x (RGB) x480
Operating temperature(°C) -20 ~ +70°C
Storage temperature(°C) -30 ~ +80°C
Number of Pixel(pixels) 800RGB(H)xRGBx480(V)
Touch panel  with CTP
Driver IC STM32H7R7x
Pixel arrangement RGB-stripe
Display mode Normal black, IPS, 5 inch TFT
Surface treatment Antiglare
View direction  All
Weight(g) TBD
Power Consumption(w) Panel TBD(Typ.)
B/L system TBD(Typ.)
Interface UART/RS232/RS485,40pin GPIO
Module lifetime(Hours) 30,000-50,000





Interface Definition-CN1
Pin No.  Symbol Description
1 5V Power supply (+5.0V)
2 5V Power supply (+5.0V)
3 GND Ground
4 GND Ground
5 RS232-RX
RS232 receive input
6 RS232-TX
RS232 transmit output
7 UART_RX UART receive input
8 UART_TX
UART transmit output
9 RS485-A
RS485 Driver Output/Receiver Input Non-inverting
10 RS485-B
RS485 Driver Output/Receiver Input Inverting







Interface Definition-CN2
Pin No.  Symbol Description
1 PB2 RTC_OUT2, SAI1_D1,ADF1_DATIN0, SAI1_SD_A,SPI3_MOSI/I2S3_SDO, LCD_B2, FMC_NWE
2 PC5 SAI1_D3,DCMIPP_D15,FMC_A21,FMC_A5
3 PC4 I2S1_MCK,FMC_A19,SPDIFRX_IN3,FMC_A3
4 PA4 TIM5_ETR, LPTIM3_CH2,SPI1_NSS/I2S1_WS,SPI3_NSS/I2S3_WS, USART2_CK,SPI6_NSS/I2S6_WS,PSSI_DE, OTG_HS_SOF,ETH_MDIO, LCD_R3,DCMIPP_HSYNC
5 PC1
TRACED0, AI1_D1,ADF1_DATIN0,SPI2_MOSI/I2S2_SDO,SAI1_SD_A, FMC_A16,SDMMC2_CK, ETH_MDC,FMC_A0, MDIOS_MDC
6 PC0
GFXTIM_FCLKCAL,SAI2_FS_B, FMC_NBL1,GFXTIM_LCK
7 PO1 XSPIM_P1_NCS1
8~9 GND Ground
10 PF5 DCMIPP_D15,UCPD_UCPDFRSTX1,PSSI_D15, FMC_CLE,ETH_MII_RXD2, FMC_A16
11 PN8 XSPIM_P2_IO4,FMC_D4/FMC_AD4
12 PN7 XSPIM_P2_NCLK,FMC_CLK
13 PN9 XSPIM_P2_IO5,FMC_D5/FMC_AD5
14 PN10 XSPIM_P2_IO6,FMC_D6/FMC_AD6
15 PN0 XSPIM_P2_DQS0,FMC_NE4
16 PN1 XSPIM_P2_NCS0,FMC_NBL0
17 PC6 TIM3_CH1, TIM9_CH1,I2S2_MCK, SDMMC1_D0DIR,PSSI_D0, SDMMC2_D6,SDMMC1_D6, DCMIPP_D0,
18 PE12 TIM1_CH3N, SPI4_SCK,SAI2_SCK_B, FMC_SDNRAS
19 PE13 TIM1_CH3, SPI4_MISO,SAI2_FS_B, FMC_SDNCAS
20 PE14 TIM1_CH4,GFXTIM_FCLKCAL,SPI4_MOSI, SAI2_MCLK_B,FMC_SDNE0,GFXTIM_LCKCAL
21 PE15 TIM1_BKIN,GFXTIM_LCKCAL,FMC_SDCKE0,GFXTIM_FCLKCAL
22 PD4 DCMIPP_HSYNC, PSSI_DE,USART2_RTS,ETH_PHY_INTN, FMC_NL
23 PM14
PI5_MISO, OTG_FS_VB
24 PM13
SPI5_MOSI, OTG_FS_ID
25 PE4 TRACED1, SAI1_D2,ADF1_DATIN0, TIM15_CH1N,SPI4_NSS, SAI1_FS_A,PSSI_D4,FMC_D13/FMC_AD13,DCMIPP_D4
26 PE3 TRACED0, LPTIM5_ETR,TIM15_BKIN, SAI1_SD_B,ETH_MII_RXD3,FMC_D12/FMC_AD12
27 PD5 TIM1_CH4N,DCMIPP_PIXCLK,PSSI_PDCK, USART2_TX,FMC_NCE, FMC_NE2
28 PD6 SAI1_D1,ADF1_DATIN0,ETH_CLK,SPI3_MOSI.I2S3_SDOMUSART2_ RX,FMC_INT,SDMMC2_CK,FMC_NE3,DCMIPP_D10
29 PD7 ETH_MII_RX_CLK/ETH_RMII_REF_CLK,SPI1_MOSI/I2S1_SDO,PSSI_ D2, USART2_CK,SPDIFRX_IN1,SDMMC2_CMD, FMC_D8/FMC_AD8,DCMIPP_D2,
30 PB2 LCD_HSYNC
31~32 3.3V 3.3V output
33 PC13 TAMP_IN1/TAMP_OUT2,RTC_OUT1/RTC_TS, WKUP3
34 PB9 TIM17_CH1, TIM4_CH4,I2C1_SDA/I3C1_SDA, SPI2_NSS/I2S2_WS,PSSI_D7, SDMMC1_CDIR, UART4_TX, FDCAN1_TX,SDMMC2_D5, SDMMC1_D5,DCMIPP_D7
35 PB8 TIM16_CH1, TIM4_CH3,USART3_CK,I2C1_SCL/I3C1_SCL,PSSI_D6, SDMMC1_CKIN,UART4_RX, FDCAN1_RX,SDMMC2_D4, ETH_MII_TXD3,SDMMC1_D4, DCMIPP_D6,FMC_D9/FMC_AD9,
36 NC Not connect
37 PE2 TRACECLK, ADF1_CCK0,SAI1_CK1, LPTIM5_IN1,SPI4_SCK, SAI1_MCLK_A,ETH_MII_TXD3, FMC_D11/FMC_AD11,TIM1_CH2N,
38~40 5V Power supply input(+5.0V)




  • Features:
  •
  • 1. Implementing multimodal human-computer interaction based on TouchGFX
  • 2. Powerful 2.5D NeoChrom GPU - smart DMA architecture memory/GPU, High refresh rate and smooth full screen animation effects
  • 3. Integrated with TUYA WiFi module, using SDIO communication, achieving high-speed remote OTA function

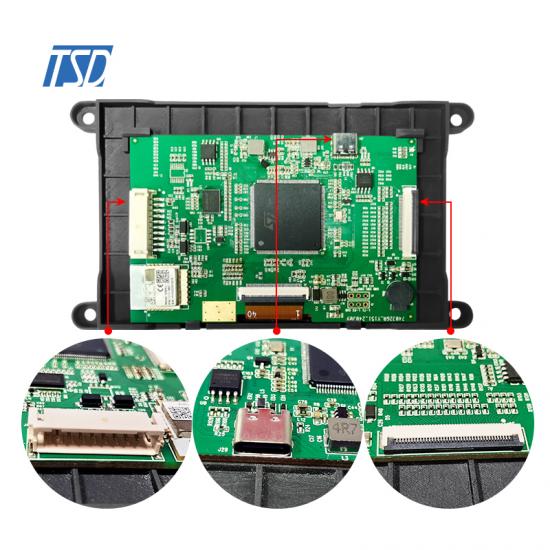

  • 4. Rich peripheral interfaces: UART, RS485, RS232, and Type-C, and with a 40pin GPIO expansion interface
  • 5. Integrated buzzer, support chord sounds
  • 6. High reliability and performance, widely applicable to industries such as home appliances, industry, and new energy etc.
  •

  • Applications:
  •
  • Team Source Display (TSD) specialized in LCD display (0.96 inch to 32 inch) & Touch panel & Intelligent Control & HMI modules. We have the ability to customize STM32 embedded displays basing on customer's requirements, contact us today to get more details freely. For this GEN-4 Intelligence HMI display, the applications are as belows:
  •
  • 1. Office Electronic Equipment: money counting machine, office phone set, copying mechine.

    2. Household Appliances: refrigerator, air conditioner, induction cooker, microwave ovens.

    3. Instruments: clinical thermometer, wire tester, digital watches, electronic weight scale.

    4. Medical Devices: sphygmomanometer.

  • 5. Sports Equipment: running machine.

    6. Industrial Control Equipment: remote control, punched-card machine.

    7. Information Terminal Display: POS, PDA, Handheld devices.

    8. Security Products: elevator controller, electronic indicator

  • And other other fields...
  •
