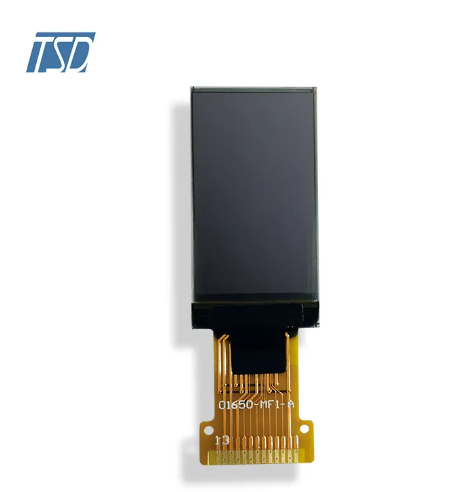

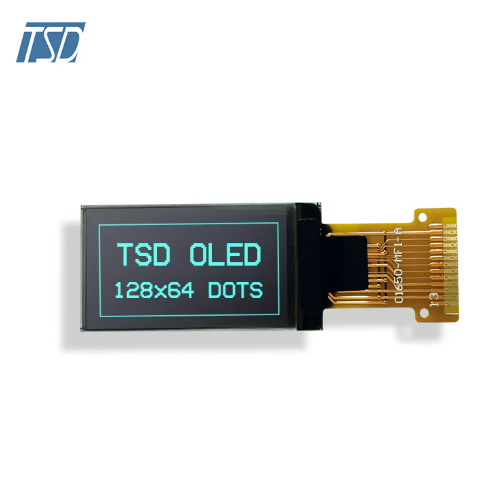

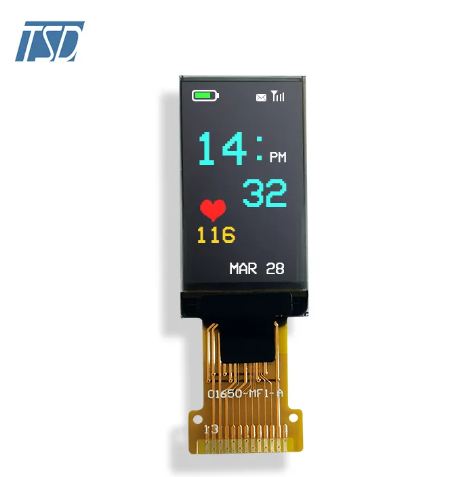

TSD oled 128*64 dots SH1107 Driver IC 4-wire SPI,I²C Interface

Display Color: White

Dot Matrix:128×64

Driver IC: SH1107

Interface: 4-wire SPI,I²C

Wide range of operating temperature: -40℃ to 70℃

Description:





TSO12864-A04 is a monochrome OLED display module with 128×64 dot matrix. The characteristics of this display module are high brightness, self-emission, high contrast ratio, slim/thin outline, wide viewing angle, wide temperature range, and low power consumption.

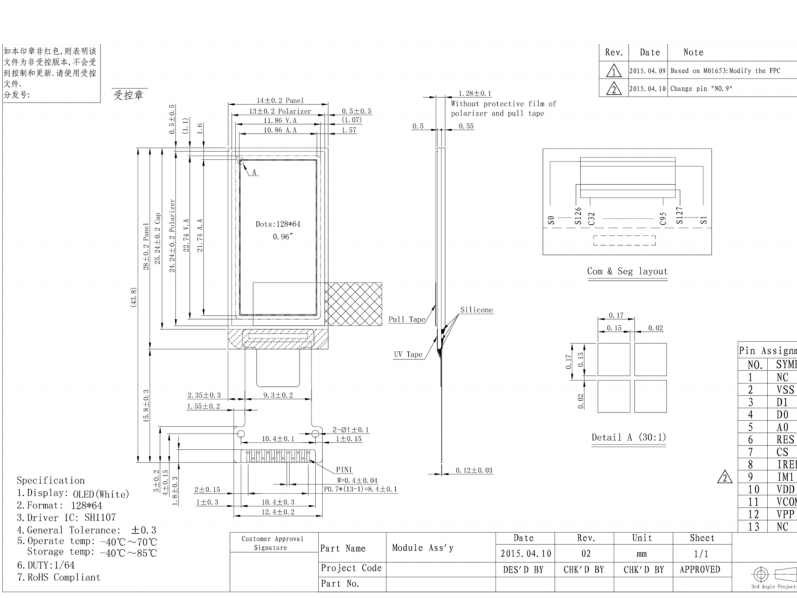

Drawing:





Specification



General Specification

Part No.

TSO12864-A04

Dot Matrix

128(W)×64(H)

Dot Size

0.15(W)×0.15(H)

Dot Pitch

0.17(W)×0.17(H)

Aperture Rate

78

Active Area

10.86(W)×21.74(H)

Panel Size

14(W) ×28(H) × 1.05(T)

Module Size

14(W) ×43.8(H) × 1.28(T)

Diagonal A/A Size

0.96

Module Weight

1.99±10%

Surface treatment

Antiglare





Pins Description

Pin No.

Symbol

Description

1

13

No connect

2

VSS

This is a Ground pin

3

D1

Serial data input PIN

4

D0

Serial clock input PIN

5

A0

his pin is Data/Command control pin connecting to the MCU.

6

RES

This pin is reset signal input.

7

CS

This pin is the chip select input connecting to the MCU.

8

IREF

This pin is the segment output current reference pin.

9

IM1

MCU bus interface selection pins.Table 5-1

10

VCC

DD must always set to be equivalent to or higher than VDD.

11

VCOM

COM signal deselcted voltage level.

12

VPP

Power supply for panel driving voltage.



Applications:



1. Office Electronic Equipment: money counting machine, office phone set, copying mechine.

2. Household Appliances: refrigerator, air conditioner, induction cooker, microwave ovens.

3. Instruments: clinical thermometer, wire tester, digital watches, electronic weight scale.

4. Medical Devices: sphygmomanometer, ECG machine

5. Sports Equipment: Running machine.

6. Industrial Control Equipment: remote control, punched-card machine.

7. Information Terminal Display: POS, PDA, Handheld devices.
