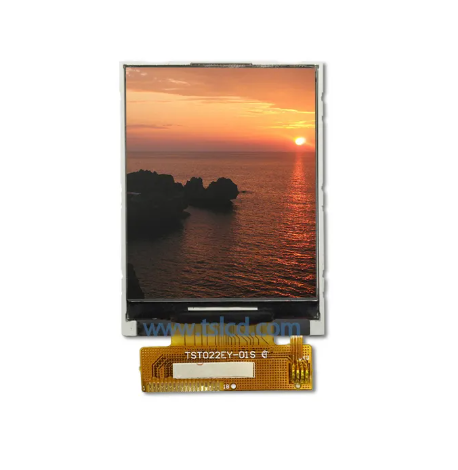

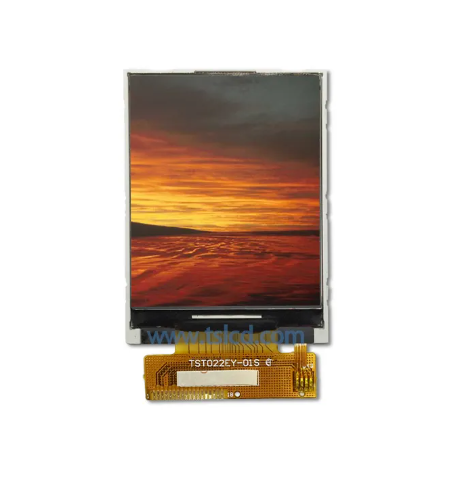

TSD 2.2 Inch IPS TFT LCD 176*RGB*220 Resolution

LCD Type:TFT-color transmissive LCD

Resolution:176*RGB*220

View Direction: 12 o’clock

LCD driver IC:ILI9225G

Interface types: 4 wires spi

Weight: TBD

Operating temperature: -20℃~70℃

Storage temperature: -30℃~80℃

Description:

This display module is aTransmissive,Normally white,TN TFT liquid crystal display (LCD), This module is composed of a TFT LCD module, a driver circuit, and a back-light unit and without capacitive touch panel.The resolution of it is 176*RGB*220 and the driver ic is ILI9225G

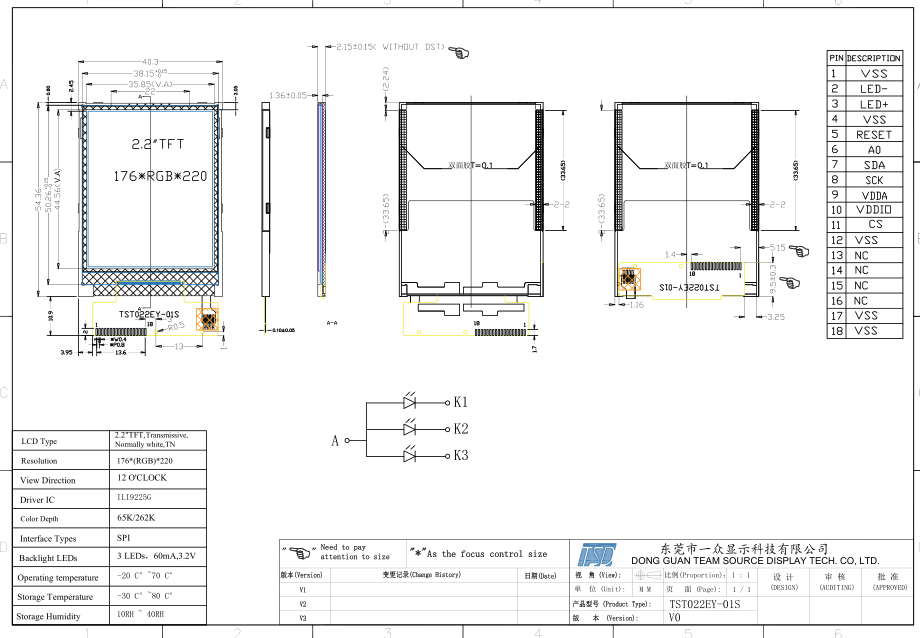

Drawing:



Specification

General Specification

Part No.

TST022EY-01S

Display Size(Diagonal)

2.2 inch

LCD type

Transmissive,Normally white,TN

Resolution

176 x (RGB) × 220

View Direction

12 o’clock

Module Outline

40.3W*55.26H*3.65T

Active Area

 34.85W*43.56H

Viewing Area

12 H

Backlight

White 3*LED

Interface

SPI interface

Driver IC

ILI9225G

Weight(g)

TBD

Power Consumption(w)

Panel

TBD(Typ.)

B/L system

TBD(Typ.)

Operating Temperature

-2060

Storage Temperature

-3070



Pins Description

Pin No.

Symbol

Description

1

VSS

Ground

2

LEDK

Catjode of led

3

LEDA

Anode

4

VSS

Ground

5

RESET

LCM reset pin

6

RS

Data and command Pin

7

SDA

SDA is serial data clock

8

VCC

Power supply 2.8V

9

IOVCC

Power supply1.8-2.8V

10

CS

Chip selecting pin

11

VSS

Ground

12

GND

System ground.

13

YD

Touch panel down side

14

XL

Touch panel left side

15

YU

Touch panel up side

16

XR

Touch panel right side

17

GND

Ground

18

GND

Ground





 Applications:



1. Office Electronic Equipment: money counting machine, office phone set, copying mechine.

2. Household Appliances: refrigerator, air conditioner, induction cooker, microwave ovens.

3. Instruments: clinical thermometer, wire tester, digital watches, electronic weight scale.

4. Medical Devices: sphygmomanometer, ECG machine

5. Sports Equipment: Running machine.

6. Industrial Control Equipment: remote control, punched-card machine.

7. Information Terminal Display: POS, PDA, Handheld devices.
