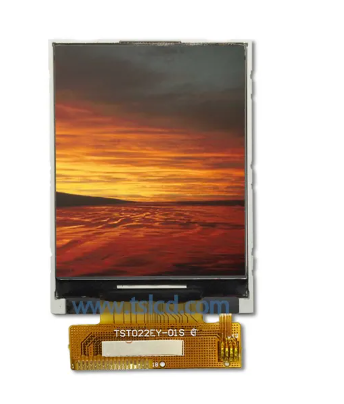

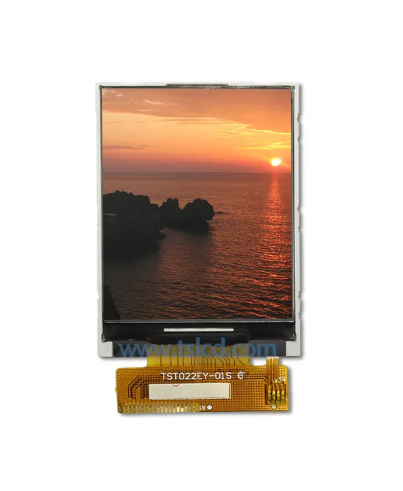

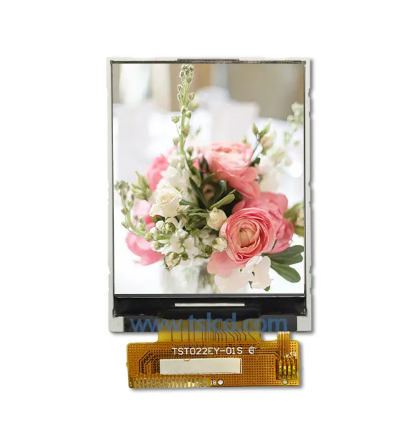

Description:
TST022EY-01S is a color active matrix TFT-LCD Panel using amorphous silicon TFT's as an active switching devices. this model is composed of a TFT-LCD Panel, a driving circuit and a back light system. It is a transmissive type display operating in the normal black. This TFT-LCD has a 40.3*55.26*3.6 mm diagonally measured active area with 176*220 resolutions.

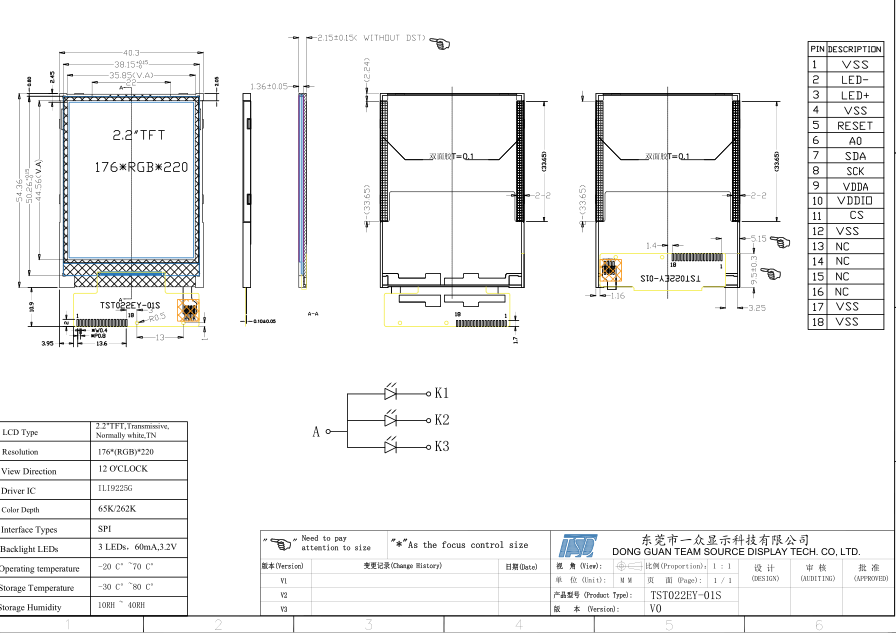

Drawing:
Specifications:
|
General Specification |
||
|
Part No. |
TST022EY-01S |
|
|
Outline Dimension(mm) |
40.3(W) x 55.26(H) x3.65(T) |
|
|
Active Area(mm) |
34.85 (H) x 43.56 (V) |
|
|
Resolution(dots) |
176x 220 |
|
|
Operating temperature(°C) |
-20 ~ +70°C |
|
|
Storage temperature(°C) |
-30 ~ +80°C |
|
|
Brightness |
250(typ) |
|
|
Touch panel |
No |
|
|
Pixel arrangement |
RGB-stripe |
|
|
Display mode |
Normally White |
|
|
Surface treatment |
Antiglare |
|
|
View direction |
12o’clock |
|
|
Weight(g) |
TBD |
|
|
Power Consumption(w) |
Panel |
TBD(Typ.) |
|
|
B/L system |
TBD(Typ.) |
|
Interface |
SPI |
|
|
Driver IC |
ILI9225g |
|
|
PIN |
|||
|
1 |
VSS |
Ground |
|
|
2 |
LEDK |
Cathode of LED |
|
|
3 |
LEDA |
Anode |
|
|
4 |
VSS |
Ground |
|
|
5 |
RESET |
LCM reset PIN |
|
|
6 |
RS |
Data and command Pin |
|
|
7 |
SDA |
SDA is serial data |
|
|
8 |
SCK |
SCL is the serial data check |
|
|
9 |
VCC |
Power supply |
|
|
10 |
IOVCC |
Power supply |
|
|
11 |
CS |
Chip selecting pin |
|
|
12 |
VSS |
Ground |
|
|
13 |
YD |
Touch panel down side |
|
|
14 |
XL |
Touch panel left side |
|
|
15 |
YU |
Touch panel up side |
|
|
16 |
XR |
Touch panel right side |
|
|
17 |
GND |
Ground | |
|
18 |
GND |
Ground |
|
