TSD 800x480 resolution 5 inch tft lcd display with SPI interface

  • Model Name: TST050WVBS-106
  • LCD Type: 5 inch TFT LCD display
  • Resolution: 800x480
  • Viewing angle: All o'clock
  • Brightness: 800~1000 cd/m2
  • Driver IC: LT7680A-R+ST7262
  • Interface: SPI
  • Touch Screen: without
  • Operating Temperature: -30 ~ +80℃
  • Storage Temperature: -30 ~ +80℃





Description:

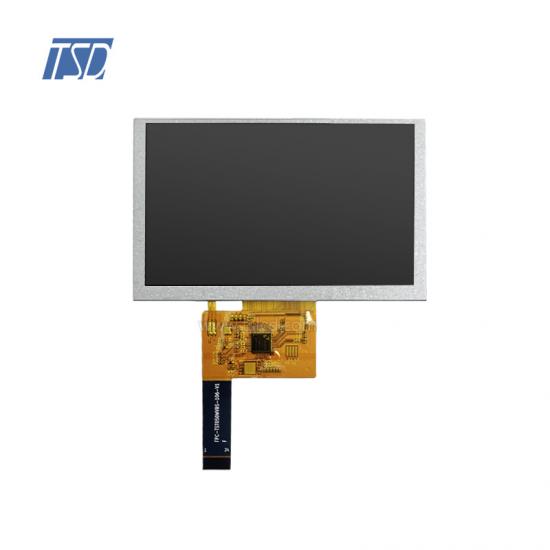

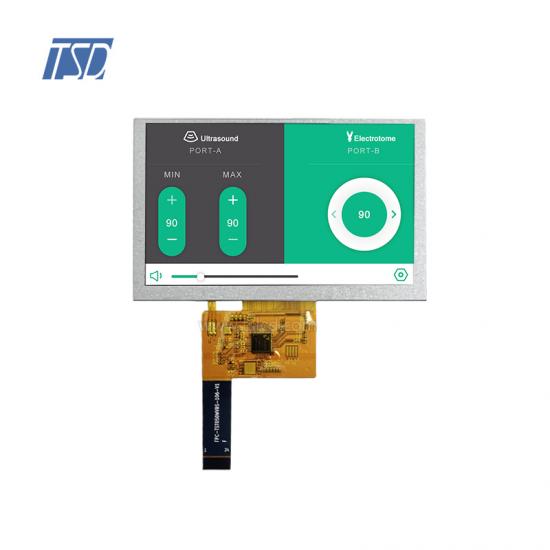

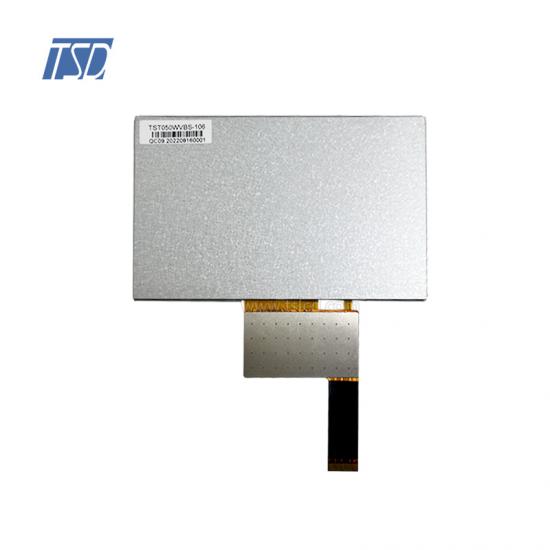

TST050WVBS-106 is 5 inch IPS TFT lcd display with SPI interface. Resolution is 800x480, LCD driver IC is LT7680A-R+ST7262. This 5 inch TFT is transmissive type, PIPS display with full viewing angle. Outline dimension of LCM is 120.7x75.8x2.95mm, LCD active area is 108x64.8mm. Surface luminance is 800~1000 cd/m2 high brightness, suitable for outdoor applications. LED life time is 30,000 hours typically.

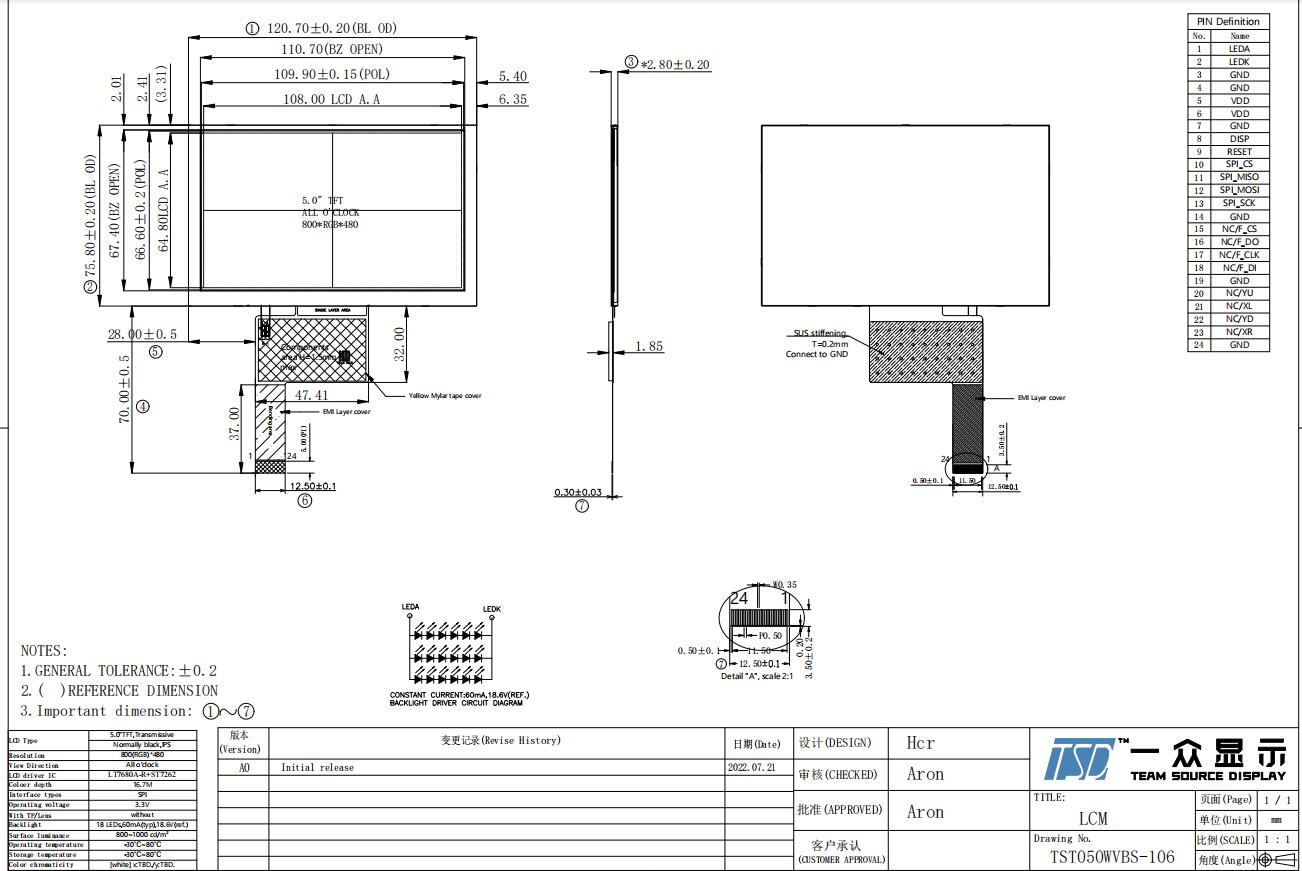

Drawing:



5 inch tft lcd


Specifications:



General Specification
Part No.  TST050WVBS-106
Outline Dimension(mm)  120.7x75.8x2.95
Active Area(mm) 108x64.8
Resolution(dots) 800x480
Operating temperature(°C) -30 ~ +80°C
Storage temperature(°C) -30 ~ +80°C
Number of Pixel(pixels) 800(H)xRGBx480(V)
Touch panel  without
Brightness 800~1000 cd/m2
Pixel arrangement RGB-stripe
Display mode Normal black,IPS, 5 inch TFT
Surface treatment Antiglare
View direction  All
Weight(g) TBD
Power Consumption(w) Panel TBD(Typ.)
B/L system TBD(Typ.)
Interface SPI
Module lifetime(Hours) 30,000-40,000





Pins Description
Pin No.  Symbol Description
1 LEDA Backlight A Anode input pin
2 LEDK Backlight K Cathode input pin
3 GND Power ground
4 GND Power ground
5 VDD Power supply +3.3V
6 VDD Power supply +3.3V
7 GND Power ground
8 DISP

Standby mode control.(Normally pull high).

DISP="L", enter standby mode for power saving.

Timing controller and source driver will turn off, all outputs are Hi-Z. DISP="H", normal operation.

9 L_RST Reset Signal lnput.This is a active low Reset pin for LT7680.
10 L_SPI_CS Chip select pin for 4-wire serial l/F of the LT7680
11 L_SPI_MISO Data output pin of 4-wire SPI I/F of the LT7680.Connect to MCU's
12 L_SPIMOSI Data input pin of 4-wire SPI I/F of the LT7680.Connect to MCU's
13 L_SPI_SCK SPI Clock input.Clock of 4-wire SPI F of the LT7680
14 GND Power ground
15 F_CS SPl Chip select pin for serial Flash device.(option)
16 F_DO Data output of serial Flash device.(option)
17 F_CLK Serial clock input for serial Flash device.(option)
18 F_DI Data input of serial Flash device.(option)
19 GND System ground
20 YU

The RTP pin (option). No connect

21 XL
22 YD
23 XR
24 GND System ground




Features:



4-wire SPI,support up to 50MHz transmit ;

Ø Embedded 128Mb Display RAM,Support Multiple Display Buffer;

Ø Embedded 8*16, 12*24, 16*32 Character Sets of ISO/IEC 8859-1/2/4/5,and User-defined Characters

Support Half Size & Full Size for 8*16, 12*24 and 16*32(Need External Serial Flash );

Ø Provide DMA Function: Support Direct Data Transfer from External Serial Flash to Frame Buffer;

Ø Provide Smart Drawing Features: Line, Rectangle, Triangle, Polygon, Poly-Line, Circle, Ellipse, Arc,

Rounded-Rectangle and Circle-Rectangle;

Ø Horizontal/Vertical Flip Display , Mirror and Rotation Functions are Available for Image Data Writes;

Ø Bit Block Transfer Engine (BTE);

Ø Other function please refer to LT768x Datasheet and Application Note.
